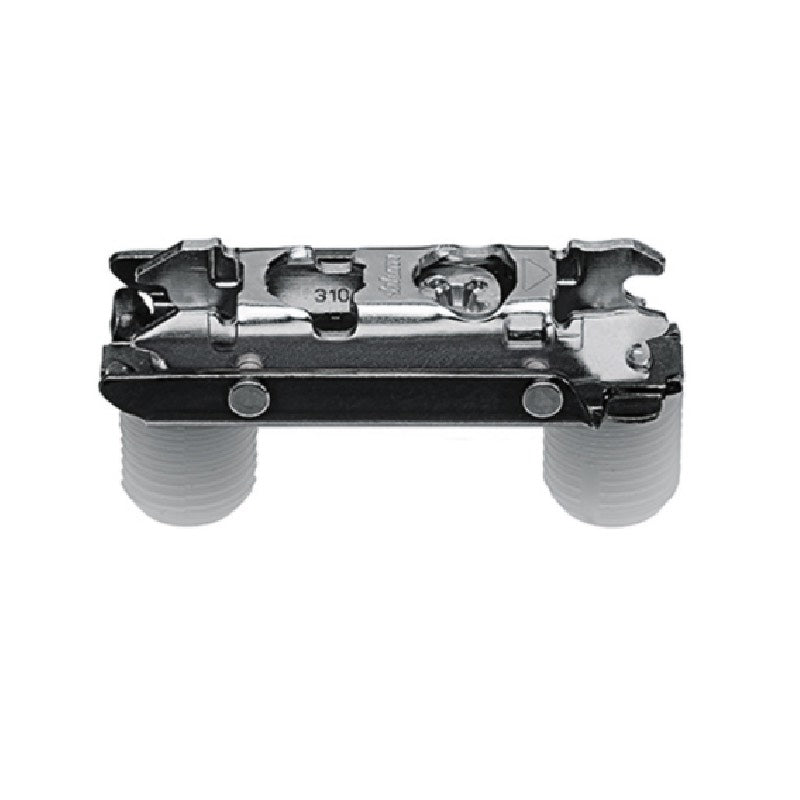

Blum Mounting Plate 177H3130 Onyx Black Knock-In 3mm Spacing

Blum Mounting Plate 177H3130 Onyx black Knock-In 3mm Spacing
Compatible hinge: CLIP top BLUMOTION / CLIP top / CLIP
Compatible lift: AVENTOS HK-S / AVENTOS HF (2 required per mechanism set)
Spacing: 3 mm for 15/16 mm cabinet side
Material: Steel
Finish: Onyx Black
Shape: Straight
Fixings: Knock-in (pre-fixed Ø10mm dowels)
Distance between fixing positions: 32 mm
Distance cabinet front edge to first fixing position: 20 mm
Mounting plates height adjustment: +/-2mm with Cam
Diameter of fixing holes: 10mm
Drilling depth of fixing holes: 11.5mm

Requires insertion ram or knock-in tool to apply pressure directly on the screw.
Cabinet front edge to first fixing position: 20mm
