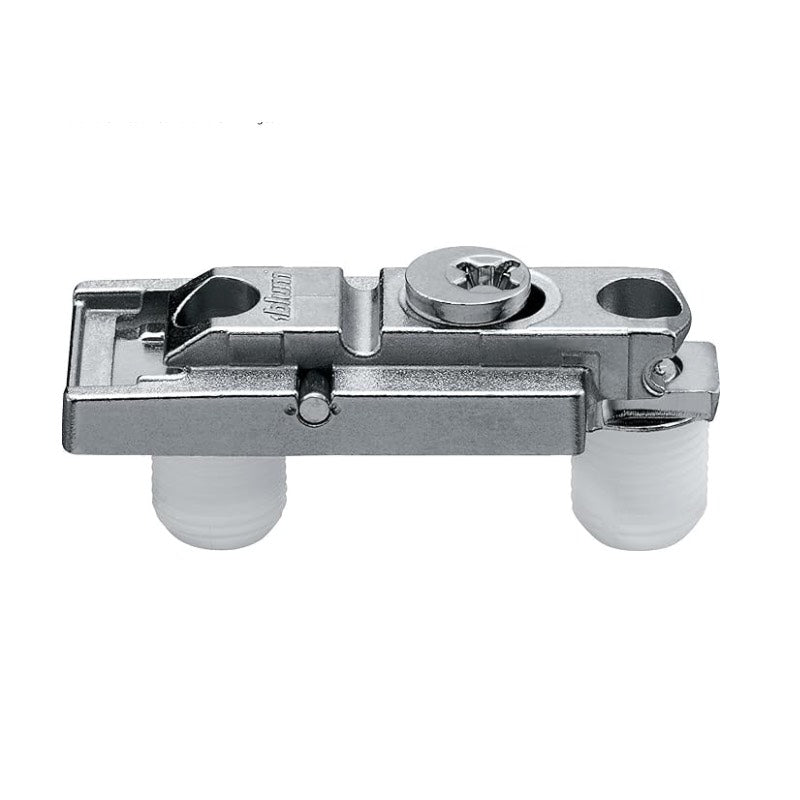

Blum Mounting Plate 177H5100 Knock-In 0mm Spacing Zinc

Blum Mounting Plate 177H5100 In-Line Knock-In 0mm Spacing Zinc
Compatible hinge: CLIP top BLUMOTION / CLIP top / CLIP
Spacing: 0 mm for 18mm cabinet side
Material: Zinc diecast
Finish: Nickel plated
Shape: Straight
Fixings: Knock-in (pre-fixed Ø10mm dowels)
Distance between fixing positions: 32 mm
Distance cabinet front edge to first fixing position: 20 mm
Mounting plates height adjustment: +/-2mm with Cam
Diameter of fixing holes: 10mm
Drilling depth of fixing holes: 11.5mm

Requires insertion ram or knock-in tool to apply pressure directly on the screw.
Cabinet front edge to first fixing position: 20mm
