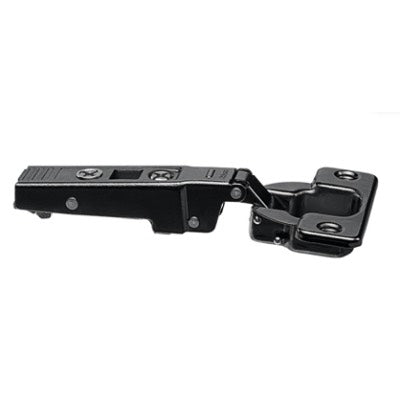

Blum 70T9550.TL Onyx Black UNSPRUNG 95° Full Overlay Profile Thick Door Hinge

Blum Onyx Black 70T9550.TL UNSPRUNG ClipTop Full Overlay Profile Thick Door Hinge 95°
These Blum hinges are designed for use with thicker doors up to 32mm.
Please note this hinge cannot be combined with soft close hinges on a door.
Door thickness: 16 to 32mm
Application: Overlay
Opening angle: 95°
Boss assembly: Screw-on
Required fixings: Chipboard screws Ø3.5 x 17mm
Hinge material: Steel
Finish: Onyx Black
Closing mechanism: Unsprung

Three-dimensional adjustment: +/-2mm side and +3/-2mm depth adjustment via spiral screw.
ClipTop hinges combined with Blum’s wide range of mounting plates offer height adjustment.
ClipTop mechanism removes the need to screw the hinge to the plate.
