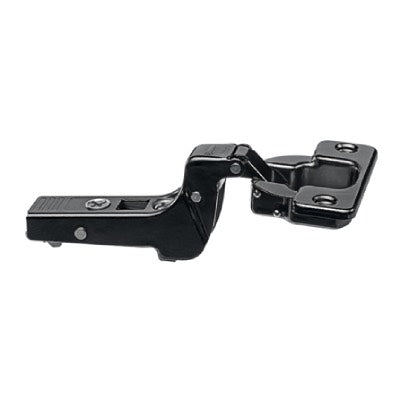

Blum 70T9750.TL Onyx Black UNSPRUNG 95° INSET Thick Door Hinge

Blum Onyx Black 70T9750.TL UNSPRUNG ClipTop INSET Profile Thick Door Hinge 95°
These Blum hinges are designed for use with thicker doors up to 32mm.
Please note this hinge cannot be combined with soft close hinges on a door.
Door thickness: 16 to 32mm
Application: Inset
Opening angle: 95°
Boss assembly: Screw-on
Required fixings: Chipboard screws Ø3.5 x 17mm
Hinge material: Steel
Finish: Onyx Black
Closing mechanism: Unsprung

Three-dim adjustment: +/-2mm side and +3/-2mm depth adjustment via spiral screw.
ClipTop hinges combined with Blum’s range of mounting plates offer height adjustment.
ClipTop mechanism removes the need to screw the hinge to the plate.
