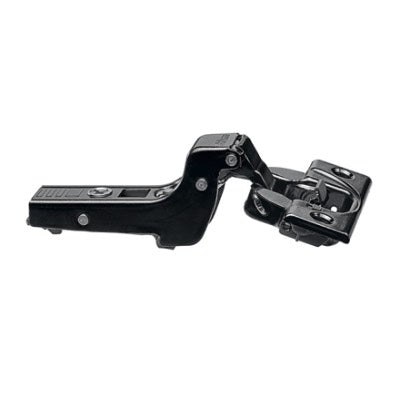

Blum 75B1750 Blumotion Onyx Black INSET Hinge 107° Thin Door

Blum Onyx Black Blumotion 75B1750 ClipTop INSET Hinge 107° Thin Door
The 107° ClipTop Blumotion hinge requires less drilling depth than usual, just 11.5mm.
This means the hinge is suitable for thin doors with a thickness of 15mm or more.
High quality of motion even with small/light furniture doors, the Blumotion function can be easily deactivated if required via a switch on the hinge boss.
Door thickness: 15 to 24mm
Application: Inset
Opening angle: 107°
Blumotion soft close built in
Boss type: Screw-on
Required fixings: Chipboard screws Ø3.5 x 15mm
Hinge Material: Steel
Finish: Onyx Black
Closing mechanism: With spring
Three-dimensional adjustment: +/-2mm side and +3/-2mm depth adjustment via spiral screw.
ClipTop hinges combined with Blum’s wide range of mounting plates offer height adjustment.
