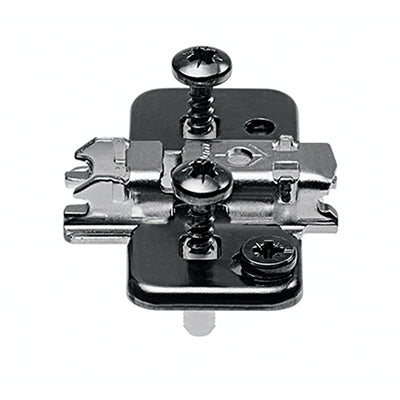

Blum Mounting Plate 174H7130E Onyx Black EXPANDO Cruciform 3mm Spacing

Blum Mounting Plate Clip, 174H7130E OB Onyx Black EXPANDO Cruciform, 3 mm
Compatible hinge: ClipTop Blumotion/ClipTop/CLIP
Shape of mounting plate: Cruciform
Spacing: 3mm for 15mm cabinet sides
Material: Steel
Finish: Onyx Black
Surface of bottom part: Nickel plated
Fixing: EXPANDO Ø5mm -pre-mounted screws with split dowels
Mounting plates height adjustment: With cam
Height adjustment: +/- 2mm

Installation:
Cabinet front edge to first fixing position: 37mm
Diameter of fixing holes: 5mm
Drilling depth of fixing holes: 11.5mm
