Blum Orion Grey LEGRABOX Drawer Set Pure C Height

Blum Orion Grey LEGRABOX Drawer Set Pure C Height.

The box system LEGRABOX Drawer Set Pure C-Height impresses with its clear, parallel drawer side design and accent lines as a central design element.
The drawer sides are straight (inside and outside) and impressively slim (just 12.8 mm), blending in beautifully with all items of furniture.
LEGRABOX performs outstandingly even when fully extended and heavily laden.
Thanks to Blumotion (soft-close), drawers close softly and effortlessly no matter how hard you slam them, irrespective of the weight they are carrying.
We recommend that the 70kg version is used on all cabinets greater than 600mm wide. Runners can be combine with SERVO-DRIVE or Tip-On
Easy to order LEGRABOX height C (177mm) drawer component kit, allow you to tailor the drawer width to suit the cabinetry.
An ideal solution for volume users, odd sized cabinets or framed kitchens.

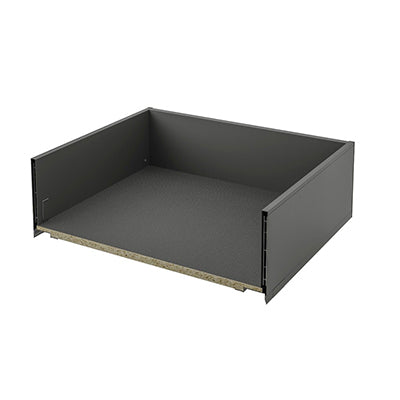

Blum Orion Grey LEGRABOX Drawer Set Pure C-Height
Components ONLY (No Base, Back & Front)
Available depth: 270mm, 350mm, 400mm, 450mm, 500mm, 550mm, 600mm, 650mm
Brand: Blum
Colour: Orion Grey
Design: LEGRABOX
Straight Interiors and Exteriors
Slim Drawer Side: 12.8 mm
Drawer Side Height: 177 mm
Installation Height: 193 mm
Internal Depth: NL +3mm
Nominal Length: 270 mm + 3mm
Fixing Method: Screw Fixing
Fixings Included
Soft Close: Yes
Guarantee: Lifetime
Max. Weight Capacity: 40kg
Runner: Blumotion 40kg

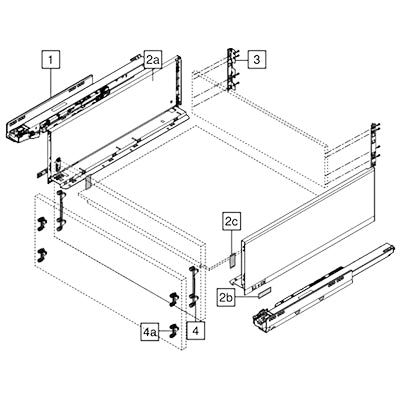

Kit Included: Blumotion runners (left&right), sides x2, screw fixing brackets-front and back
To help install, we have template available Blum ZML.0040.01 Drill Template for Aventos LEGRABOX & TANDEMBOX front Fixing
