Blum REVEGO Uno Pocket Connector for Plinth Application

Blum REVEGO Uno Pocket Connector for Plinth Application

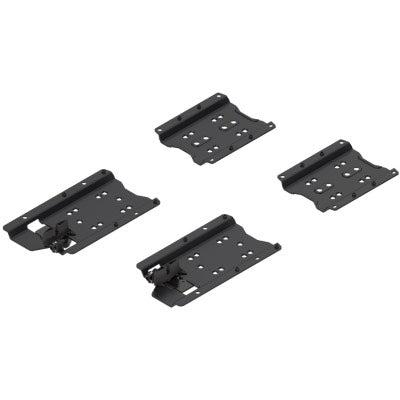

801V505B REVEGO Uno pocket connector set for applications with plinth.
Blum REVEGO is the ultimate pocket door solution for modern interiors, offering space-saving functionality and sleek design without the need for a floor track. Design to be fitted directly on plinth.
Pocket side thickness 15 to 19mm.
Type: Pocket connector
Version: With plinth
Pocket side thickness: 15 to 19mm
Material: Steel
Colour / finish: Black
Fixing method: Screw-on
Item package: Set

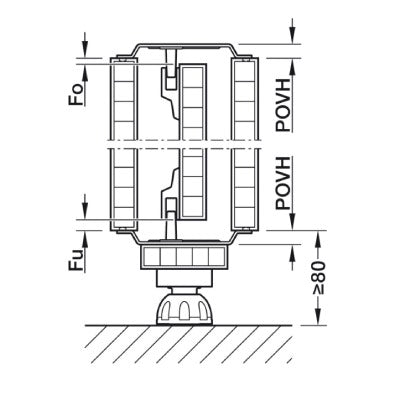

Pocket connector top and bottom: POVH 10 mm for 0 - 6 mm gap.

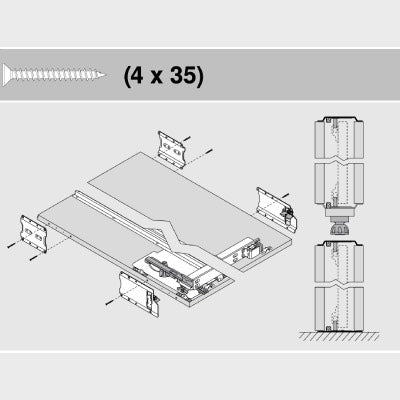

Assembly:
You will need a CNC machine or MINIPRESS top with EASYSTICK from Blum to machine the wooden parts.
Please note that both horizontal drillings and a track cut-out will be needed
Blum recommend using the drilling template for REVEGO pocket connectors for the horizontal drillings

All system is available to get:
REVEGO Uno Pocket Profiles, and REVEGO Uno Hinge bracket set.
Once planning has been design, you will receive CNC template and CAD data for drilling and cutting.
From design to delivery will need to allow around 6 week (components will have to come from Austria)
