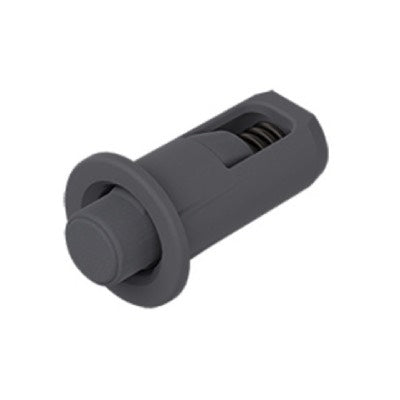

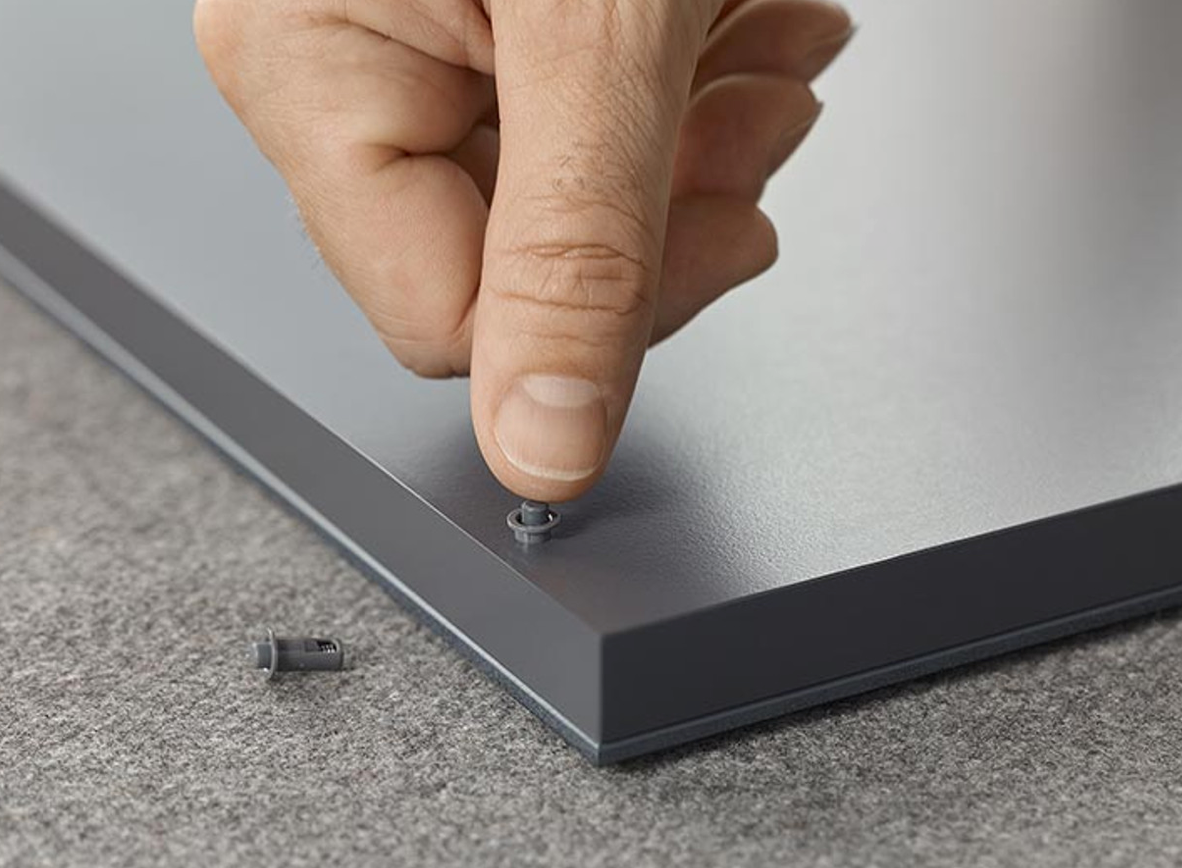

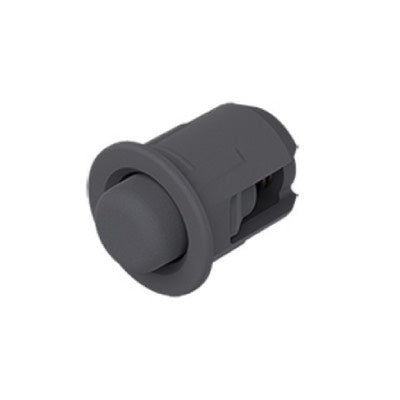

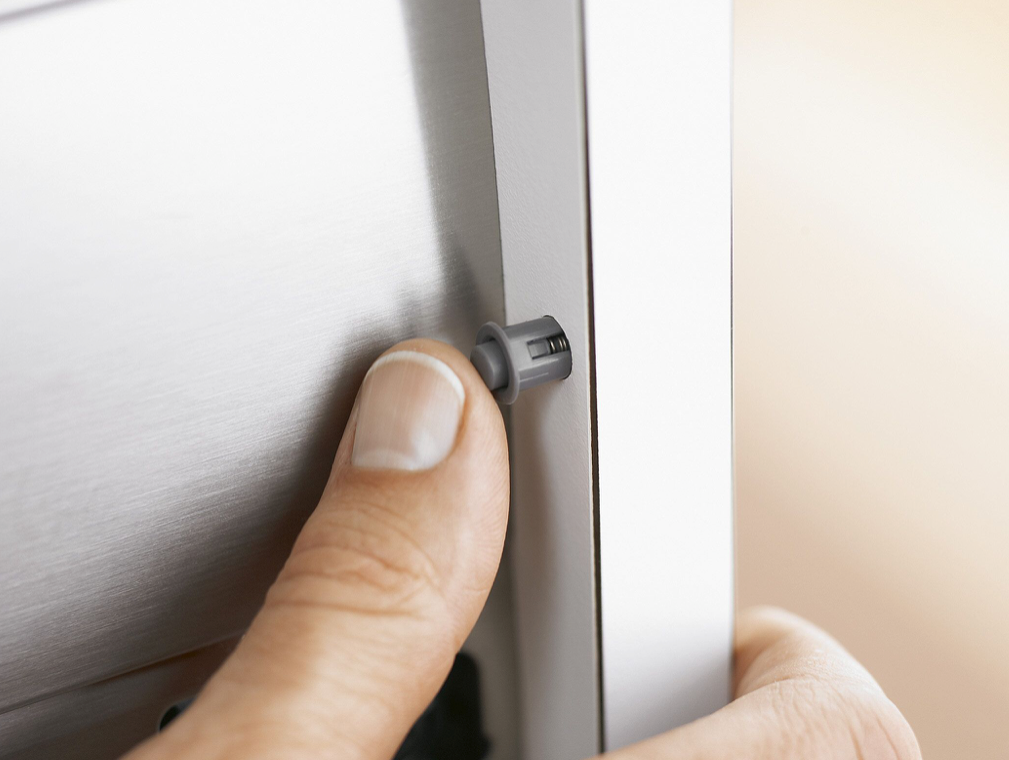

Distance bumper is used to create the necessary 2.6mm frontal/cabinet gap required to trigger the drive unit. Must be used in combination with Servo-Drive for pull-outs units. Material: Nylon Colour / finish: RAL 7037 dust grey Damping device fixing: Drilling Shape of buffer: Cylindrical Overall length (incl. head): -5mm: Length:10.6mm, Dia: 3.6mm, Drilling: 5mm -8mm: Length:12.1mm, Dia: 5.5mm, Drilling: 8mm Head shape: Cheese head Fixing Method: Push Fit Installation: the distance bumper is inserted into a Ø5mm/8mm hole.
