Blum SERVO-DRIVE Flex for Fridge Freezers and Dishwashers Z10C500A

Blum SERVO-DRIVE Flex for Fridge & Freezers & Dishwashers Z110C500A
SERVO-DRIVE Flex by Blum is perfect for use with built-in fridge/freezers and dishwashers.
No qualified electrician is required as the system is a plug & play module.
Built-in features include automatic self-closing & lean protection.
Large or heavy doors will require two synchronised servo units to be purchased & used.

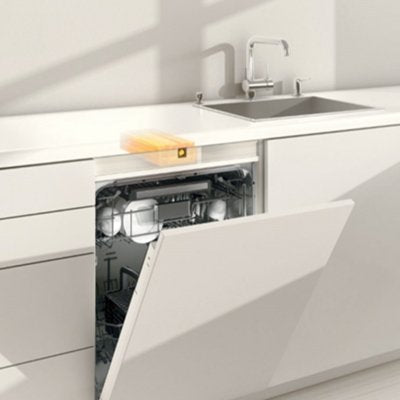

For dishwashers space will be required above, the drive needs to be fitted in the centre of the recess.
An additional plate Z10C5005 will also need to be purchased.
A driver Z10NA30BAF is NOT Included in pack-need to be purchase separatly
A Wireless Receiver is NOT Included in pack- can be purchase separatly
Width 130mm
Depth 279mm
Cable length 1000mm
Input power 24W
Min installation height 60mm
Fixing: Clip to mounting plate

THIS PACK is SUITABLE for ONE Application only.

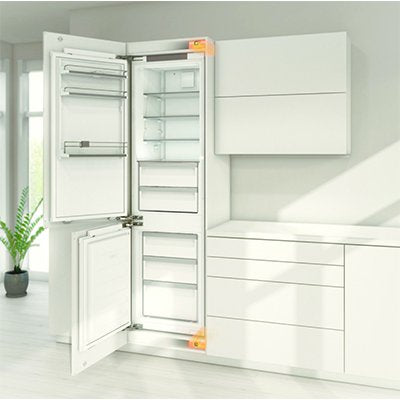

You will require TWO Sets for tall units with fridge freezers

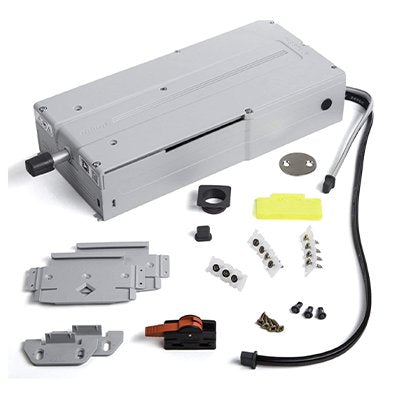

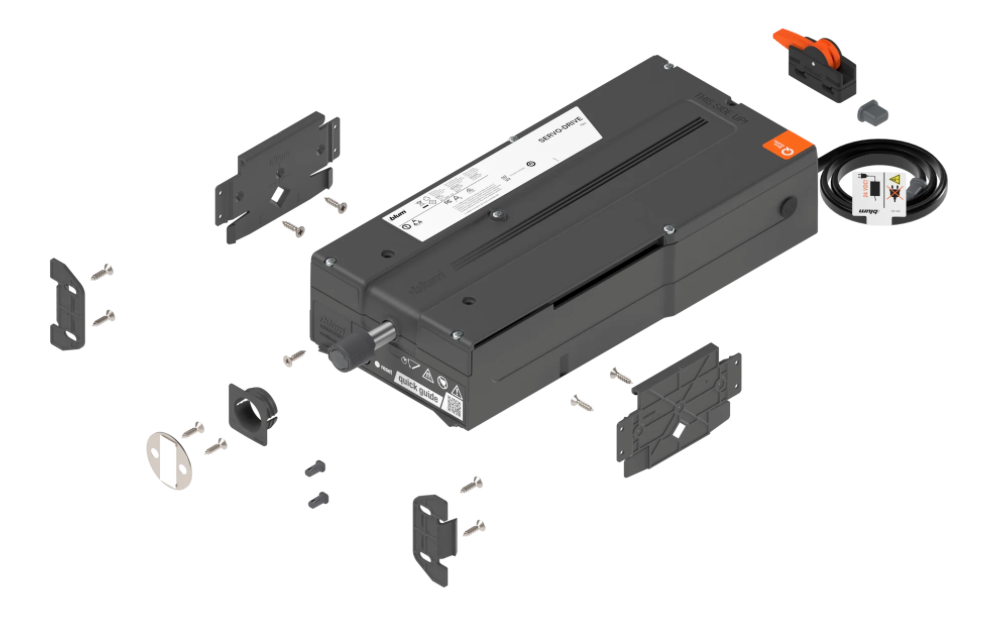

Included in pack:
1 x Drive unit,
2 x mounting plates,
2 x front fixings,
1 x front cover,
1 x catch plate,
3 x Blum distance bumper,
1 x connecting node,
11 x chipboard screws,
1 x assembly jig
