Blum Space Step Set

Blum Z95.4100/Z95.4600 Space Step Set

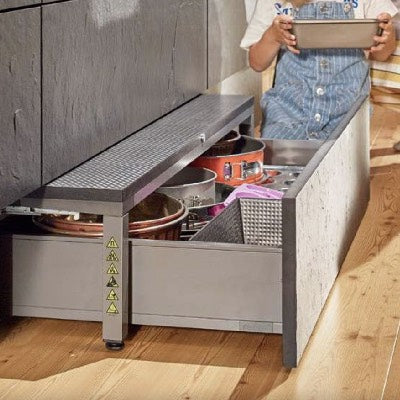

New storage options with the Blum SPACE STEP.
Access high cupboards and increase your storage by utilising the plinth space

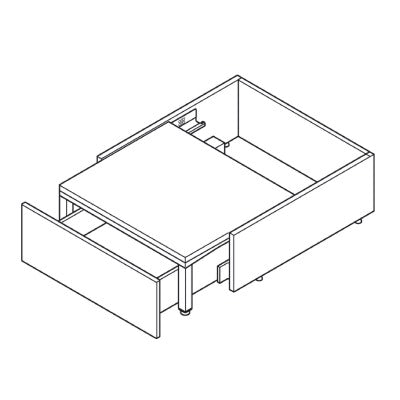

SPACE STEP combines a step platform and a drawer-to be bought separately.
The platform lowers when a weight of 8kg or more is applied, securely locking the step in position.
SPACE STEP can be combined with SERVO-DRIVE or Tip-On Blumotion.

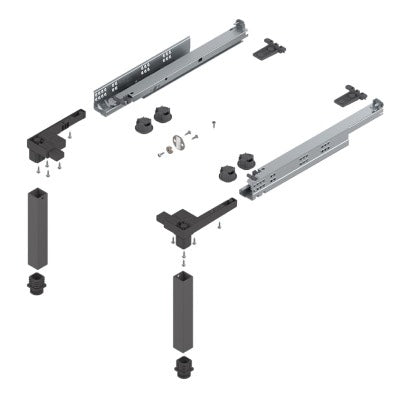

Set includes:
1 x TANDEM plus 561H Hook/Peg runners left/right
2 x Vertical supports
2 x Corner connectors
4 x Support feet
2 x Rear panel brackets
1 x Front connector (magnet and catch plate)
4 x Distance bumpers
2 x Stickers (safety information and manufacturer sticker)
14 x Flat headed screws Ø4 x 15mm
1 x Installation instructions
*Please note: LEGRABOX or TANDEMBOX drawer to be purchased separately

Material: Steel/nylon
Colour/finish: Orion grey
Size Side Runners Available: 410mm or 460mm
Installation height: 250mm

Installation:
Maximum load bearing capacity is 150kg, provided the recommended construction is used. SPACE STEP can be used for step heights of 150 to 250mm and is suitable for cabinet widths of 400 to 1200mm. Suitable for recessed plinths, recessed low plinths or flush plinths. The pull-out drawer underneath the SPACE STEP may only use 30 or 40kg runners, giving a dynamic carrying capacity of 20kg.
