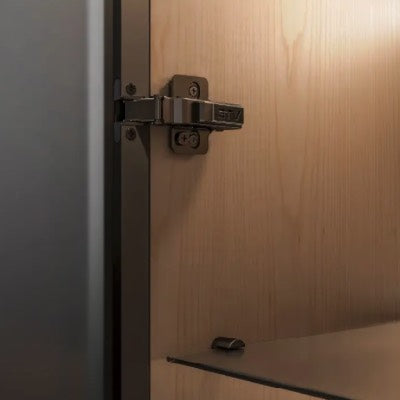

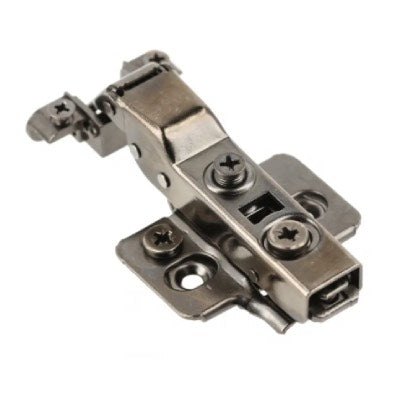

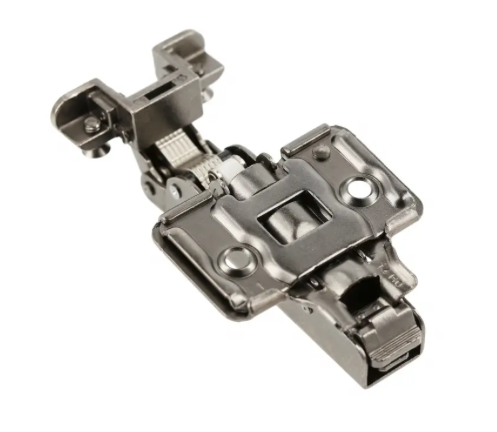

Cabinet Hinge Silence Soft Close 100° Black Half Overlay Aluminium Frame

Cabinet Hinge Silence Soft Close 100° Black Half Overlay Aluminium Frame.

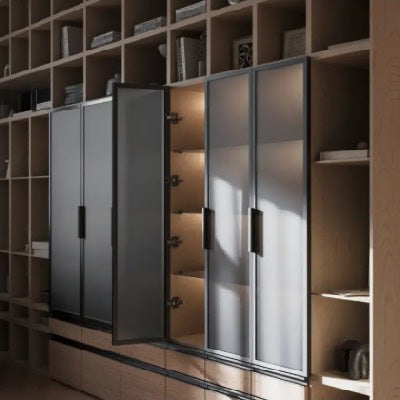

The hinge from the Silento PRO family is characterised by an extraordinary strength of 80,000 cycles. Ideal hinge for aluminium frames and narrow frames.
New soft-closing mechanism - operation from the minimum opening of the front two-way - hinge action that protects adjacent furniture and wall.
Built-in silent close function ensures quiet and safe operation.
It has an idle movement, also known as a two-way function - a feature that improves work ergonomics, limits sudden opening, and prevents the front. from potentially hitting an adjacent open front or wall.
Brand: GTV SilentoPro
Application: Half / Dual Overlay
Finish: Black Nickel Plated
Material: Steel
Opening angle: 100 Degree
Mounting Plate: 0mm Spacing cruciform for wood screws
Cup size: 35mm
Blumotion device: Integrated
Design for wood screws 4.0 x 15/16 mm-not included Hinge Screws
Depth Adjustment: +1.5mm / -1.5mm with spiral screw
Side Adjustment: +/- 2mm
Three-dimensional adjustment: +/-2mm side and +1.5/-1.5mm depth adjustment via spiral screw.
Pack Include: hinge, mounting plate, hinge arm cup with GTV logo and boss cup.
