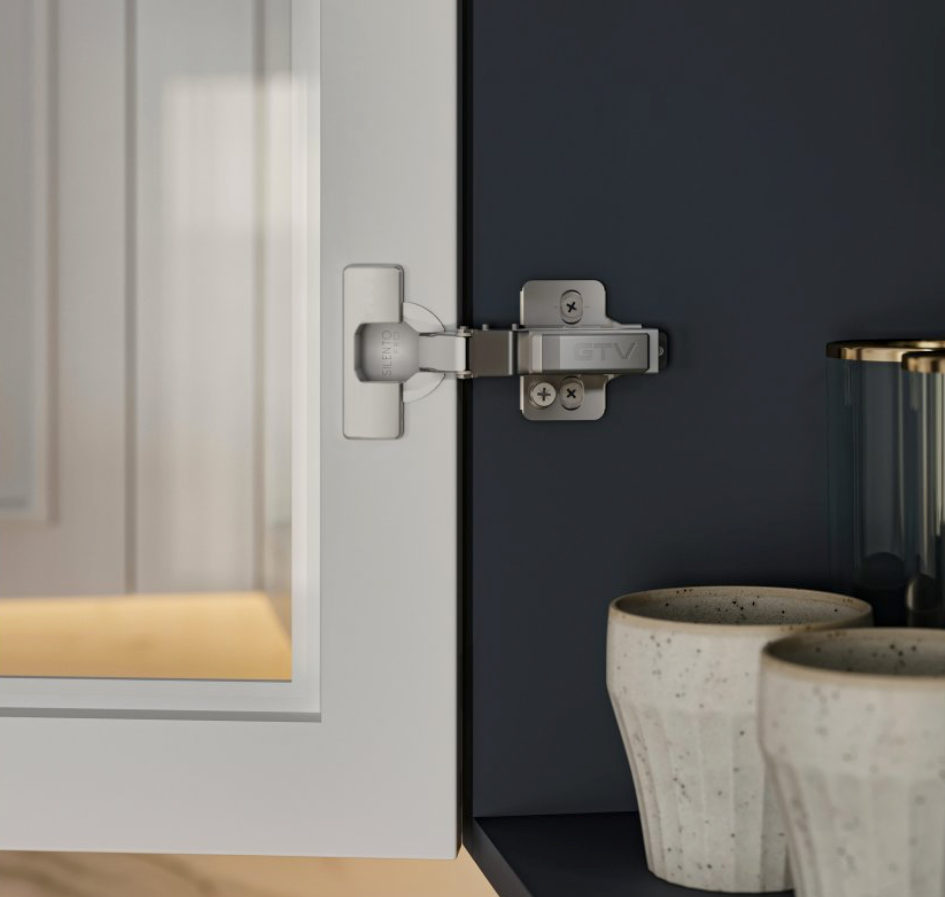

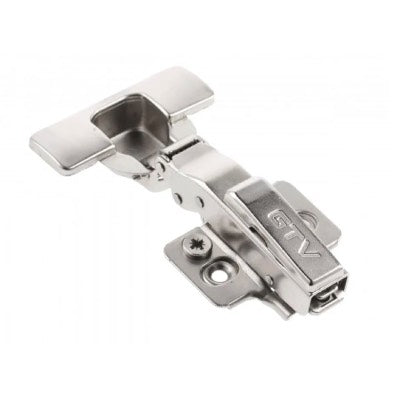

Cabinet Hinge Silence Soft Close 100° Full Overlay

Cabinet Hinge Silence Soft Close 100° Full Overlay.

The hinge from the Silento PRO family is characterized by an extraordinary strength of 80,000 cycles.
Hinge Silence Soft-Close 100° Overlay.
New soft-closing mechanism - operation from the minimum opening of the front two-way - hinge action that protects adjacent furniture and wall.
Built-in silent close function ensures quiet and safe operation.
Clip-on guide - possibility to configure the hinge according to own needs.
It has an idle movement, also known as a two-way function - a feature that improves work ergonomics, limits sudden opening, and prevents the front. from potentially hitting an adjacent open front or wall.
The soft close mechanism activates already from low values of the front opening angle.

Furthermore, with two stage soft closing and very silent operation it is competitor to Blum brands
Brand: GTV SilentoPro
Application: Full Overlay
Finish: Nickel Plated
Material: Steel
Opening angle: 100 Degree
Mounting Plate: 0mm Spacing cruciform
Cup size: 35mm
Blumotion device: Integrated
Design for wood screws 4.0 x 15/16 mm-not included Hinge Screws
Depth Adjustment: +1.5mm / -1.5mm with spiral screw
Side Adjustment: +/- 2mm
Three-dimensional adjustment: +/-2mm side and +1.5/-1.5mm depth adjustment via spiral screw.
Pack Include: hinge silence soft-close 100° overlay , cruciform mounting plate and hinge arm cup with GTV logo and boss cup.

GTV brochure Leaflet_Silento-PRO_w_EN.pdf
