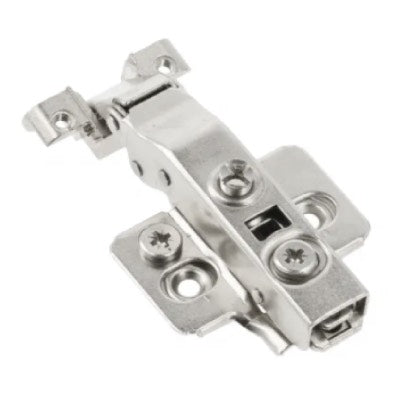

Cabinet Hinge Silence Soft Close 100° Full Overlay Aluminium Frame

Cabinet Hinge Silence Soft Close 100° Full Overlay Aluminium Frame.

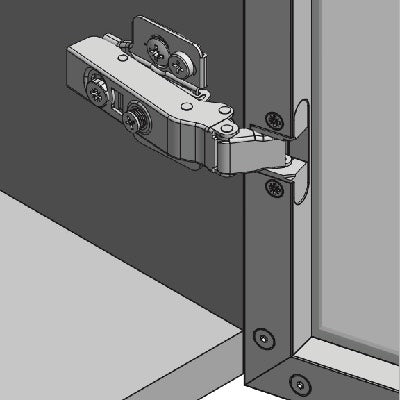

The hinge from the Silento PRO family is characterised by an extraordinary strength of 80,000 cycles. Ideal hinge for aluminium and narrow frames.
New soft-closing mechanism - operation from the minimum opening of the front two-way - hinge action that protects adjacent furniture and wall.
Built-in silent close function ensures quiet and safe operation.
It has an idle movement, also known as a two-way function - a feature that improves work ergonomics, limits sudden opening, and prevents the front from potentially hitting an adjacent open front or wall.
Brand: GTV SilentoPro
Application: Full Overlay
Finish: Nickel Plated
Material: Steel

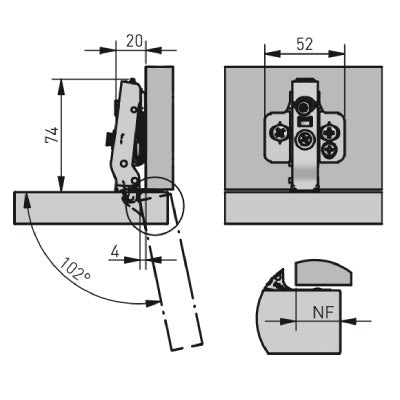

Opening angle: 100 Degree
Mounting Plate: 0mm Spacing cruciform for wood screws
Cup size: 28mm
Blumotion device: Integrated
Design for wood screws 4.0 x 15/16 mm-not included Hinge Screws
Three-dimensional adjustment: +/-2mm side and +1.5/-1.5mm depth adjustment via spiral screw.

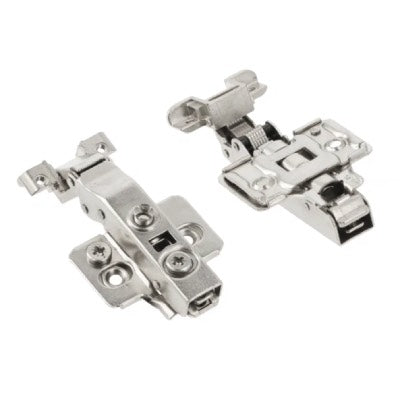

Pack Include: hinge, mounting plate, hinge arm cup with GTV logo and boss cup.
