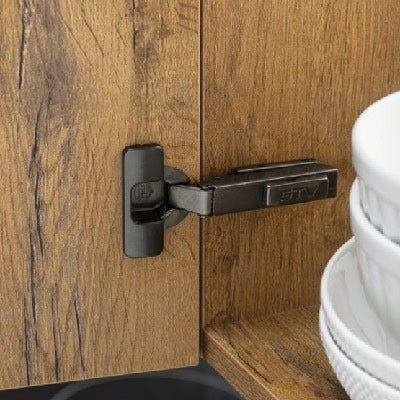

Cabinet Hinge Soft Close 100° Black Full Overlay

Cabinet Hinge Soft Close 100° Black Full Overlay GTV.

This hinge is characterised by high durability, as it has been certified for 80,000 cycles.
The hinge soft-close 100° black overlay is made of high quality material, and the use of a clip-on allows it to be mounted efficiently and conveniently.
Moreover, it can be adjusted in three places: the side, height, and depth, which can be set thanks to eccentric adjustment.
Additionally, trouble-free and trouble-free operation is guaranteed by the silent closing technology.
Furthermore, the hinge looks attractive thanks to the arm cap and hing cup included in the set
The silent closing device used in the hinge detects the closing of the door and silently closes the front to the furniture body.
ClipTop Soft Close triple advantage: Easy side, height and infinitely variable depth adjustment with spiral screw.
Finally, solid, but not expensive competitor to Blum or other similar brands
Finish is in metallic black, lighter shade of black.
Brand: GTV
Application: Full Overlay
Finish: Metallic Black
Material: Steel

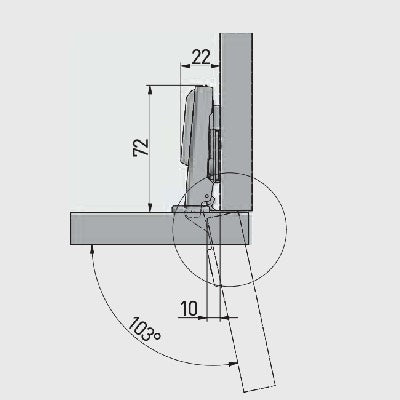

Opening angle: 100 Degree
Mounting Plate: 0mm Spacing inline
Cup size: 35mm
Blumotion device: Integrated
Design for wood screws 4.0 x 15/16 mm-not included Hinge Screws
Depth Adjustment: +1.5mm / -1.5mm with spiral screw
Side Adjustment: +/- 2mm
Three-dimensional adjustment: +/-2mm side and +1.5/-1.5mm depth adjustment via spiral screw.

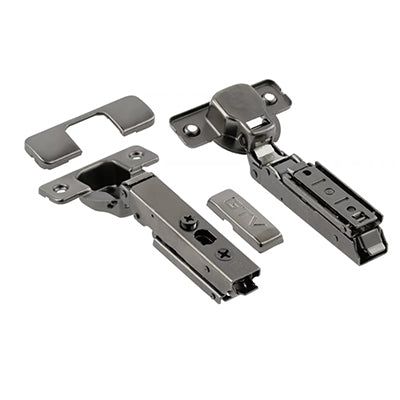

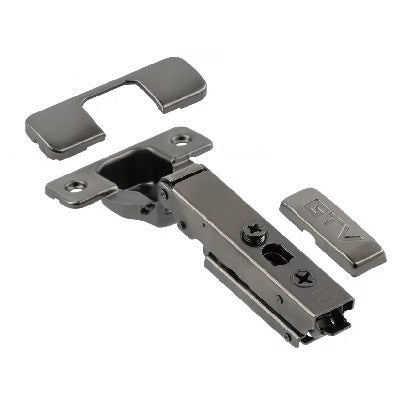

Pack Include: hinge, inline mounting plate, hinge arm cup with GTV logo and boss cup
GTV info on hinges GTV DCHC Hinge
