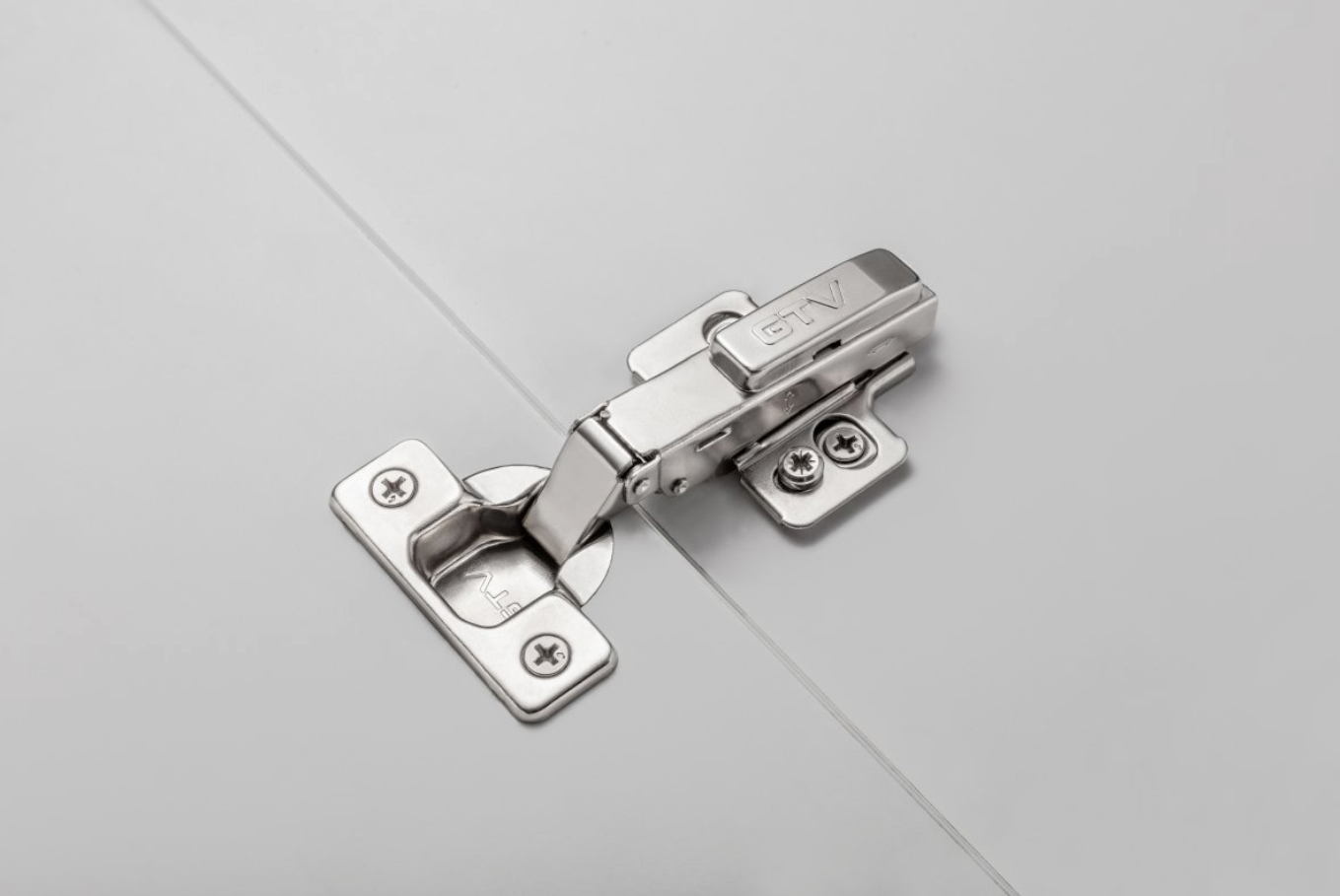

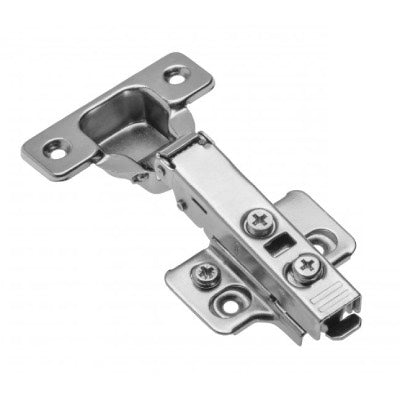

Cabinet Hinge Soft Close 100° Full Overlay
Cabinet Hinge Soft Close 100° Full Overlay
Cabinet Hinge Soft Close 100° Full Overlay GTV.
The soft close hinge is characterised by high durability, as it has been certified for 80,000 cycles.
The hinge soft-close 100° overlay is made of high quality material, and the use of a clip-on chain allows it to be mounted efficiently and conveniently.
The silent closing device used in the hinge detects the closing of the door and silently closes the front to the furniture body.
ClipTop Soft Close triple advantage: Easy side, height and infinitely variable depth adjustment with spiral screw.
Furthermore, solid, but not expensive competitor to Blum or other similar brands
Brand: GTV
Application: Full Overlay
Finish: Nickel Plated
Material: Steel

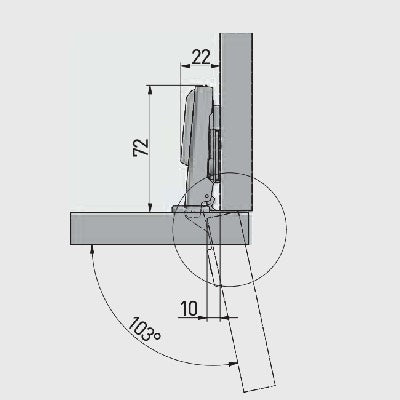

Opening angle: 100 Degree
Mounting Plate: 0mm Spacing cruciform
Cup size: 35mm
Blumotion device: Integrated
Design for wood screws 4.0 x 15/16 mm-not included Hinge Screws
Depth Adjustment: +1.5mm / -1.5mm with spiral screw
Side Adjustment: +/- 2mm
Three-dimensional adjustment: +/-2mm side and +1.5/-1.5mm depth adjustment via spiral screw.
Pack Include: hinge, cruciform mounting plate and hinge arm cup with GTV logo
GTV info on hinges GTV DCHC Hinge
