Cabinet Pocket Pivot Sliding Door Gear Accuride 1319

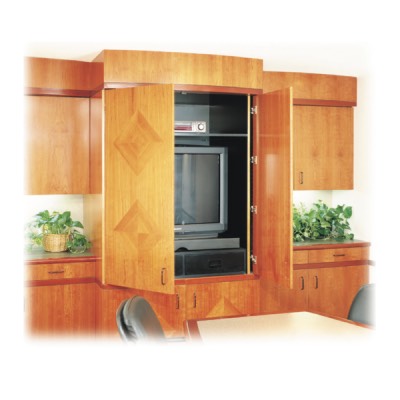

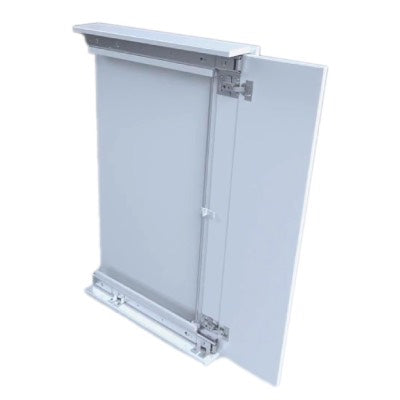

Pocket Pivot-Sliding Runners Accuride-1319 simple & effective Pivot Sliding Door Gear. It helps to free up space taken by The Traditional Hinged Door by retracting back into the cabinet carcass or pocket. Suitable for vertical or horizontal use Maximum allowed door weight: 5.5kg (up to 25kg if used with 1316 Cabinet Pocket Pivot Door Synchronised Mechanism Accuride 1316-order separately) Maximum door height: 700mm (door height up to 2300mm with 1316 synchronisation kit-order separately) Recommended door width: 600mm Door thickness: 16-20mm Material: Steel Make sure the cabinet is deep enough to accommodate the runner installation length. Inset doors: You will need to allow space for the door inside the cabinet, the calculation is: Cabinet depth - door thickness - 3mm clearance = runner length (or shorter) A hinge carrier strip is not supplied and must be made from wood or MDF The door will hide inside the cabinet as much as indicated by 'extended length'. Please make sure the cabinet is deep enough to accommodate the slider 'length'.

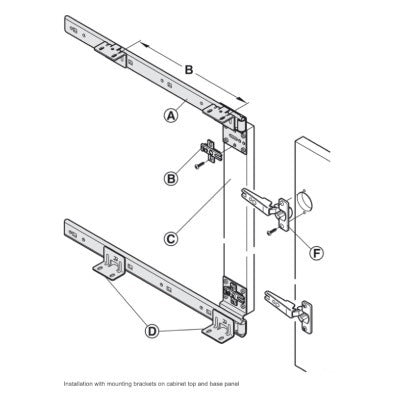

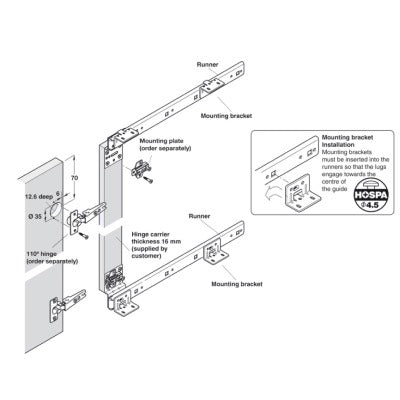

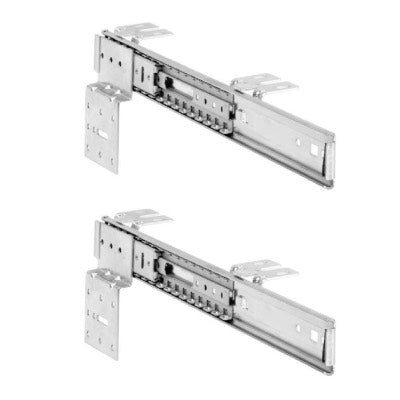

Pocket Pivot-Sliding Runners Accuride-1319 Set consists of: 4x zink plated mounting brackets 2x zink-plated runners Hinges required per door height: Door below 915mm = 2/3 hinges depending on width 915-1193mm = 3 hinges 1194-1498mm = 4 hinges 1499-1803mm = 5 hinges 1803-2300mm = 6 hinges Hinges and plates need to be ordered separately - available as below: Blum Clip Hinge Mounting Plate Blum Mounting Plate 175H7100 Blum ClipTop Full Overlay Cabinet Hinge Blum 75T1550 Sprung Hinge 107°
