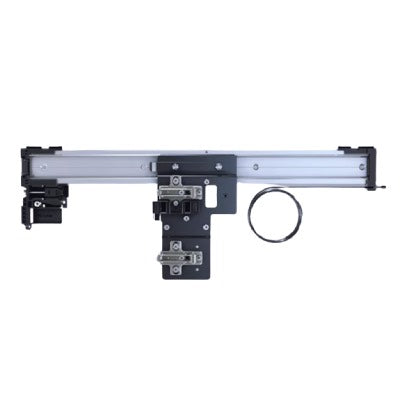

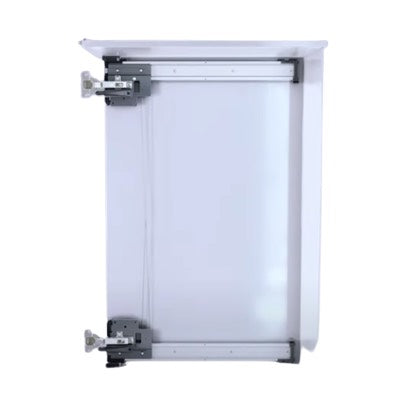

Cabinet Pocket Pivot Sliding Door Heavy Duty Accuride 1532

Cabinet Pocket Pivot Sliding Door Heavy Duty Accuride 1532
The DA1532 pocket door sliding system is designed for heavy doors of up to 45kg.
The slide can be cut to length and is quick to install, saving fitters both time and money.
Suitable for large wardrobe doors and room dividers of up to 3m high and 1m wide (or 1m cabinet depth) within residential, retail, and industrial environments.
Suitable for both inset and partially overlay doors, the DA1532 pocket door slide has been designed for fitters who want a high-quality pocket door slide which is easy to install.
The DA1532 pocket door slide is quicker to install compared to other similar pocket door slides on the market due to there being fewer components and a simplified cable alignment. This therefore saves the fitter money by allowing them to complete the installation quickly and then move on to the next job.
The integrated soft close hinge mechanism helps to reduce the impact and noise of the door closing, providing a quieter and more comfortable living space.The DA1532 slide system is configured based on the size of the door.
Material: Aluminium

To find out which combination is suitable for your application, simply enter the cabinet depth, door height, door thickness and the fit of the door (inset(SI or TI) or partial overlay PO) and send us an email info@fixfit.co.uk
Than will be able to suggest the appropriate DA1532 kit for your application.
Available Options:
Cabinet Depth: 0065-650mm, 0070-700mm, 0075-750mm 0085-850mm, 0090-900mm, 0100-1000mm
Door Height: P1-400-600mm, P2-600-1200mm, P3-1200-1800mm, P4-1800-3000mm
Door Thickness: PO <19mm, SI 19-20.6mm, TI 20.6-31.8mm

Listed to purchase is a basic pack for:
Cabinet Depth: 650mm
Door Height: 400-600mm
Door Thickness: PO<19mm

Pocket door pack DA1532-0065-P1-SI containing:
1 pair of slide - Pocket door slide for large doors DA1532-0065-2. (1 top and 1 bottom slide)
1 Hinge - Hinge Kit 35mm 81020690-A for Inset Doors.
1 Damper - 40202610.
1 Damper bracket - 40202710.
Suitable for a maximum door height of 400-600mm.


FOR OTHER SIZES PLEASE EMAIL US
