Cam Fixing Connecting Bolt Dowel 40mm for Flat Packed Furniture

Cam Fixing Connecting Bolt Dowels 40mm for Flat Packed Furniture

Cam Fixing Connecting Bolts 40mm for Fixings Locks and Cam Dowels
High Quality and Hard Wearing Fixings for Flat Packed Furniture
Cam Locks are used to fix panels and frames in flat-packed furniture, in conjunction with Cam housing.
Furthermore, you can use them to leave a hidden fixing by pulling together boards & panels.

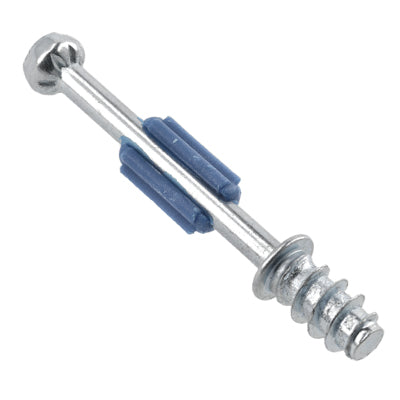

Cam fixing connecting bolts 40mm with Ø 6.0 mm bolt head and swiveling sleeve, ring on bolt shaft holds plastic sleeve in place

The thread is neat and clear, has a strong fastening effect and stable connection.
With harpoon-type thread are for screw-in installation in Ø 6 mm pre-drilled holes
Especially for fast installation, just put in the integrated connecting rod and turn the connecting rod.
Steel with blue plastic sleeve
In addition, they are suitable for 16mm board
Thread Special: thread
Thread length: 8.00 mm
Overall length: 40mm
For drill hole: Ø6.00 mm
Area of application: For Ø 6 mm pre-drilled holes
Material: Plastic, Steel
Drive: PZ2 cross slot
Installation: Screw fixing

Order reference: Selling as single unit
Order Minifix housings separately Locking Cam Housing Connector 15mm x 12mm Minifix

Warranty/guarantee information
In fact, all products are covered under Guarantee, they have met our standards and have been tested to the relevant industry certification.
Our standard 12-month guarantee covers cam bolts.
