Ceam 3D Cabinet Concealed Adjustable Hinges 929
Ceam 3D Cabinet Concealed Adjustable Hinges 929
Couldn't load pickup availability
CEAM 3D Concealed Cabinet Door Hinge 929 Adjustable 12-21 kg
Concealed medium duty hinge for unrebated and rebated flush-faced timber doors
Fixings fully concealed and suitable for wardrobe & cabinet doors up to 21kg.
Suitable for cabinet carcasses & doors from 18mm thick and works with Inset or lay-on cabinet doors.

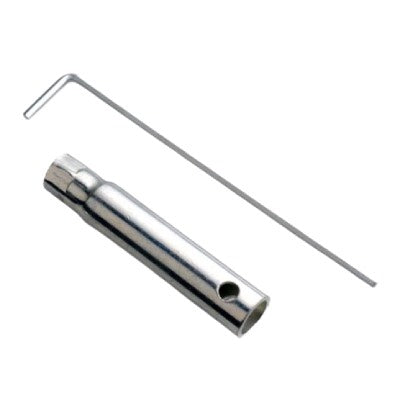

Simple adjustment on 3 axis by 2.5mm allen key
Removable cover plates conceal adjustment screws
Opening Angle: 180 degree
Material: Zinc Alloy

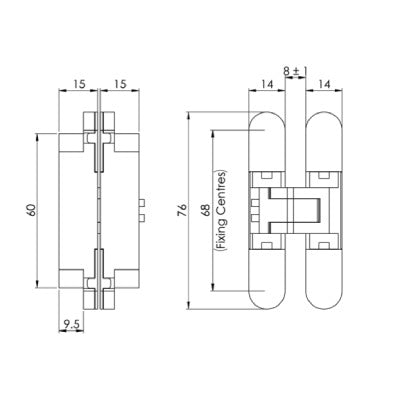

Hinge Height: 76mm
Hinge Width: 14mm
Hinge Depth: 15mm

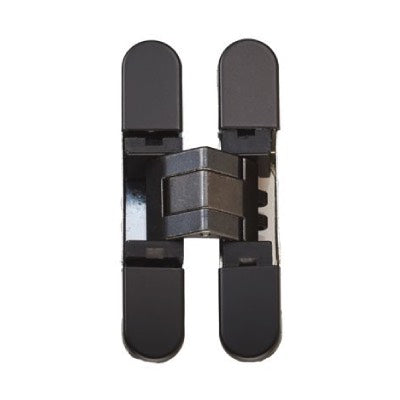

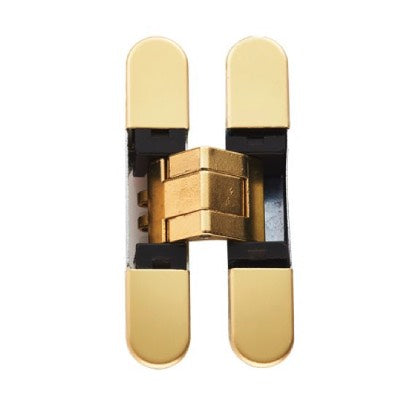

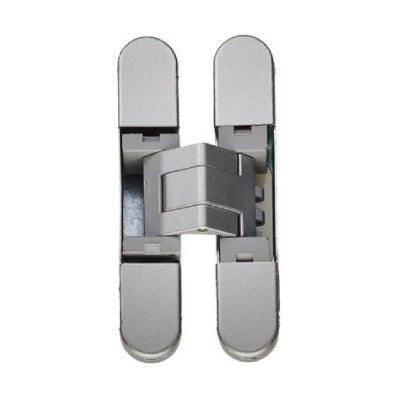

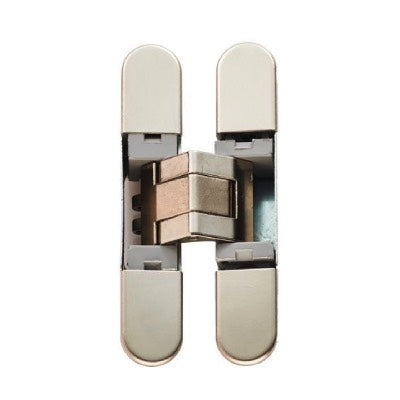

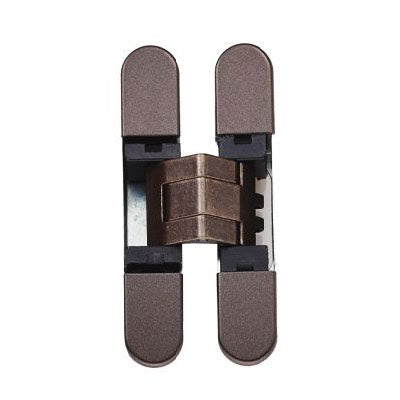

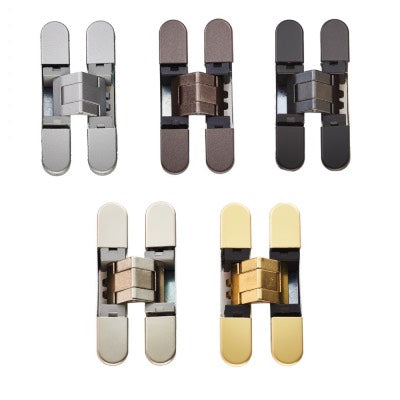

Finish Available: Brass, Matt Black, Matt Bronze, Polished Nickel, Silver
Maximum adjusted door weight:
12kg - Max Loading 2 Hinges
16kg - Max Loading 3 Hinges
21kg - Max Loading 4 Hinges
Fitting instruction available
Sold as Single Unit
