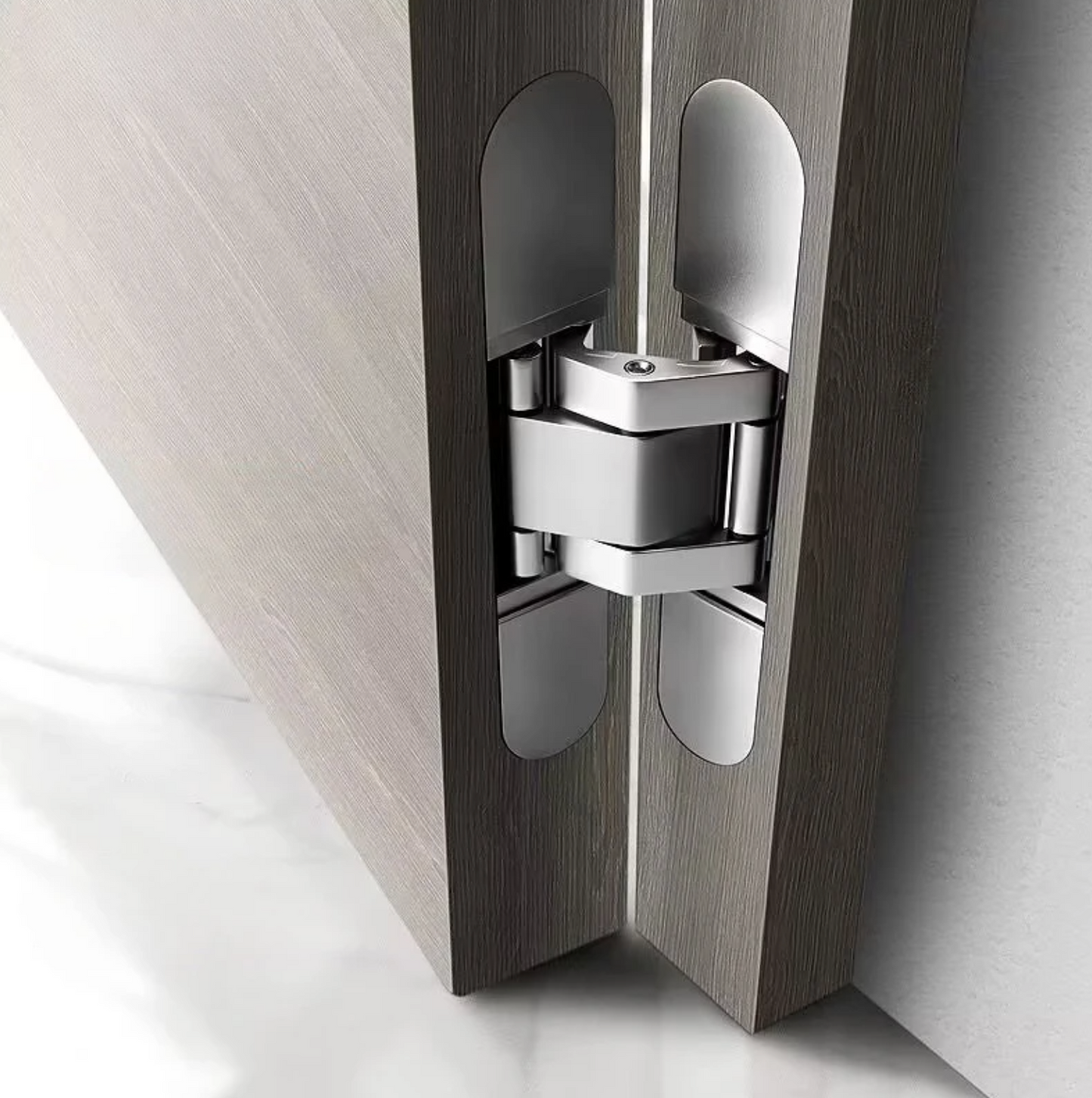

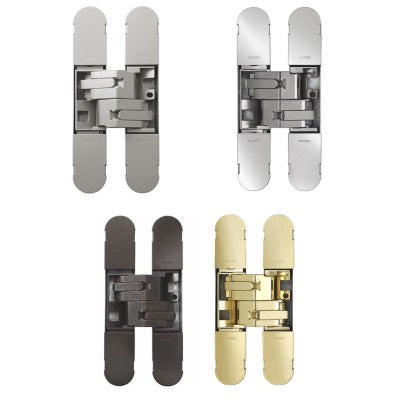

CEAM 3D Concealed Door Hinge 1129 Adjustable 25-40 kg Concealed medium duty hinge for unrebated and rebated flush-faced timber doors Fixings fully concealed and suitable for wardrobe doors up to 40kg. Suitable for cabinet carcasses & doors from 28mm thick and works with Inset or lay-on cabinet doors. Removable cover plates conceal adjustment screws Opening Angle: 180 degree Material: Zinc Alloy Hinge Height: 100mm Hinge Width: 22mm Hinge Depth: 18mm Finish Available: Brass Plated, Bronze Plated, Nickel Plated, Champagne
Maximum adjusted door weight: 25kg - Max Loading 2 Hinges 40kg - Max Loading 3 Hinges Fitting instruction available
