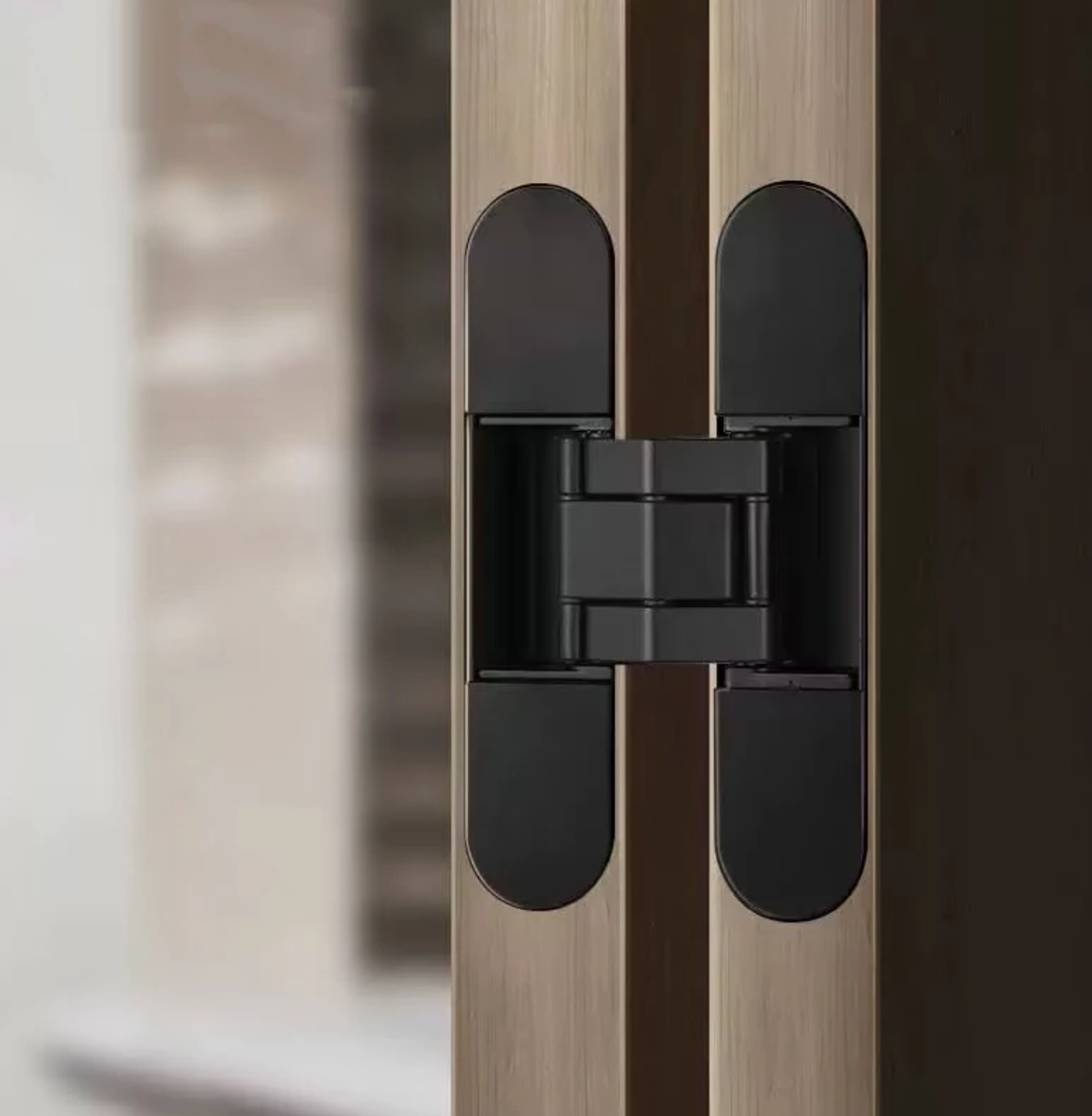

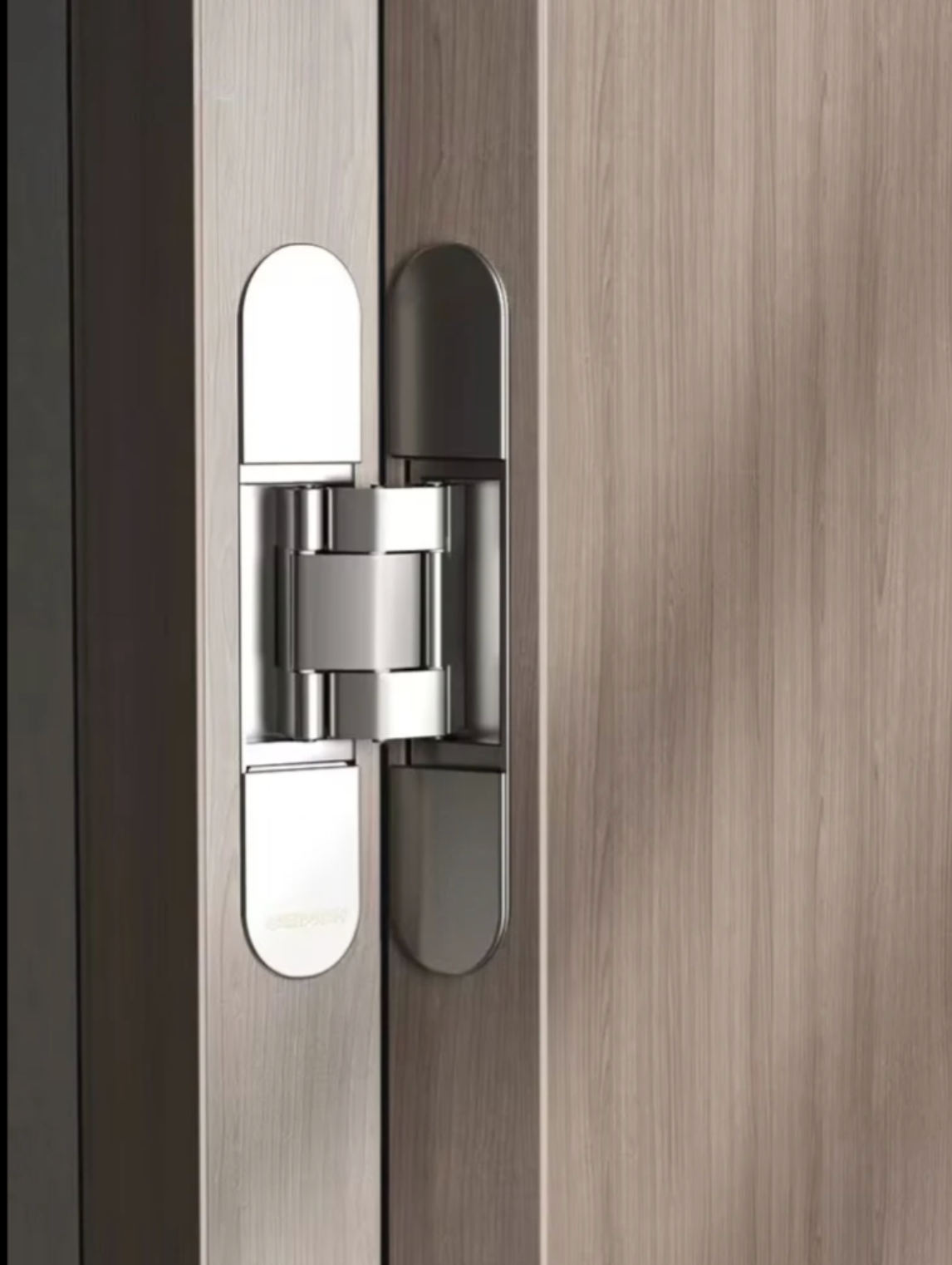

CEAM 3D Concealed Door Hinge 1131 up to 120 kg Concealed heavy duty hinge for unrebated and rebated flush-faced timber doors Suitable for doors from 38mm thick Removable cover plates conceal adjustment screws Opening Angle: 180 degree Material: Zinc Alloy Fire Resistant: 60min Hinge Height: 160mm Hinge Width: 32mm Hinge Depth: 29mm Finish Available: Antique Bronze, Black Nickel, Black Matt Varnish, Brass Plated, Bronze Plated, Nickel Plated, Champagne, Galvanic Satin Brass
Maximum adjusted door weight: 80kg - Max Loading 2 Hinges 120kg - Max Loading 3 Hinges Fitting instruction available
