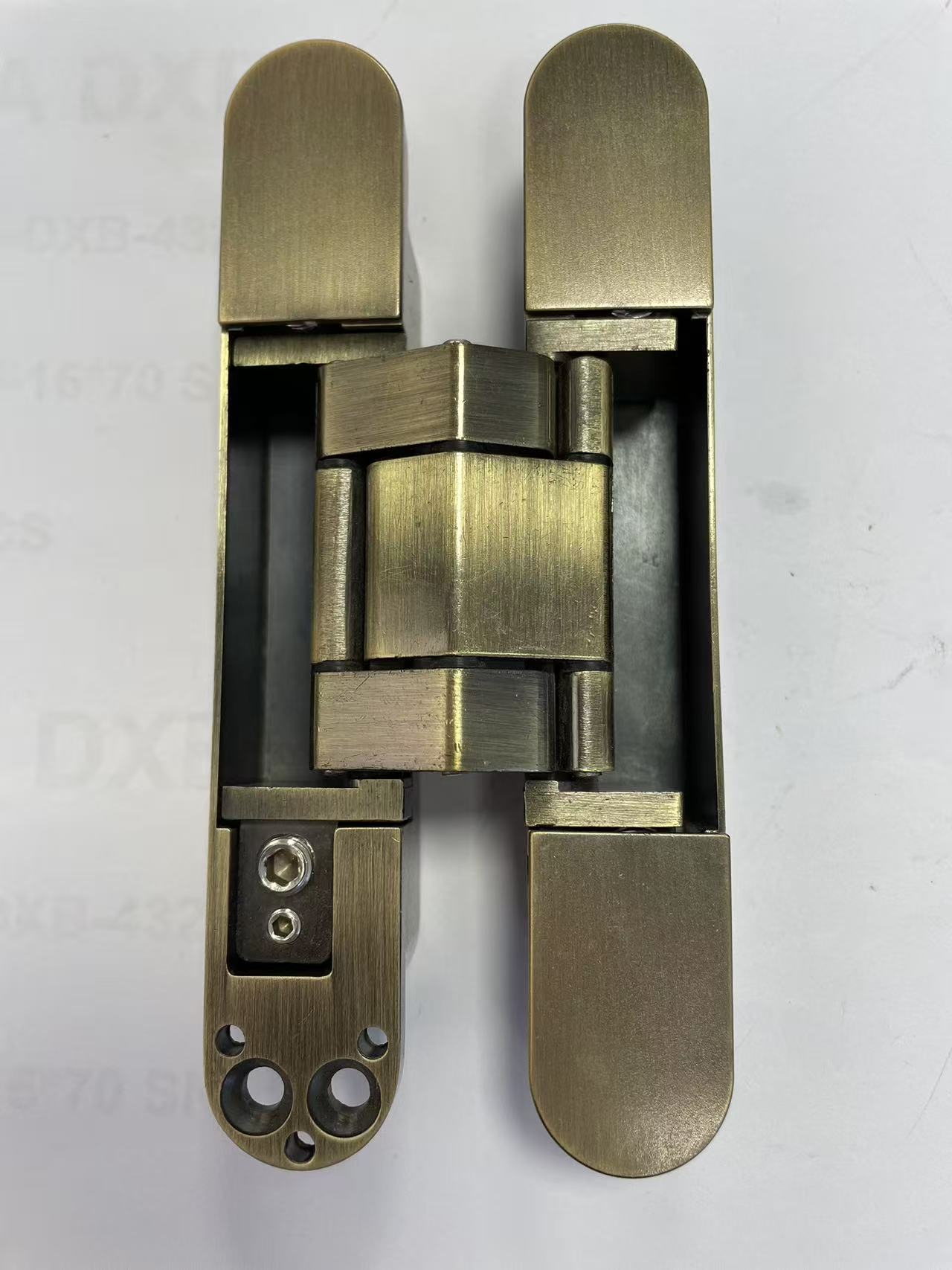

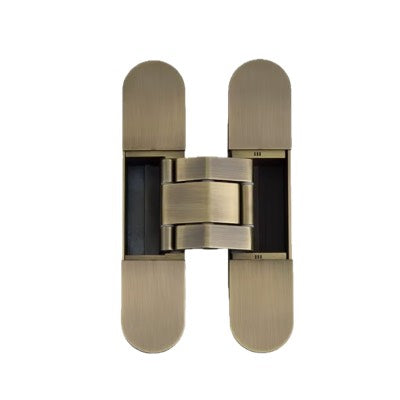

Concealed Adjustable Invisible Door Hinge 40kg/80kg Antique Brass

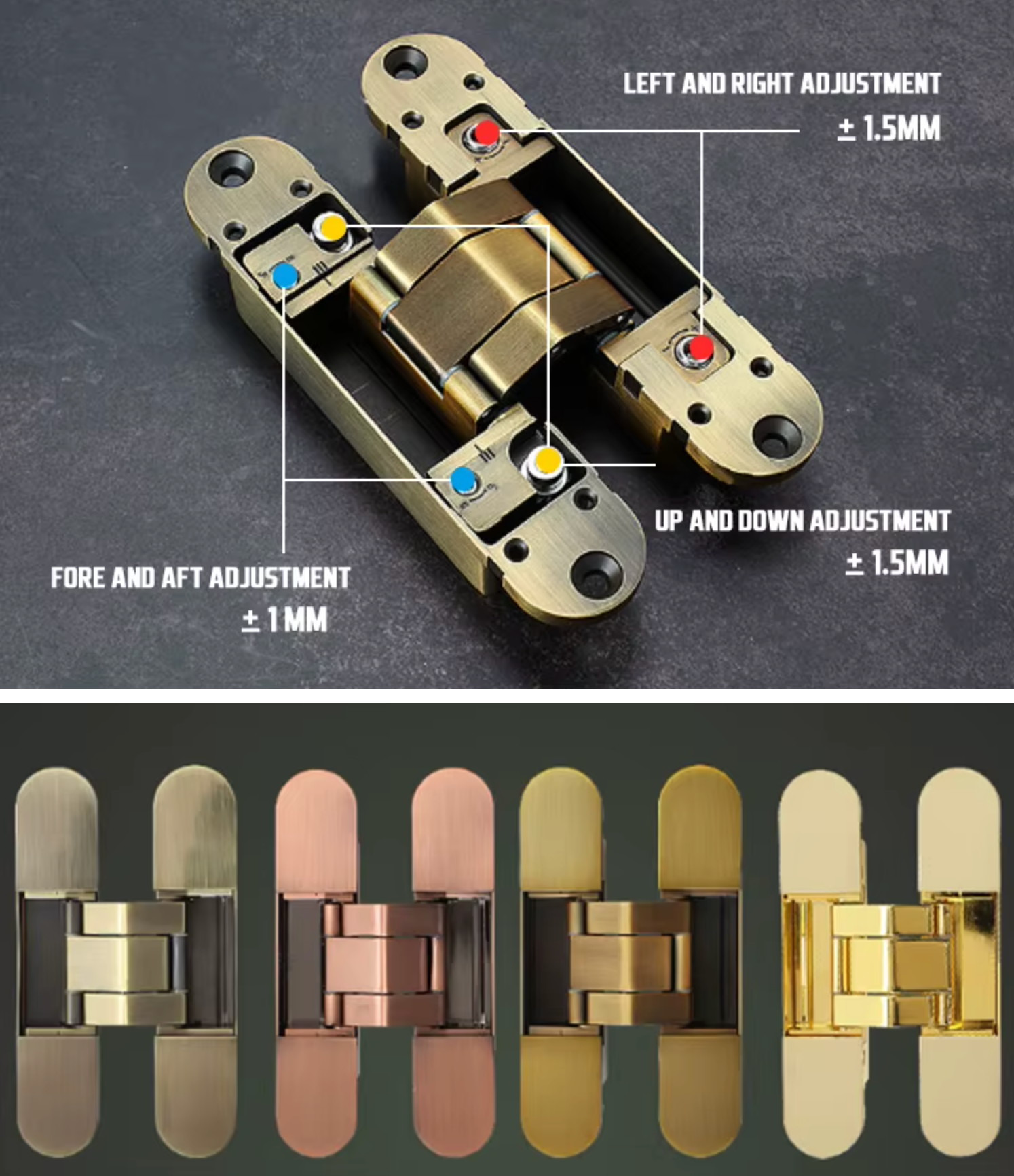

3D Concealed medium Duty Door Hinge for up to 80kgs. Concealed door hinges, also known as hidden or invisible hinges, offer a seamless solution for doors. Concealed hinges are installed within the door and frame, providing a clean and minimalist look. The primary advantage of concealed door hinges lies in their ability to enhance the aesthetic appeal of doors by eliminating visible hardware. For doors 29mm thick, the hinge provides a 180º opening. Adjustment bolts are concealed behind front covers that slip on and off easily. You may require 2 or 3 hinges, depending on the weight of the door.
40kg Hinge Version-150mm Height: Overall Hinge Height: 150mm Hinge Thickness: 25mm Hinge Width: 25mm Min Door Thickness: 29mm Minimum Door Frame: 21.5mm Door Weight: 40kg for 2 hinges & 50kg for 3 hinges
80kg Hinge Version-177 Height: Overall Hinge Height: 177mm Hinge Thickness: 25mm Hinge Width: 28mm Min Door Thickness: 35mm Minimum Door Frame: 21.5mm Door Weight: 80kg for 2 hinges & 100kg for 3 hinges
Material: Zinc Alloy with S/S Shaft Finish: Antique Brass Opening Angle: 180 Degrees Cycle Test: 300,000 Pack: 1 Hinge including Screws, cover plates
