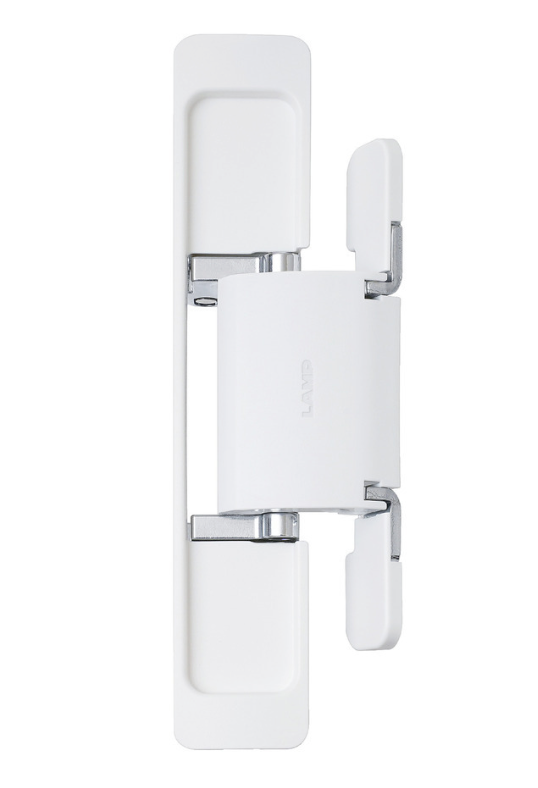

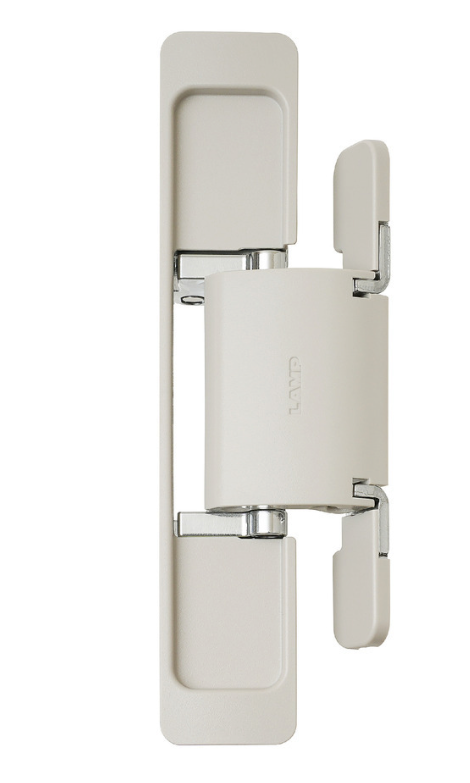

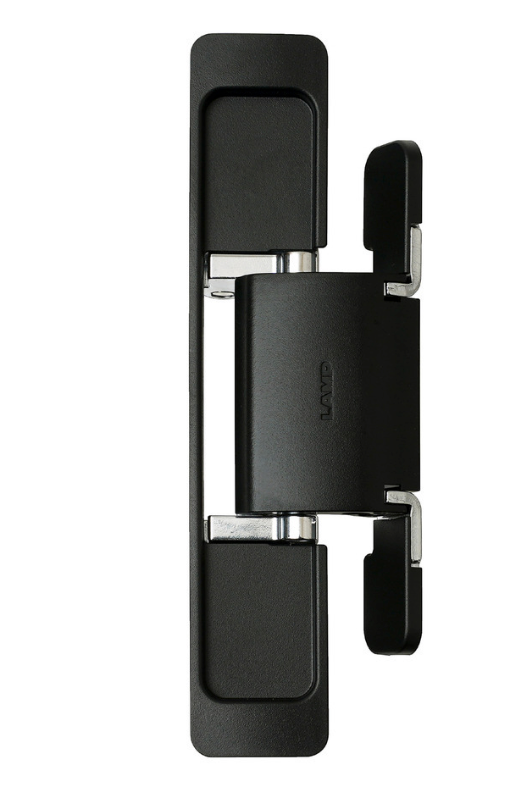

Concealed Adjustable Surface Mounted HES 150 Door Hinge

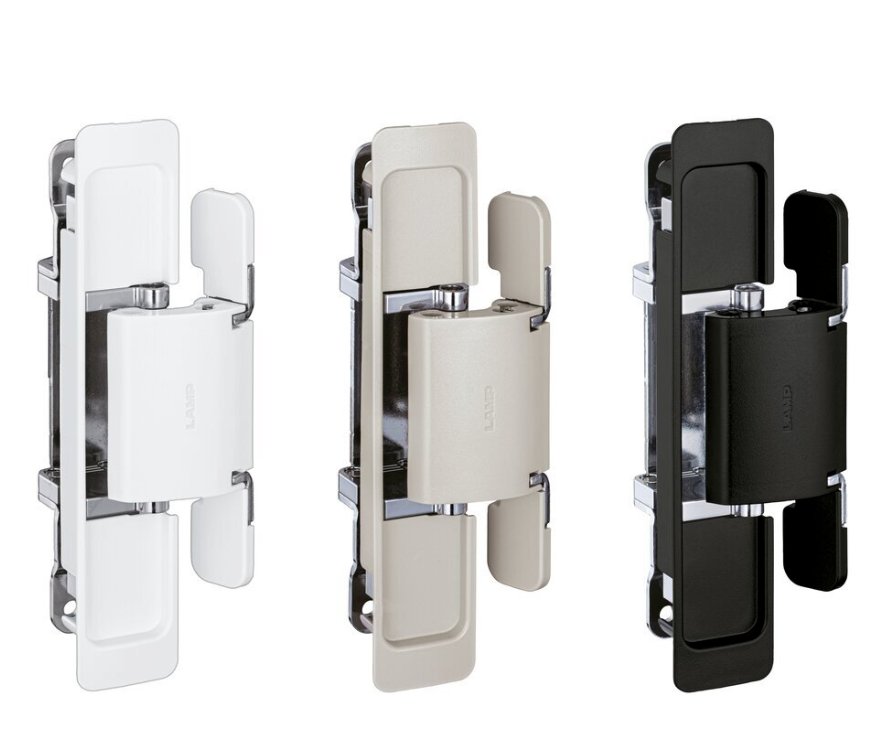

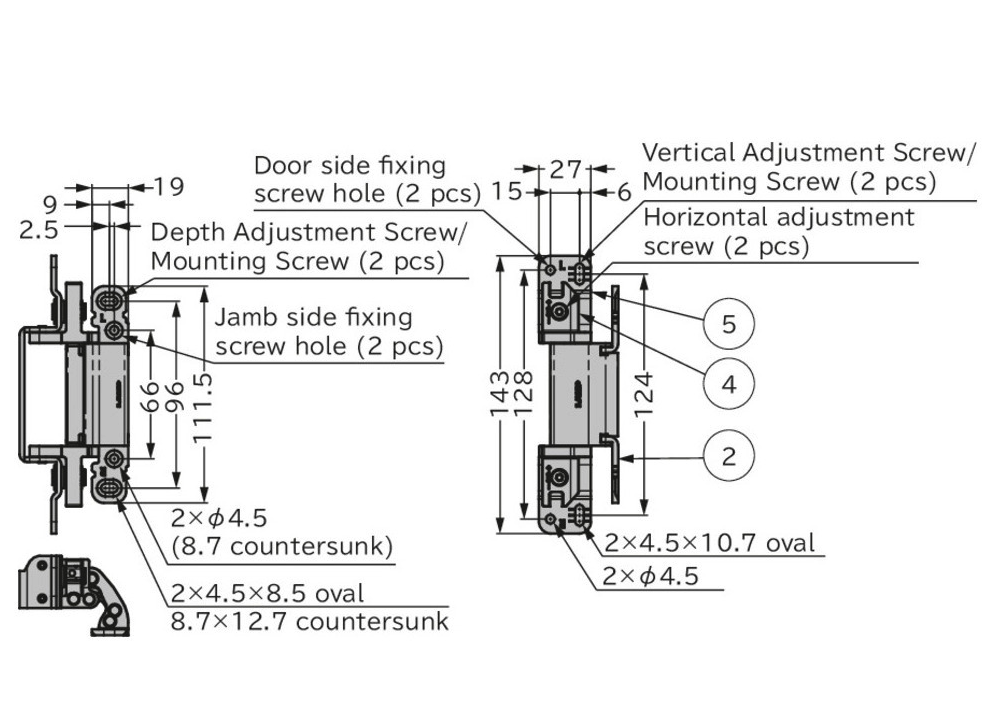

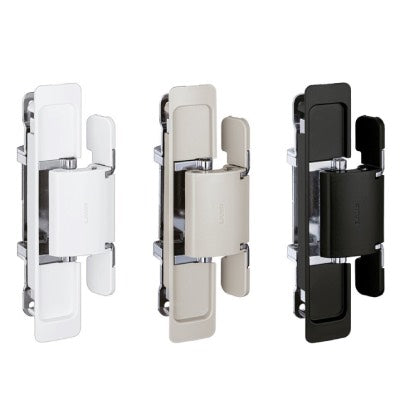

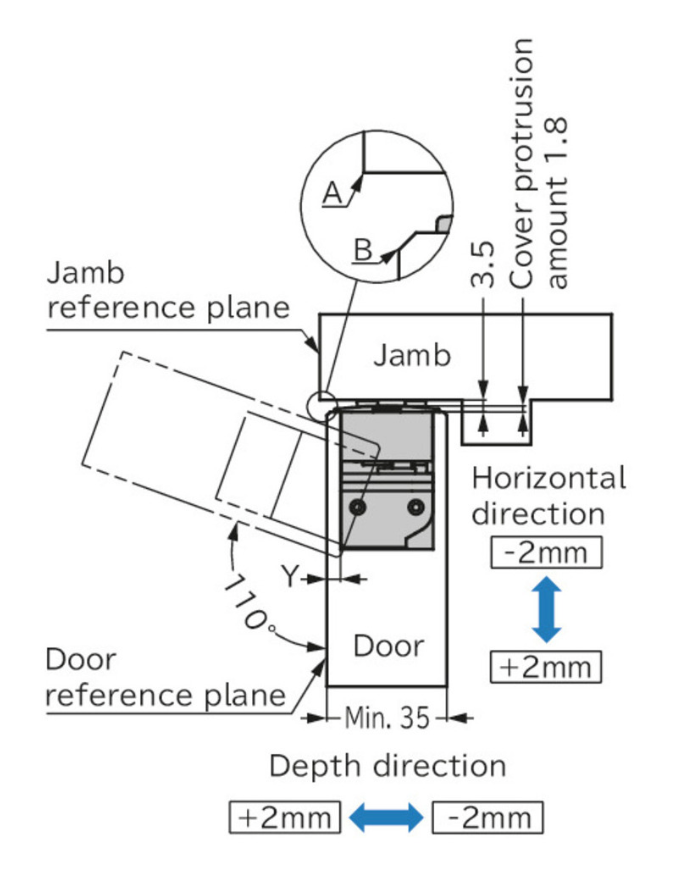

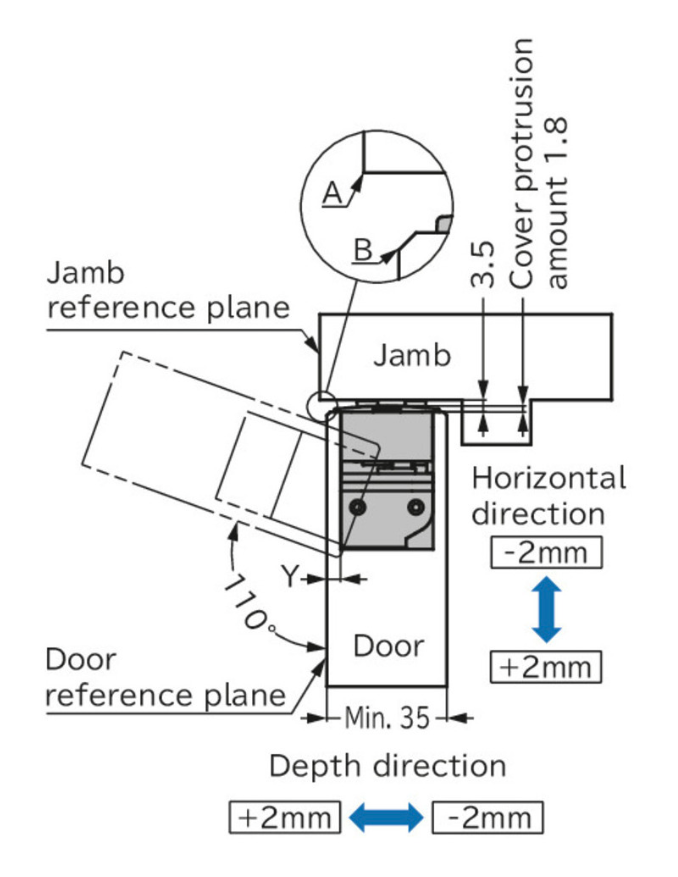

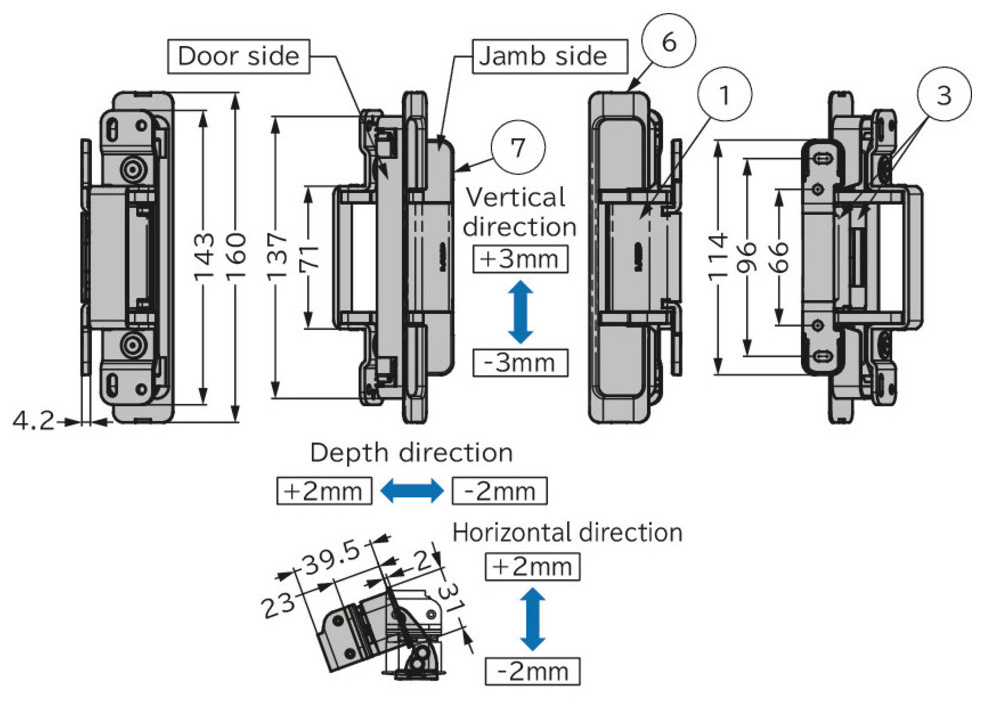

3D Concealed medium duty door hinge for up to 50kgs. Concealed door hinges, also known as hidden or invisible hinges, offer a seamless solution for doors. Concealed hinges are installed within the door and frame, providing a clean and minimalist look. The primary advantage of concealed door hinges lies in their ability to enhance the aesthetic appeal of doors by eliminating visible hardware. Concealed medium duty hinge for un-rebated flush faced quality timber doors. Surface-Mount Concealed Hinge from Sugatsune, designed for easy installation and a sleek, hidden look, perfect for high-end furniture and architectural projects. This award-winning hinge offers 3-way adjustment and exceptional durability, having passed a 300,000 open/close cycle test For doors 35mm thick doors the hinge will give 110º opening, adjustment bolts are concealed behind front covers which slip on and off easily. You may require 2 of 3 hinges, depending on the weight of the door. Overall Hinge Height: 160mm Hinge Thickness: 40mm Hinge Width: 28mm Min Door Thickness: 35mm Maximum door width: 900mm Maximum door height: 2700mm Door Weight: 40kg for 2 hinges & 50kg for 3 hinges Material: Steel Finish: Black, Warm Grey, White Opening Angle: 110 Degrees Cycle Test: 300,000 Pack: One Hinge, including Screws and cover plates
Other HES 140 Heavy Duty available. Instruction info available to download
