Dimmable Led Triac Drivers 12V Constant Voltage IP20

Dimmable Led Triac Drivers 12V Constant Voltage IP20


Triac Dimmable LED Drivers are a high-performance driver designed for 12V LED lighting systems. The drivers can be connected to any normal mains dimmers or switches. It provides a constant 12V output with a maximum power of 100 watts, making it suitable for larger or higher-demand lighting applications.
The driver features Triac dimming, allowing for smooth and reliable brightness adjustment using standard dimmer switches.This capability ensures compatibility with many existing dimming setups, offering convenience and flexibility.
This driver is intended for indoor use and is ideal for applications where precise control of LED lighting is essential.
Dimmable: Yes
Input Wattage: 180-240VAC
Output Voltage: 12V
IP Rating: IP20
Efficiency: >86
Power factor PF: >0.95
Available Wattage: 30W, 60W, 80W, 100W

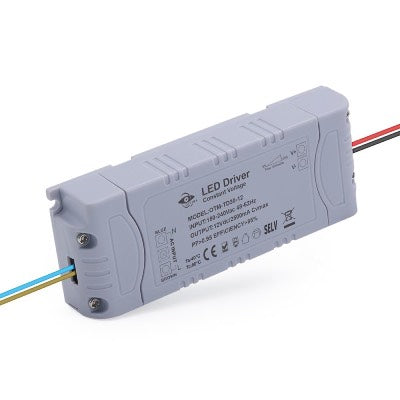

-30W, Current: 2A, 107x40x22mm

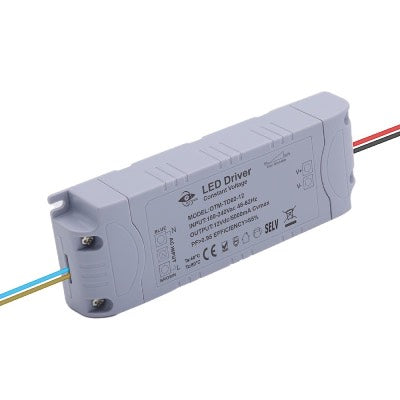

-60W, Current: 4A, 133x47x29mm

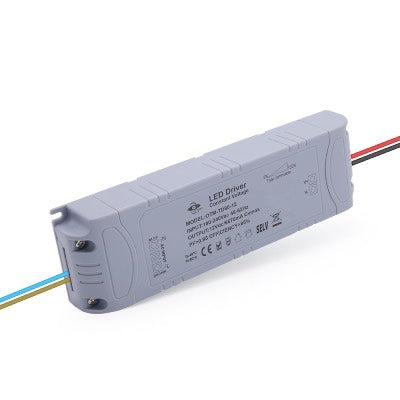

-80W, Current: 5.5A, 170x50x30mm

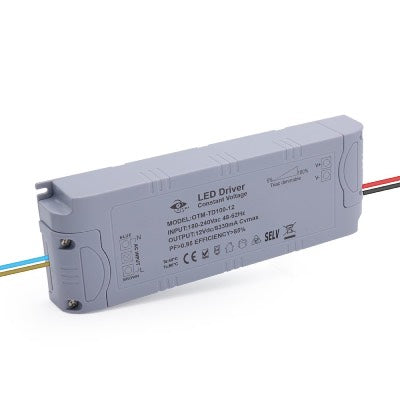

-100W, Current: 7A, 170x50x30mm
Warranty: 5Years
Certification: CE/RoHS/SAA/ETL
