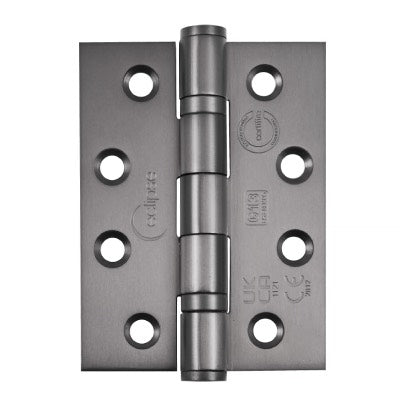

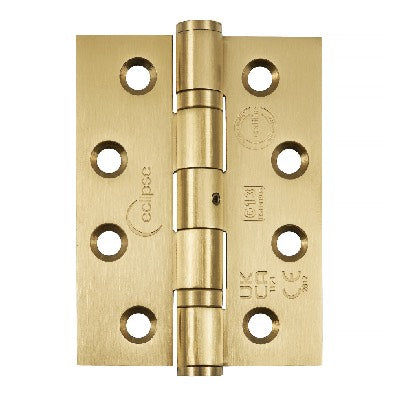

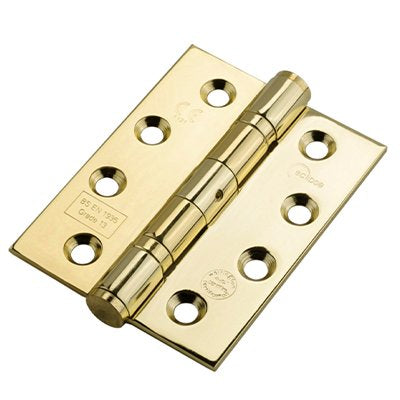

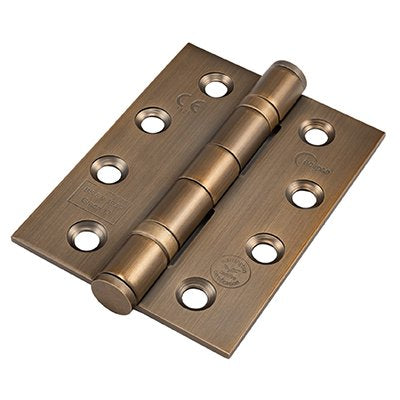

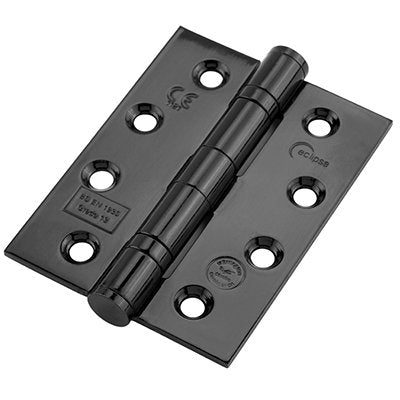

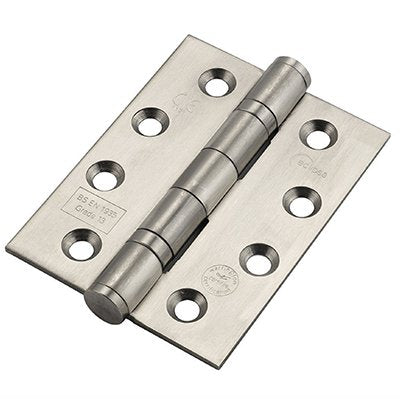

Door Hinge Eclipse 4” Stainless Steel Ball Bearing F/R Grade 13 Set of 3

Door Hinge Eclipse 4 In Stainless Steel Ball Bearing F/D Grade 13 Set of 3.

Eclipse Door Hinge 4” Grade-13 Set-3
Eclipse is one of the leading and most trusted brands specialising in manufacturing fire door safety products, including fire door hinges and door closers. All the Eclipse fire door hinges are certifier rated and fire tested to standards BS EN1634-1
Eclipse 4 inch stainless steel ball bearing hinge suitable for fire rated and standard Internal doors up to 120 kg.
BS EN 1634-1:2000 Fire tested up to 60 minute on timber fire doors and 240 minutes on steel doors.
Performance tested BS EN 1935:2002 to grade 13. We would recommend you fit 3 hinges per door to overcome twisting or warping over time.

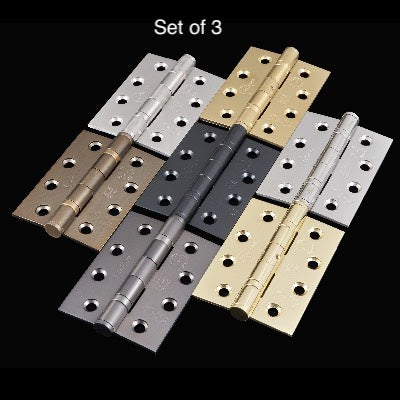

Available in Satin Stainless Steel(SSS), Polished Stainless Steel(PSS), Polished Brass(PBP), Black Powder Coated(BPC), Matt Antique Bronze(MAB), Dark Bronze(DBZ), Satin Brass(SBP)
Set Contain: 3 Hinges, Screws
Manufacturer: Frisco
Brand: Eclipse
Material: Stainless Steel
Finish: Satin Stainless Steel(14854-SSS), Polished Stainless Steel(14853-PSS), Polished Brass(14882-PBP)
Finish: Matt Antique Bronze(14852-MAB), Black Powder Coated BLK (14920), Dark Bronze(DBZ), Satin Brass(SBP)
Fixings Included: Yes
What's Included: Supplied in pack of 2 complete with Pozi Drive Screws.
Fire Rated: Yes - FD30/60 - 1 Hour Fire Tested

Dimensions
Height: 102mm
Width: 76mm
Plate Depth: 3mm

4 Inch version in Grade 13 (Set of 2) Available from here in all 7 finishes Door Hinge Eclipse 4 In Stainless Steel Ball Bearing F/D Grade 13 Set of 2

Data Sheet with all product info 4" Grade 13
