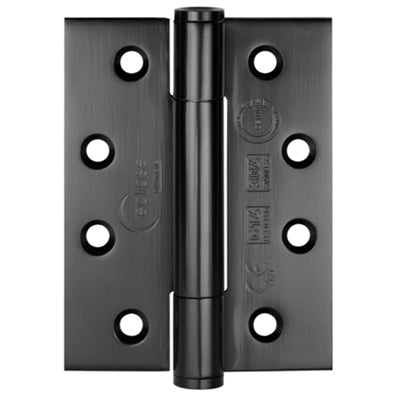

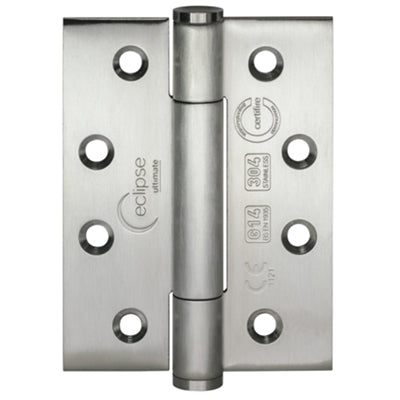

Door Hinge Eclipse 4” Stainless Steel Concealed Bearing F/R Grade 14 Hinges

Eclipse 4 Inch Stainless Steel Concealed Bearing Fire Rated Grade 14 Hinges Set of 2
Eclipse 4 inch Stainless steel concealed bearing hinge suitable for fire rated and standard Internal doors up to 160 kg.
BS EN 1634-1:2000 Fire tested upto 60 minute on timber fire doors and 240 minutes on steel doors.
Performance tested BS EN 1935:2002 to grade 14. We would recommend you fit 3 hinges per door to overcome twisting or warping over time.

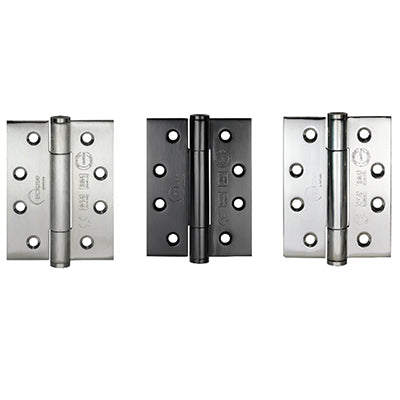

Available in Satin Stainless Steel, Polished Stainless Steel, Black sold in pack of 2.
Set Contain: 2 Hinges, Screws
Manufacturer: Frisco
Brand: Eclipse
Material: SUS 304 Stainless Steel
Finish: Satin Stainless Steel-14329, Polished Stainless Steel-14330, Black Ral 9005-14331
Fixings Included: Yes
What's Included: Supplied in pack of 2 complete with Pozi Drive Screws.
Fire Rated: Yes - FD30/60 - 1 Hour Fire Tested
Dimensions:
Height: 102mm
Width: 76mm
Plate Depth: 3mm
