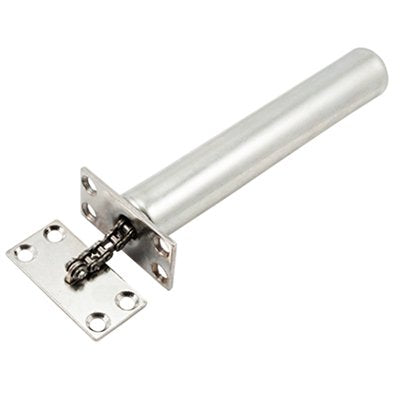

Eclipse Concealed Fire Rated Jamb Door Closer on Chain Spring
Jamb Closers incorporate a spring and chain in the barrel of the closer which can be adjusted to the desired tension in order to close the door.
Eclipse jamb closers are available in two different finishes, only selling square plates, all of which are fire tested up to 60 minutes.
Fire Tested: BS EN1634-1:2000: FD60 Timber
Maximum Door Width: 830mm
Maximum Door Weight: 50kg
Reversible Square Fixing Plate
2 Year Guarantee
Manufacture: Eclipse-Frisco

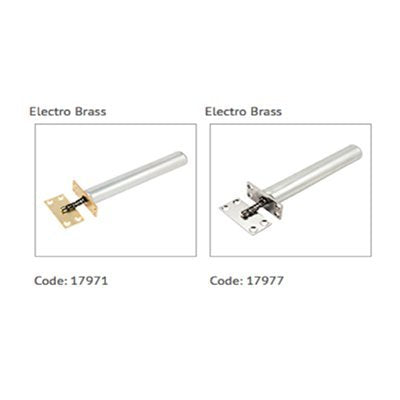

Available: Electro Brass -17971 or Nickel Plated-17977
Dimensions:
Closer Size:
Length - 145mm
Diameter - 22mm
Face Plate:
Height - 50mm
Width - 25mm
