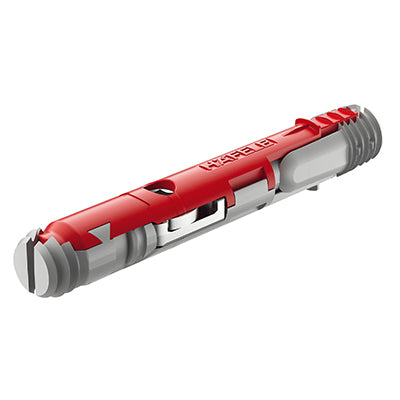

The ixConnect SC 8/60 spreading connector is patented technology.
Designed in house by Hafele which is ideal for connecting larger furniture items together.
For concealed installation of cabinet connections in chipboard.

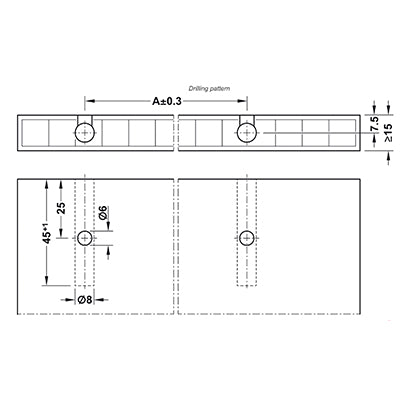

Only a Ø 6 mm drill hole for securing connector is visible after installation.
Can also be used as a cabinet connector for large furniture items.
Both connector components expand synchronously in the drill hole when joining both panel components.
The connector is fixed into end position with a gentle tap on the panel components.
Quick and easy installation.

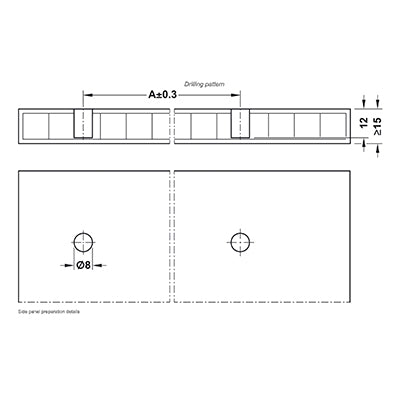

Insert in Ø 8 mm standard drill hole.

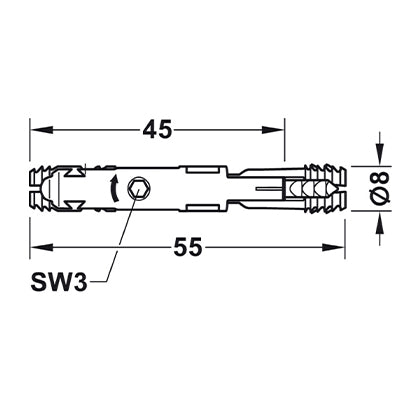

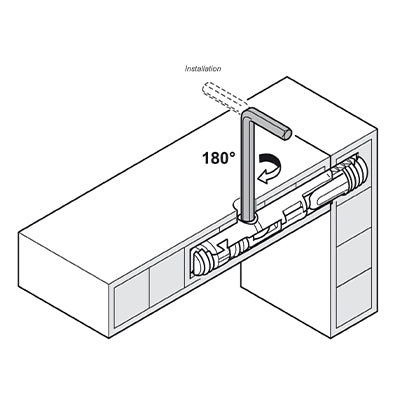

The connector expands with a 180° turn of the tightening screw with SW3 hexagon socket.
For panel thickness min. 15 mm.
One-piece connector.
Separable connection.
Sold Individually.
For easy installation you can purchase Jig from other listing 001.25.085
