Grass Kinvaro F-20 Lift Mechanism

Grass Kinvaro F-20 Lift Mechanism

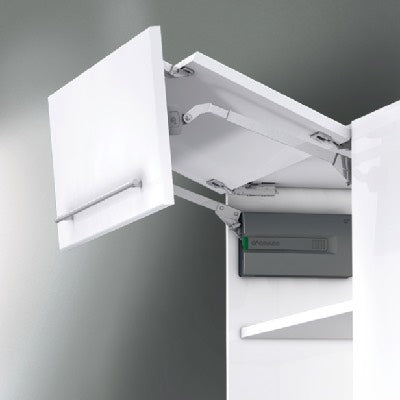

Grass Kinvaro F-20 Lift Mechanism is the fittings for Folding Flap Doors with opening support and closing damping.For wooden doors and glass doors with wide aluminium frame (40/50mm) with and without handle. Ideal for kitchen upper cabinets.
Simple to install and adjust
Connecting hinge with finger protection and 3D adjustment
Integrated adjustable damped action gives quiet and gentle closing

Material:
Fittings and hinges: Steel
Cover caps: Plastic

For total flap weight:
4.4 to 12.6kg for 570mm flap height
6.5 to 16.4kg for 715mm flap height

For flap width: 400-1200mm

For flap height:
2 x 285mm
2 x 357mm
For flap thickness: 18mm
Holds flap securely in any position
Adjustable opening limiter up to 90 degrees
3-dimensional adjustment possibility of the flap by direct adjustment

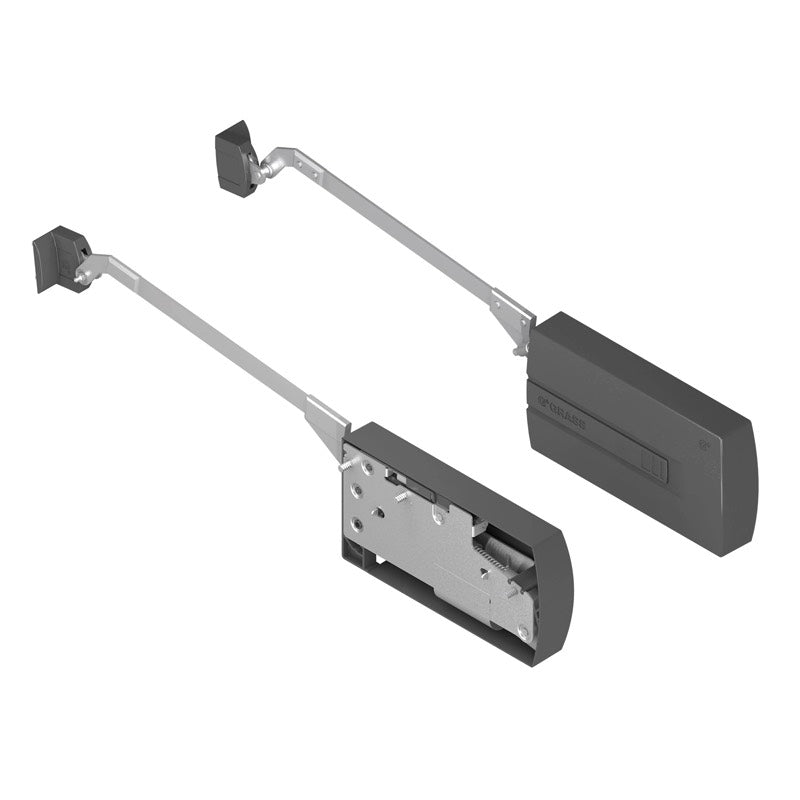

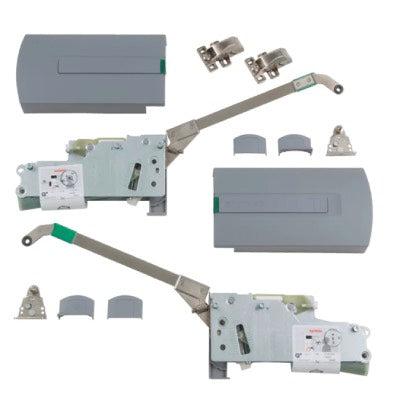

Set Includes:
1 pair galvanised steel fittings with pre-mounted Euro screws
Galvanised steel hinges
Grey RAL 7045 plastic cover caps
Fitting instructions attached Kinvaro F-20

When calculating the weight, please also take into account the weight of the furniture handle!

Separately Please Order: Concealed SPRUNG Hinges with 120° opening angle must be ordered separately (In related products below)

Kinvaro F-20 Lift Mechanism and other lift fitting available from here Lift Systems
