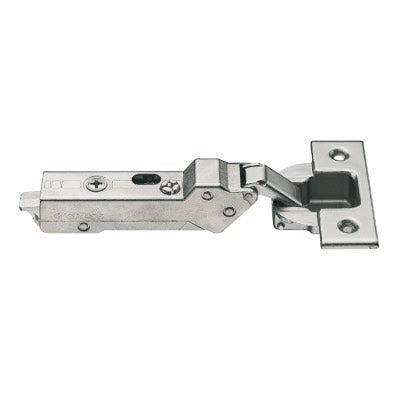

Grass Tiomos 120° Overlay Hinge.
The hinge details and functions have been completely redesigned and redeveloped from the top to bottom
The damper system is concealed within the hinge arm.
In addition to the many functional features, one of the outstanding features of the hinge system is the integrated soft-close damping, which has three stages of adjustment.
As a result, in every movement phase, the closing process is smooth and seamless.
And all this from an opening angle of just 30°.

Grass Tiomos 120° hinge system:
Opening doors mechanically, gently tapping the handle-free door is enough to open it.
Up to 24 mm door thickness for 110/120° hinge (recommended for door thicknesses 24 mm and above, a trial fitting)
Version: Without soft closing mechanism or with soft close
Crank type: Straight

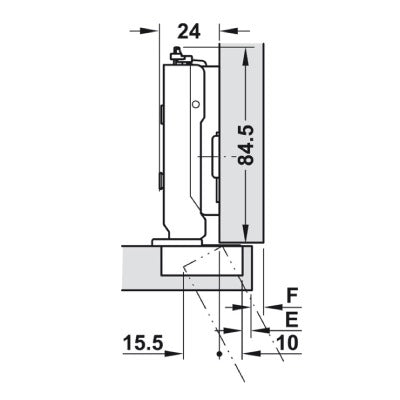

Door processing for assembly: with cup drilling
Cup drilling depth: 10.00 mm
Drilling Ø: 35.00 mm
Fixing: for screw fixing
Drilling pattern: 45/9.5

Order reference Order Hospa ⌀ 3.5 mm countersunk screws separately and Mounting plates screw or euro screw version Hafele
NON soft close is suitable for Grass Kinvaro F-20 Flap system
