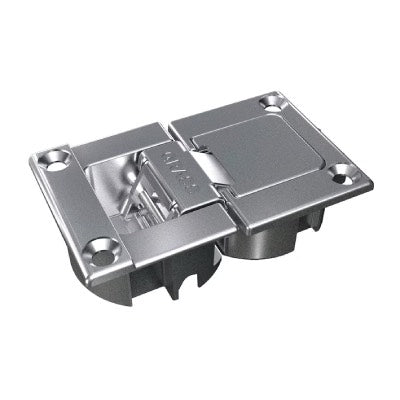

Grass Tiomos Flap Hinge Nickel

Grass Tiomos Flap Hinge Nickel

Grass Tiomos flap Hinge-Nickel for flap thicknesses from 14 to 28 mm
The optimal interplay of the Tiomos flap hinge and Kinvaro D drinks compartment flap opens up new design possibilities.
The extremely flat flap hinge discreetly connects the base panel and flap and creates an almost flush opening
Kinvaro D with pull cable holds the flap securely.
Kinvaro d can be fitted horizontally or vertically on both sides and is available in two models for different depths, flap sizes and weights.
With integrated damping and available in three colours, it is an elegant fitting for perfect furniture design

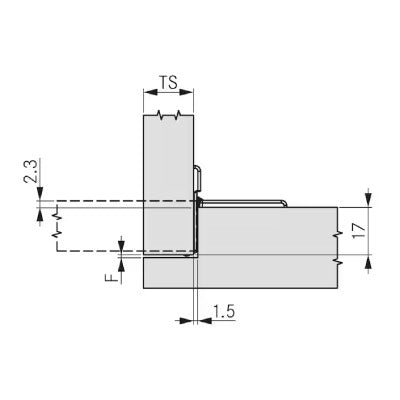

Door/Lid Thickness: 14-21mm or 22-28mm

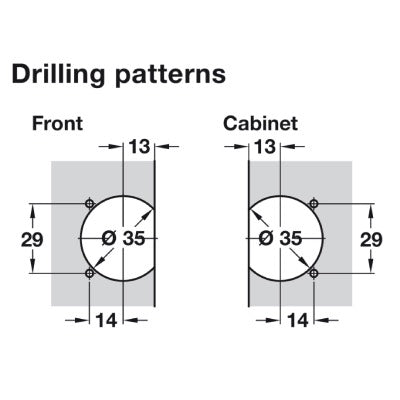

Cup depth for hinge 14-21 is 12mm
Cup depth for hinge 22-28 is 17mm
Finish : Nickel Plated
Material: Zamak/Steel
Additionally modern design with narrow joint between connection
Suitable for large overlay of up to 28 mm
In addition has 3D adjustment: side, depth and height
Also compatible with Tipmatic hinges
Compatible with Kinvaro flap stays D-M flap stay with pull cable and D-S pull cable
Brand: Grass info Flap Hinge
Opening angle: 90°
For lid/door thickness: 14-21mm or 22-28mm
Installation: Screw fixing
Cover Cap is included in colour of hinge, made out steel

Grass Tiomos Flap Hinge-Nickel is sold as single hinge

Further more, other finishes are available Hafele
