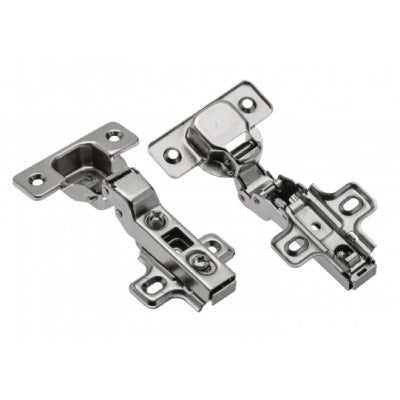

GTV Sprung 100° Half Overlay Cabinet Hinge

GTV Sprung 100° Half Overlay Cabinet Hinge

The hinge is characterised by high durability, as it has been certified for 80,000 cycles.
Two-stage action, the hinge has a smooth movement in the phase of opening.
This protects against hitting the front against a neighbouring wall or piece of furniture.
Ease of assembly is by adjustment in three planes and an applied clip-on guide.

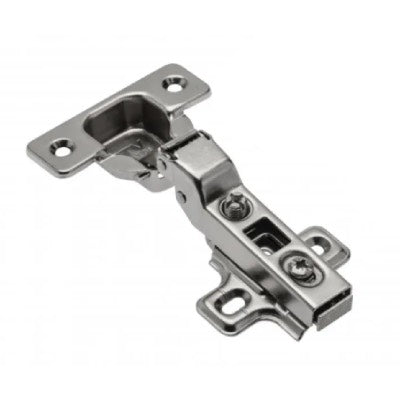

Standard Sprung CLIP ON 35mm Door Hinge ZP-CONL08-ZE

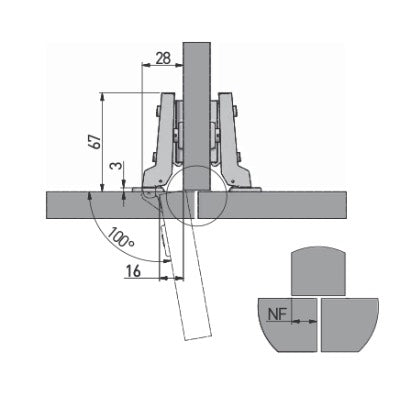

Opening Angle: 100 Degree
System: Clip On
Closing: Sprung
Type: Half Overlay
Mounting Plate: 0mm Spacing with euro screws
Cup Size: ø35mm
Material: Steel
Finish: Nickel Plated
Brand: GTV
Screws for hinge are not included
