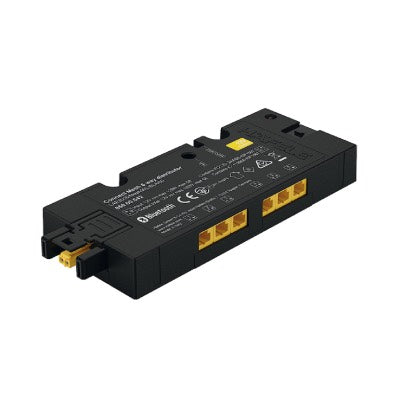

Hafele Connect Mesh Distributor Box 6-Way Multi Switching 12V

Hafele Connect Mesh Distributor Box 6-Way Multi Switching 12V.

Control several light colours on one box
Each output port can be controlled individually
For standard Loox switches (switching function via programmable app; each active component can control each passive component)

Bluetooth® and switching function
The connection of the distributors with the driver can be done via a box to box plug-in connection or via an extension lead.
Any number of distributors can be connected to the driver.

Low voltage plug: Loox5 2-pin 12 V box to box
Input ports: 1 x plug, Loox5 2-pin 12 V box to box
Connections: 1 x socket, Loox5 2-pin 12 V box to box
Connected output ports: 6 x sockets, Loox5 2-pin 12 V
Control input ports: 1 x socket, Loox switch
Power Rating: 60W
Voltage: 12 V
Colour system: monochrome
Area of application:
For on/off switching and dimming (0-100%) of monochromatic lights; or, in conjunction with adapters, for the operation of multi-white lights, RGB lights, and electrically operated fittings
Material: Plastic
Colour/finish: Black
Dimension (L x W x H): 120 x 50 x 16 mm
Switching function: Programmable with Häfele Connect Mesh
Distance between controls max: 10 m

Please order adapter for multi-white lights, RGB lights or electrically operated fittings separately
Supplied with 1 distributor
