Hafele Free Space Push to Open Door Lift Fitting Anthracite

Hafele Free Space Push to Open Door Flap Fitting Anthracite
A stay flap fitting for one-piece flaps or flaps with aluminium frames
Push-to-open version for door flaps without handles
Hinge-less stay flap fitting for more free room in all respects
Extremely powerful: A product series for the majority of the most common flap sizes and weights
Extremely compact: Minimal appearance and more storage space in the future
Extremely fast and time-saving processing
Loox drilling jig 001.25.080 can be used for preparing the Ø 10 mm drill hole for insertion of the push catch
Up and down adjustment +/- 2mm
Side to side adjustment +/- 1.5mm
Tilt adjustment +/- 2mm
Suitable for
For one-piece flaps without handles, made of wood or with aluminium frame, from frame width 45 mm
Application
For all stay flap applications without handle with front height up to 650 mm (Push-to-Open)
Opening angle 90° or 107 °
Adjustment facility
Height, side, tilting angle, holding power, release distance on push catch
Installation
Fitting for screw fixing with pre-mounted Euro screw
Front panel fixing without tools, for sliding onto pre-mounted fixing screws
Guarantee 25 years
Material: Housing: Plastic
Front fixing bracket and support lever: Steel
Finish Front fixing bracket and support lever: Nickel plated
Colour: Antracide

Supplied with
1 stay flap fitting set (1 piece each left/right)
4 fixing screws for front panel
1 Free push catch
1 set of installation instructions with paper drilling template for side panel

Order reference
The choice of stay flap fitting for front panels without handle depends on the cabinet height and flap weight.

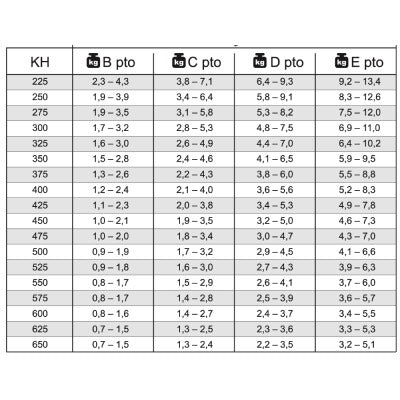

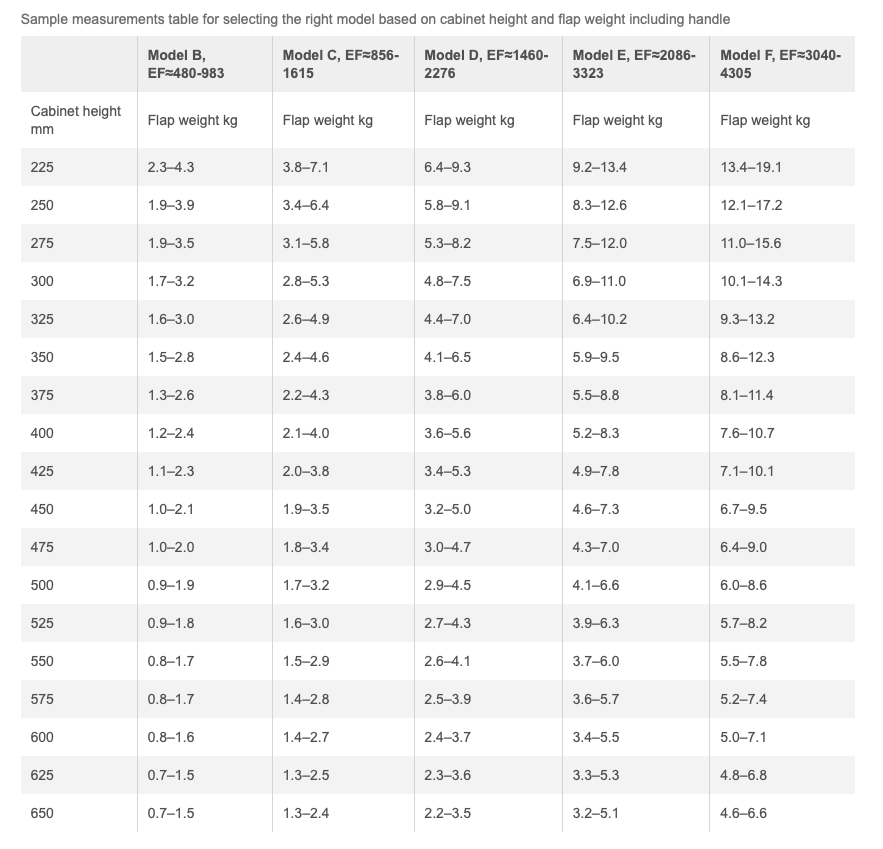

For model selection see sample measurements table
We recommend to use the stronger fitting model when in doubt
Please order suitable screw set 372.27.600 for aluminium frame front panels from frame width 45 mm
Please order screw-on housing for push catch separately
