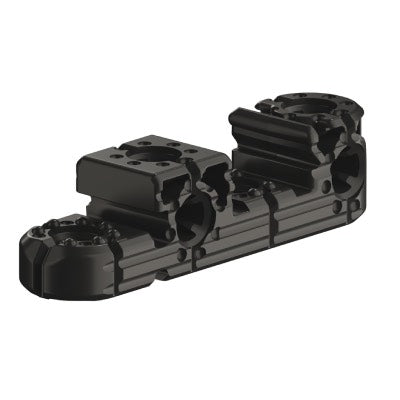

Hafele Ixconnect UC 262.00.100 Plastic Universal Connector

Hafele Ixconnect UC 262.00.100 Plastic Universal Connector
One fitting for countless applications

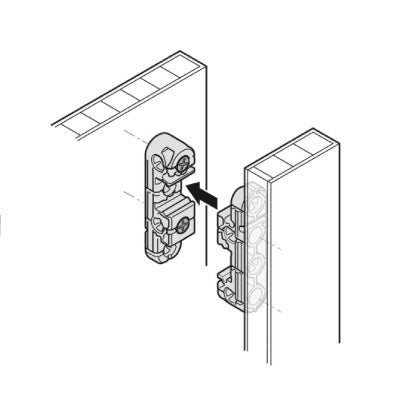

Easy installation by sliding on, hooking in, snapping in
For removable, concealed connections
Material: Polycarbonate
Colour/finish: Black

Application: Wall cladding (with and without substructure), wood paneling, partition walls, anti-fall panels.

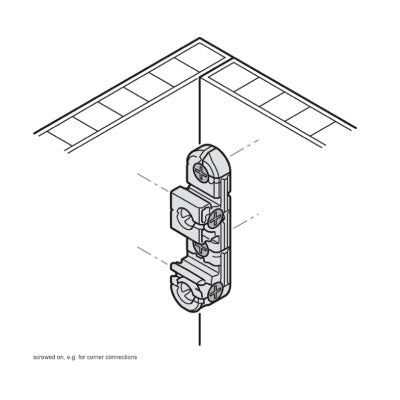

Furniture construction: Corner connections, surface connections (flush or with 8 mm offset), detachable connections of panels and fitting strips, doubling, as furniture foot, for cable routing, etc.
Installation for screw fixing with chipboard screws Ø 4 mm or euro screws for drill hole Ø 5 mm, for recess mounting -optional
Suitable for screw fixing in 32 mm series drilled holes.

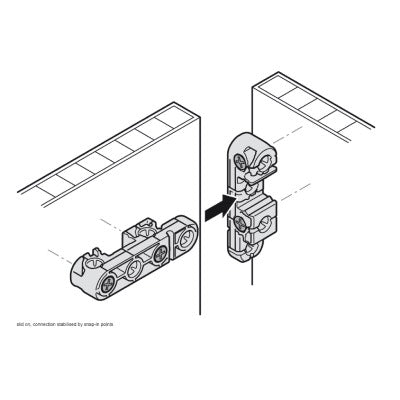

Connection with clip spring and snap-in points.

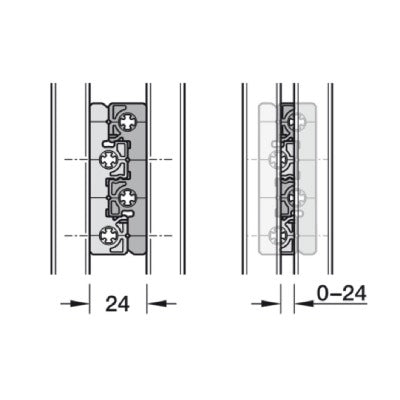

Variable screw-on and snap-in positions for hooking in from the front, from above or at side 90°, 135° or 180° angle possible.
The strength of the snap-in connection can be varied by the number of connectors

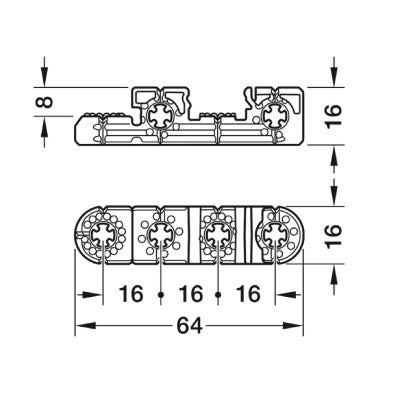

Dim. (L x W x H): 64 x 16 x 16 mm
