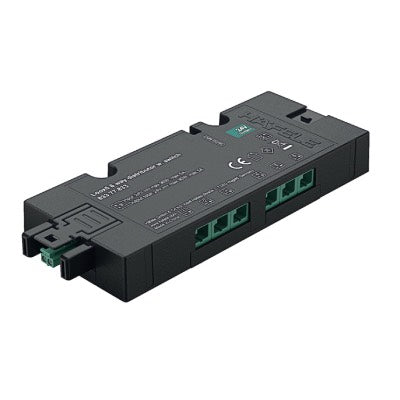

Hafele Loox5 Distributor Box to Box 6-way 24V With Switching

Hafele Loox5 Distributor Box to Box 6-way 24V with Switching Function
For use with Loox5 12 V lights and drivers, Max. connected wattage 90 W
Plug connection box to box With switching function for 6 output ports.

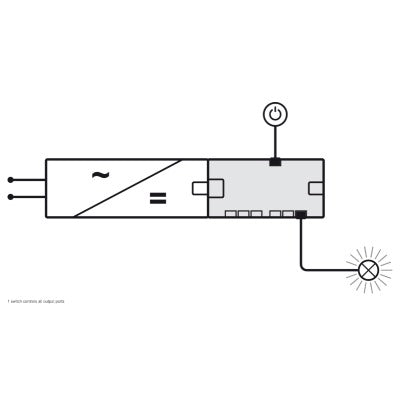

The connection of the distributors with the driver can be done via a box to box plug-in connection or via an extension lead.
Any number of distributors can be connected to the driver

Low voltage plug: Loox5 2-pin 24 V box to box
Input ports: 1 x plug, Loox5 2-pin 24 V box to box
Connections: 1 x socket, Loox5 2-pin 24 V box to box
Connected output ports: 6 x sockets, Loox5 2-pin 24 V
Control input ports: 1 x socket, Loox switch
Power rating: 60 W
Voltage: 24 V
Suitable: Professional LED control, for monochrome LED lights, For monochrome lights
Version: Box to box with switching function for single control
Material: Plastic
Colour/finish: black
Dim. (L x W x H): 120 x 50 x 16 mm
Low voltage socket: Loox5 2-pin 12 V
