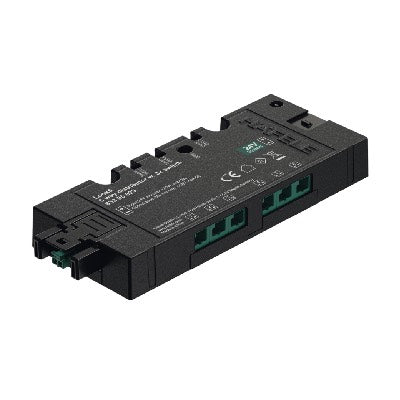

Hafele Loox5 Distributor Box to Box 6-Way Multi Switching 24V

Hafele Loox5 Distributor Box to Box 6-way Multi Switching 24V
Multi-switching function for up to 3 switches
Box to box plug-in connection

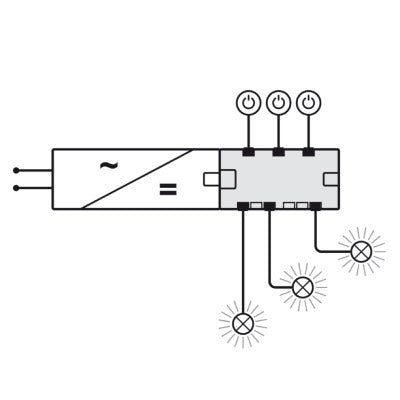

The connection of the distributors with the driver can be done via a box to box plug-in connection or via an extension lead.
Any number of distributors can be connected to the driver
Low voltage plug: Loox5 2-pin 24 V
Input ports: 1 x plug, Loox5 2-pin 24 V box to box
Connections: 1 x socket, Loox5 2-pin 24 V box to box
Connected output ports: 6 x sockets, Loox 2-pin 24 V
Control input ports: 3 x sockets, Loox switch
Power rating: 120 W
Voltage: 24 V
Area of application: For switching on/off and dimming (0-100%)
Material: Plastic
Colour/finish: Black
Dim. (L x W x H): 120 x 50 x 16 mm
Switching function: With multi-switching function
Cable length: 100 mm
Installation: for glue fixing, Screw fixing

3 operating modes:

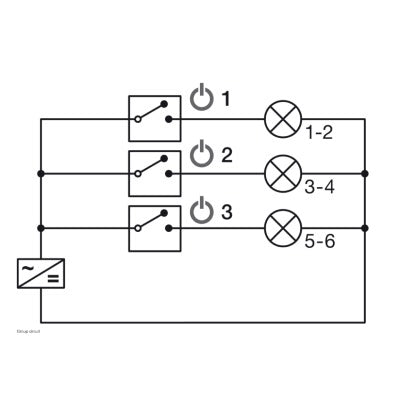

Group connection (red feedback LED)
Switch 1 = outputs 1 and 2
Switch 2 = outputs 3 and 4
Switch 3 = outputs 5 and 6
OR circuit (blue feedback LED)
Switching on using switch 1, 2 or 3. To switch off, all switches that are switched on are operated again
No dimmer may be used in the OR circuit operation mode!
Digital cross-circuit (green feedback LED)
Operate one switch (1, 2 or 3) to switch all outputs on/off

Low voltage socket:Loox5 2-pin 24 V, Loox5 2-pin 24 V box to box
