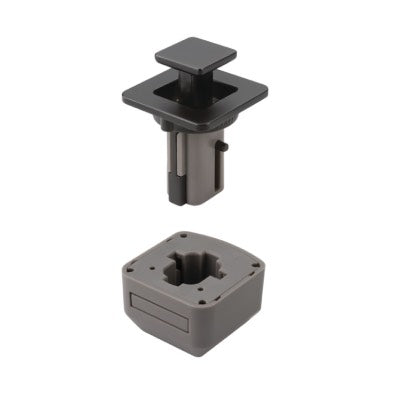

Hafele Push to Open Locking System for Panel Doors

Hafele Push to Open Locking System for Panel Doors
Functional knob, escutcheon and push-to-open mechanism are integrated into one component as Space saving compact design

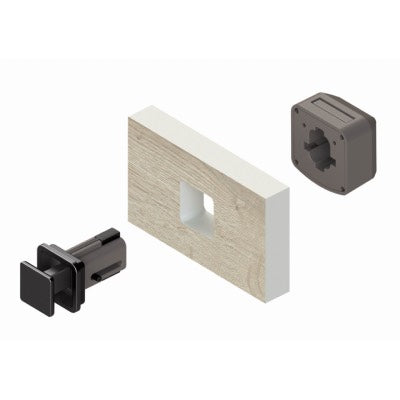

The two assembly units easily fit together and are fixed from the back of the panel
No knob adjustment required - gives a perfectly adjusted position every time
Screwing into the door material is not necessary as the two components fix together through the hole in the door
Material: Knob and Escutcheon: Zinc alloy & Latch: Plastic
Version: For panel thickness 14.5-17 mm
Colour/finish: Black Matt
Application: Ideal for flap doors

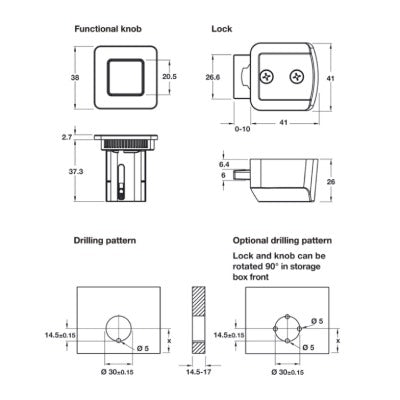

Base Mounting Method: For screw fixing to panel and insertion in Ø 30 mm drill hole

Supplied with
1x Functional knob, including M4 screws
1x Lock
1x Escutcheon
Fixings
