Hafele Concealed Cabinet Hanger Mounting Spider Unhanded, Double wall Plate and Cover Caps

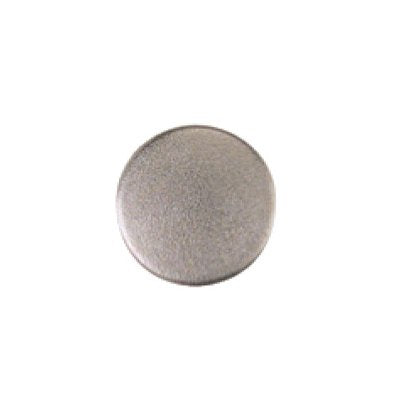

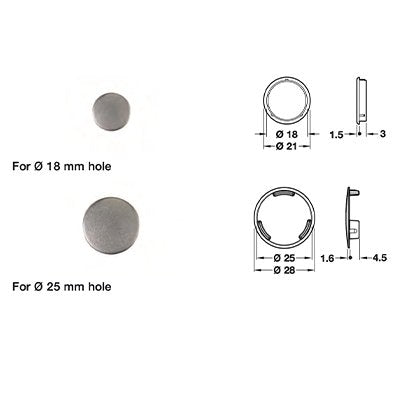

Cabinet hanger concealed behind rear panel, only cover cap visible inside the cabinet
Application: For Hanging Wall Units
Plate thickeness : 1.6 mm
Fixing: Screws

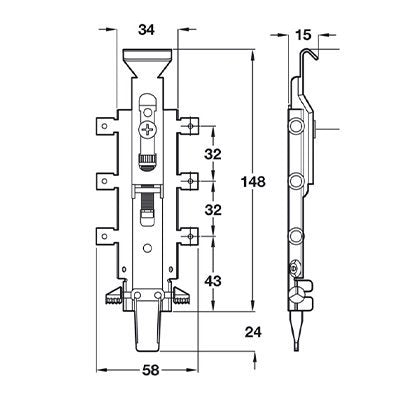

Length: 148 mm
Height: 58 mm
Width: 15 mm
Material: Steel
Finish: Zinc Plated

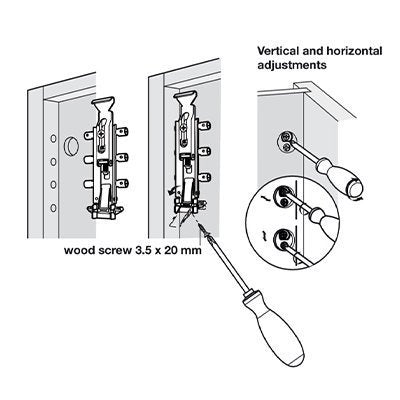

Installation: Dowels/Screw mounting:

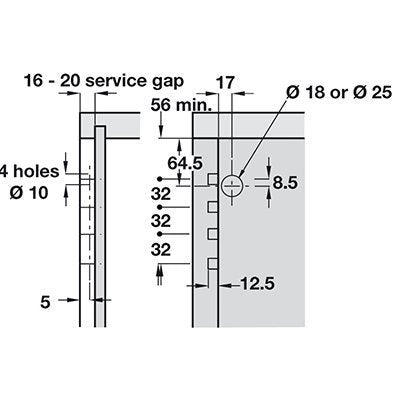

Slots into side cabinet by making four face borings and secured in position by rotating the locking pin with ridges 180°
A 3.5 x 20 mm lateral wood screw permanently secures the cabinet hanger in place (not provided)
Load bearing: 130 kg per pair (Load carrying capacity applies to 2 cabinet hangers bearing an evenly distributed load)
Adjustment: Two-way adjustment:
Vertical adjustment: 0-18 mm (Vertical adjustments through front gear cross socket interconnected to the vertical bolt, which reduces the cabinet adjustment effort)
Horizontal adjustment: 11-17 mm

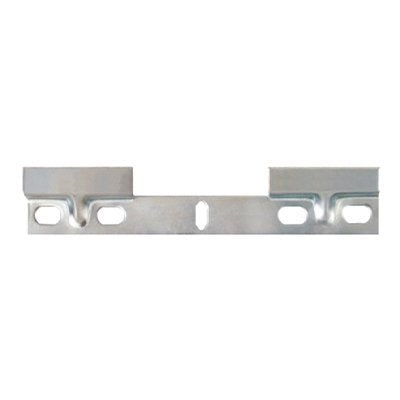

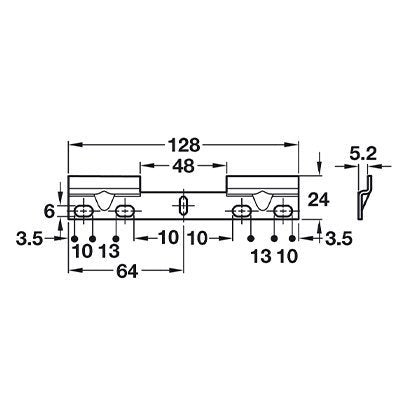

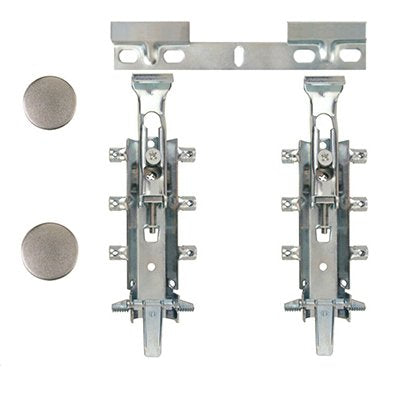

Set Contain: 2 x Spider Wall Hangers, 1 x Double wall Plate and 2 x Cover Caps
