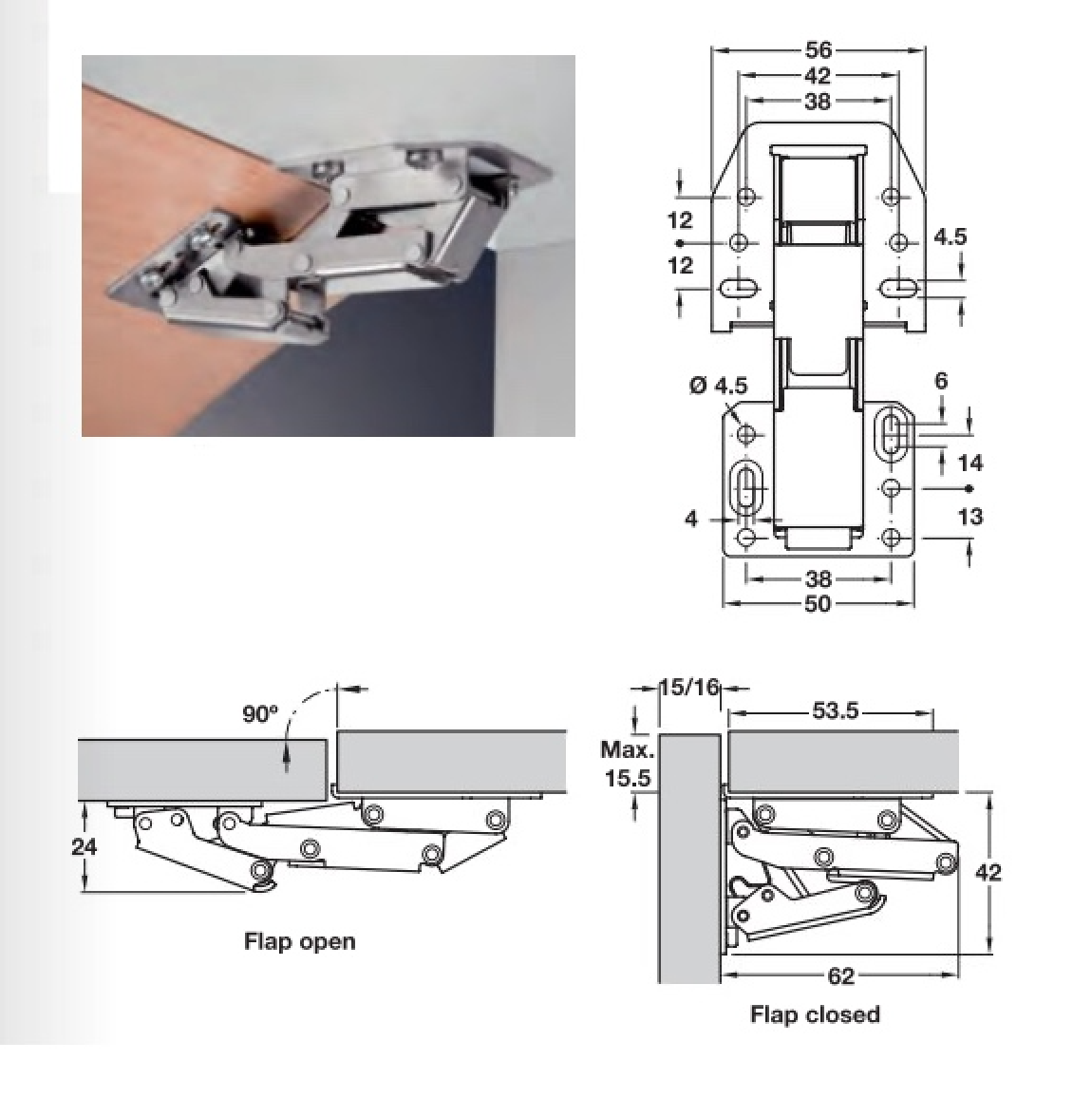

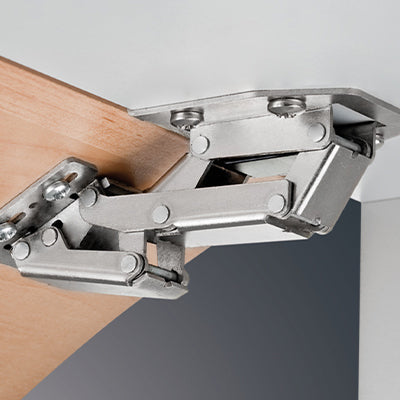

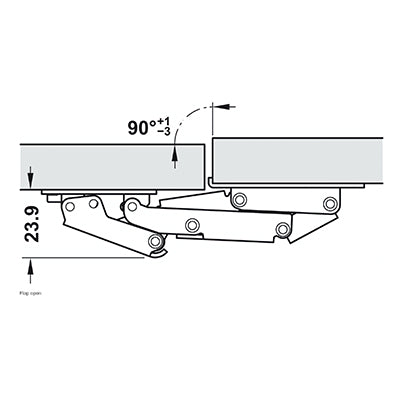

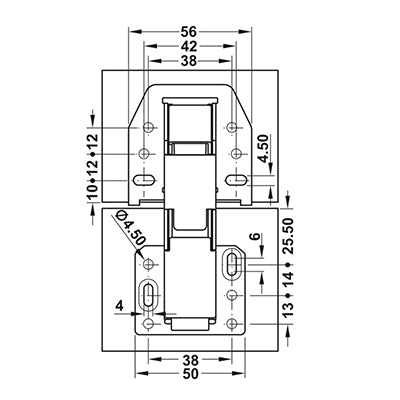

Hafele Swing Up Flap Door Hinge Hafele Overhead Swing Up Flap Caravan Motorhome Hinge Locker Cupboard Door Stay Automatic closing and opening swing up flap hinge up to 2.1kg Opening angle: 90 ̊ Installation: Screw fixing For maximum flap thickness 15 or 16 mm For flap weight up to 2.1 kg For flap width max. 800 mm For flap height max. 340 mm Side and depth adjustment via slots Option: Standard-Non Soft Close or Soft Close version Automatic closing and opening mechanism Material: Steel Finish: Nickel-plated Minimum of 2 required per flap
