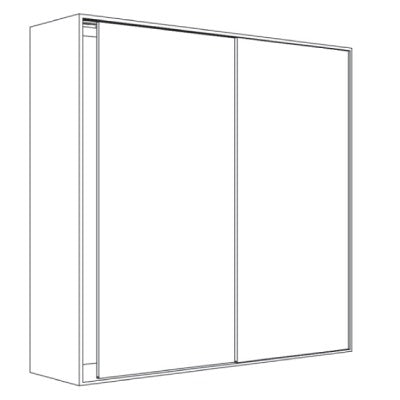

Hawa-Clipo 36 H-IS Sliding Door Fitting for 2 top-running wooden doors up to 36 kg, with screwed on or groove mounted running track, with soft and self closing mechanism. The ease of operation of sliding door fittings is determined by the quality of the rollers. Hawa have re-invented the roller technology for Hawa-Clipo 16 Hawa-Clipo 36 H IS Soft running - Optimised roller geometry and new high-performance plastic Extremely quiet - Minimum running noise thanks to low rolling resistance Durable - Long lasting thanks to new high-performance plastic. Efficient thanks to tool-less door installation as well as easy, intuitive adjustment

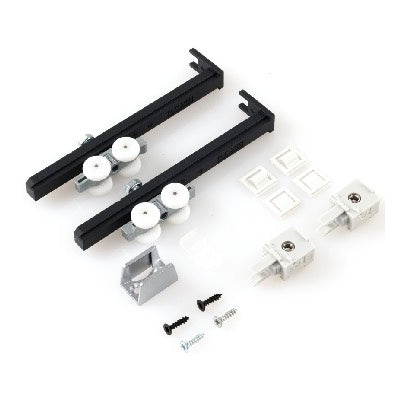

Design type: IS Inslide Maximum door height: 2200 mm Maximum door width: 1000 mm Door thickness: 19-25 mm Soft close: Min. width 260mm for one way soft close. Min. 480mm width for two way soft close. Set Supplied with: 2x Track stopper for top tracks, grey plastic 4x Running gear, clip on, height adjustable +2/-1 mm black plastic rollers, metal axle 4x Housing, screw fixing, for use with running gear, grey plastic 1x Door follower, grey plastic 2x Guide, press fit in Ø 8 mm hole, black plastic

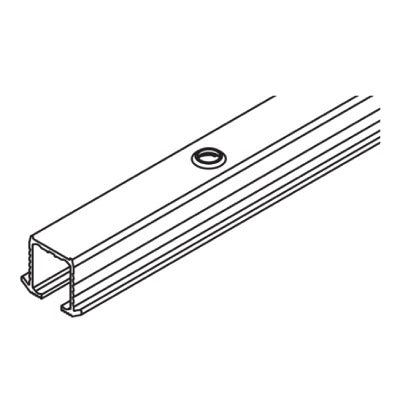

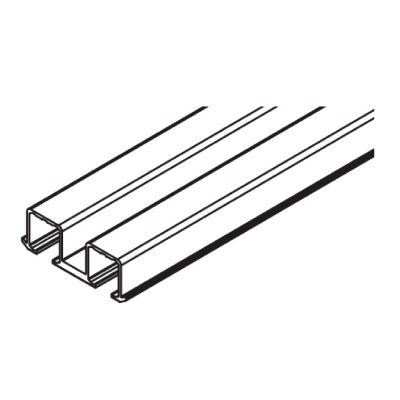

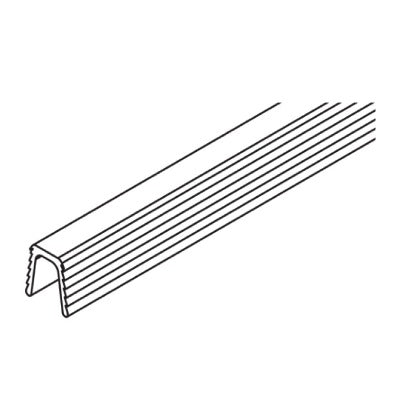

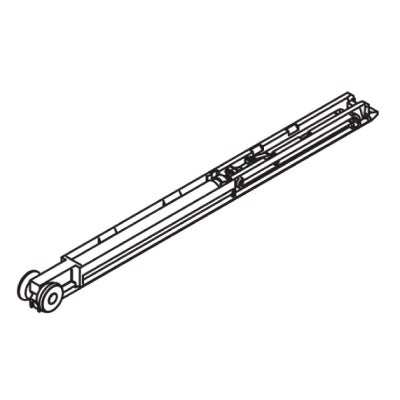

Order Separately from list: Track Single 2500 or 3500 mm Track Double 2500 or 3500 mm Guide if you require 2500 or 3500 Soft Close mechanism 15k or 26kg
