Hawa Concepta III Pivot Door System 25/35 Push

Hawa Concepta III Pivot Door System 25/35 Push

The clever design of Hawa-Concepta III, with re-developed technology means installation is simple and straightforward, with all adjustments carried out from the front, meaning no access panels are required. The omission of a floor channel offers optimum flexible room utilisation with no obstructions. Push-to-open function for handle-less cabinet designs.

For front panels without handles
easy installation thanks to high degree of pre-assembly
intuitive adjustment
ergonomic movement support for even, smooth movement
Suitable for; Inset and overlay

Suitable for room partitioning solutions as there is no need for a base panel and top panel in wall recesses
Sets are handed for left and right hand use
Wall recesses are concealed without the need for a cabinet

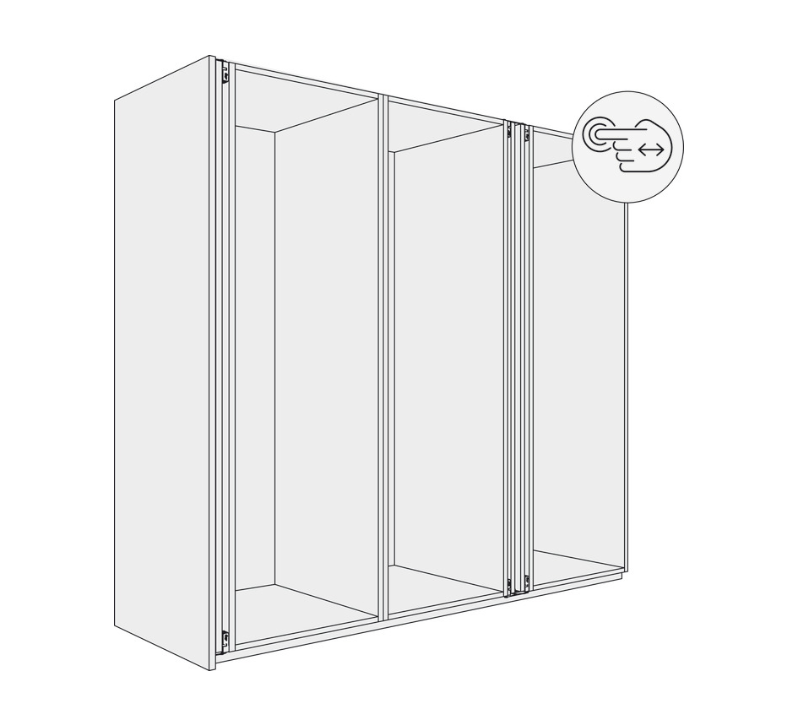

Allowing handle-less operation
Ergonomic support for smooth, even movement
All adjustments are carried out from the front
All components are screwed onto the intermediate panel

Model Available: 25/35 kg Push
For door material: Wood/Mdf
For door width: 440 – 750mm
For door thickness: 18 – 26mm
Running gear version: 2 rollers
Running gear guided by: Ball bearing
Version available: left and right sets available with Push-to-Open for front panels without handles

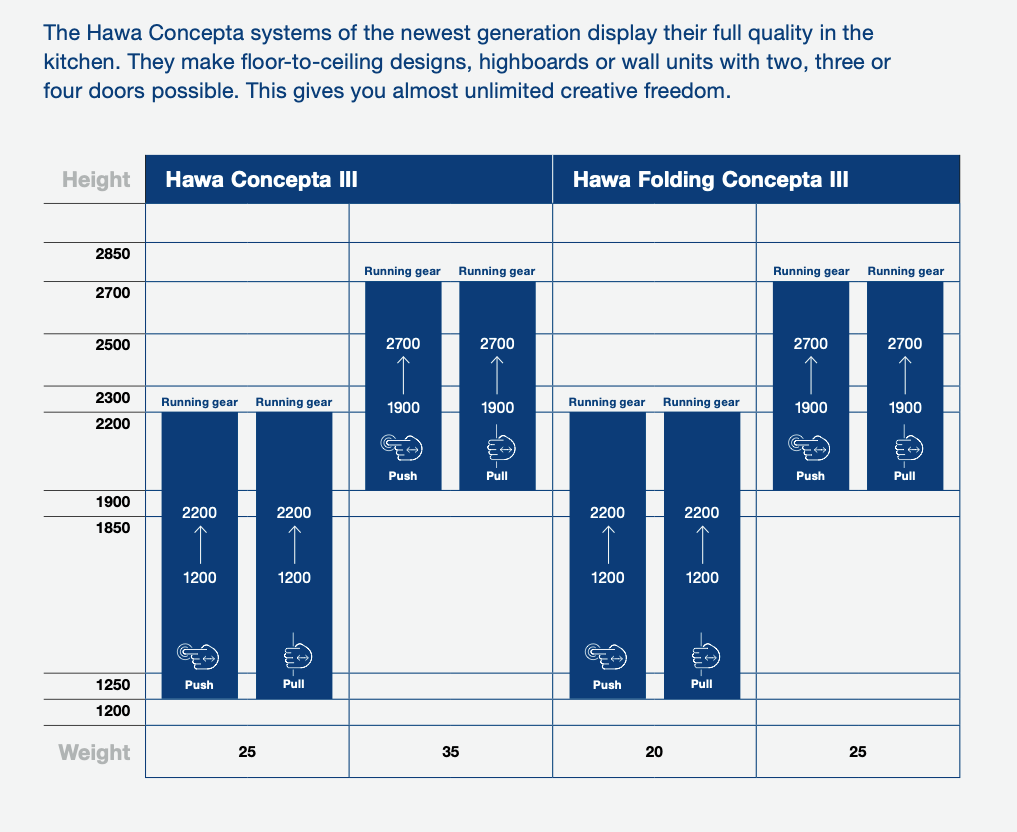

Note on door height and weight
≤25 kg: 1,200–2,200 mm,
≤35 kg: 1,900–2,700 mm

Order reference
Planofit door straightening system must be used with HAWA-Concepta to add rigidity to wooden doors, must be ordered separately
Order connector sets and connector connecting profile separately

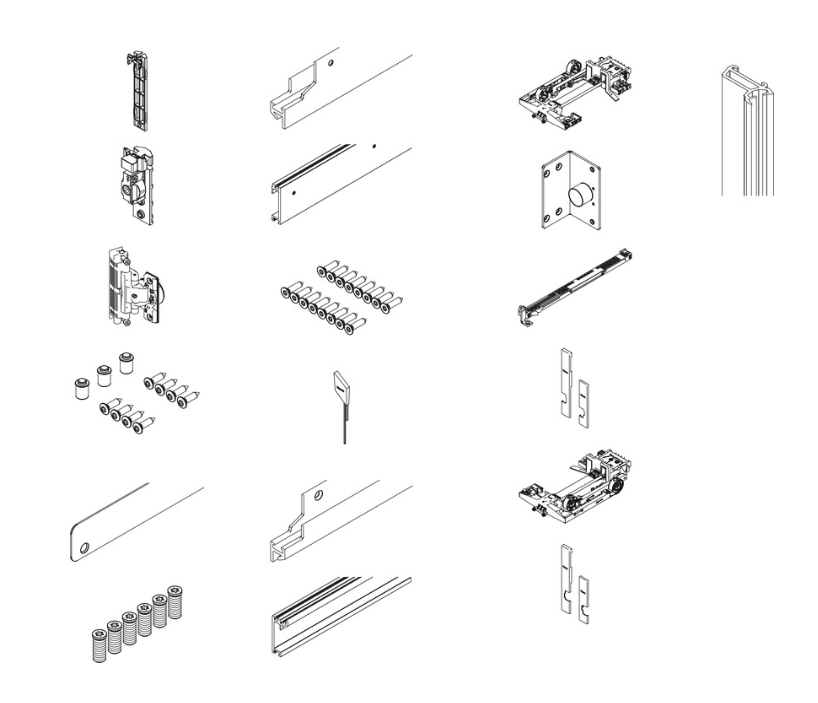

Supplied with
3x Slot nuts
1x Hinge mounting plate
3x Concealed hinge
1 set for Concealed hinges
2x Magnetic guide profile
1 set Euro screw set
1x Bottom guide track, left
1x Top running track, left
1 set Countersunk screw set
1 set Adjusting tools set
1x Push slide-in unit, left
1x End stop bracket
1x Push ejector
1 set Push-to-open with adaptor plate
1 set Push set of cover caps for left hand stop
1x Upright profile, length 1974 mm
