Hawa Concepta Pivot Sliding Door System 25/30/40/50kg

Hawa Concepta Pivot Sliding Door System for 25/30/40/50kg
Hawa Sliding Solutions you can design rooms to be more functional, economical, and more flexible and thus optimize the versatility of the room.
As the global technology and market leader, Hawa create new applications for sliding and simplify the use thereof every day.

The Hawa Concepta fittings are real quick-change artists which find a brilliant solution to any space problem.
Let yourself be inspired by a wide range of cabinet concepts!

Maximum door weight: 25-50 kg.
Door width: 300-900 mm, height: 1250-2850 mm, thickness: 19-50 mm.
The connector profile makes it easier to assemble cabinet designs with doors striking against the top and bottom cabinet sections.
Door is automatically pulled into pocket.
Well thought-out shock absorber in the end positions provides a high degree of movement comfort.

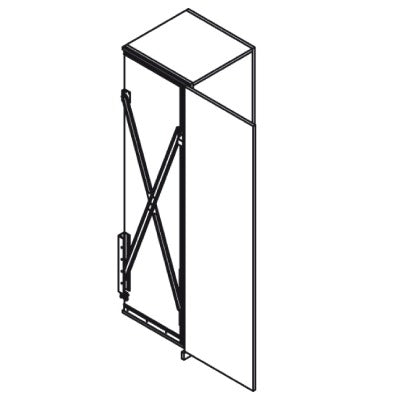

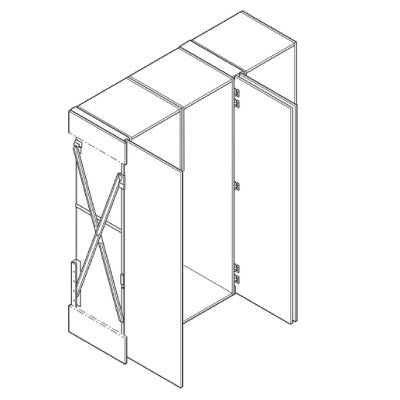

Unique scissor technology accommodates large and heavy doors.
All components are screwed onto the intermediate panel.
Wall recesses can be concealed without a cabinet body.
The same set can be used for left and right hand side applications.

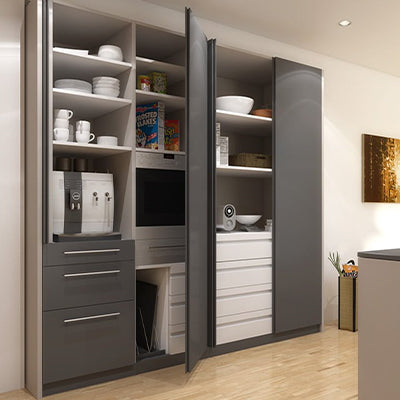

Its advantages are obvious wherever variable room utilization and unobstructed access should leave a tidy impression, for instance the home office in the bedroom, or to hide appliances in the kitchen or the washing machine in the bathroom. Even walk-in cabinets are realizable. Certified LGA.

All Variation Available
HAWA27648 Set for one Door Height 1250-1820 mm Load 25 kg
HAWA27649 Set for one Door Height 1851-2300 mm Load 30 kg
HAWA27650 Set for one Door height 1851-2500 mm Load 40 kg
HAWA276511 Set for one Door Height 2301-2850 mm Load 50 kg
