Hawa Folding Concepta III Slide Door System 20/25 Pull

Hawa Folding Concepta III Bi-Fold Door System 20/25kg Pull

Pivoting doors, sliding them in at the side and parking them in the smallest of spaces – Hawa Folding Concepta III extends the design possibilities by another dimension, which is folding the doors beforehand. This leaves room for structures with a particularly large area, since two pairs of doors make it possible to have cabinet fronts measuring up to 3000 mm wide and 2700 mm high

Folding and pivot sliding system for bi-folding pockets doors. Flush cabinet fronts can be fully opened from end to end to give complete access to cabinet contents, but are also completely concealed once doors are opened.

Based on the HAWA-Concepta the system is for bi-folding pocket doors

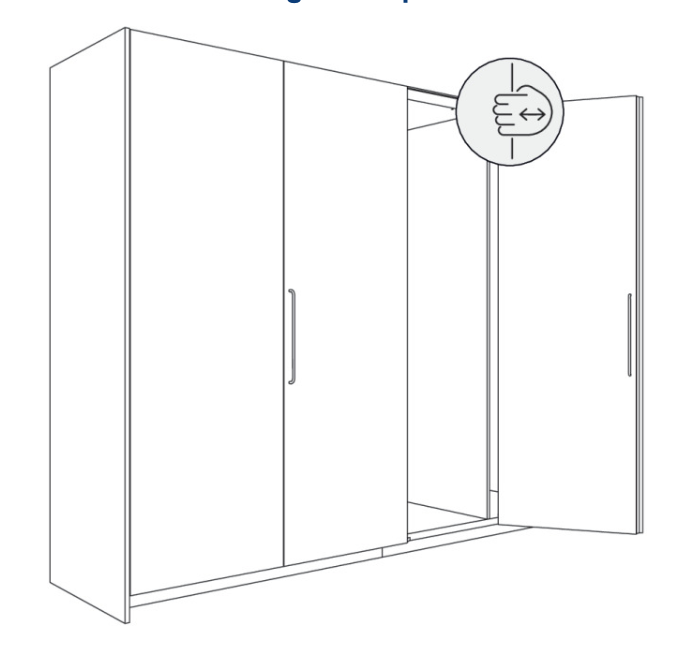

Two pairs of folding doors enable cabinet fronts to be stored in the cabinet, fully flush with the external side
Opened: Free access to the entire cabinet front
Closed: Flush with the adjacent areas
Application: Inset or Overlay

Set for one bi-folding door pair, with door handles, includes all the hardware components.
Sets are handed left and right and available for door heights of 1200-2200 mm (20 kg) and also 1900-2700 mm (25 kg). Top track and bottom profile are fitted easily from the front
For door material: Wood
Set: Set without tracks
Number of door leaves per set: 1.00
For door width: 440 – 750 mm
Note on door height:
≤20 kg: 1,200–2,200 mm,
≤25 kg: 1,900–2,700 mm
Door Thickness: 18-26mm
Colour/finish: Silver coloured, Anodised
Version:

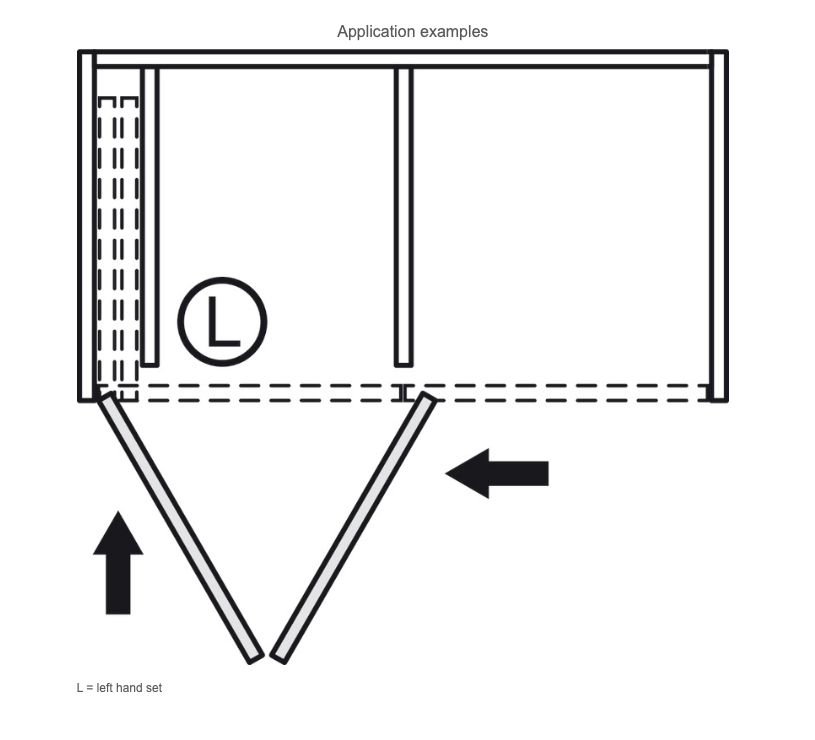

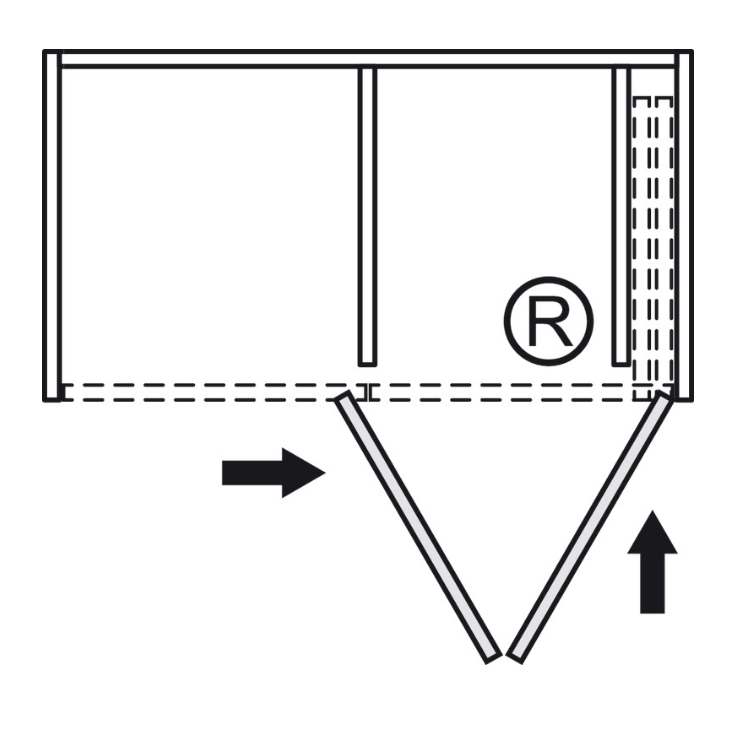

Left hand and right hand sets available
With soft closing mechanism for front panels with handles
For door thickness: 18 – 26 mm
Running gear version: 2 rollers
Running gear guided by: Ball bearing

Order for 2-door applications:
1 Hawa Folding Concepta III 20/25 Push set, left or right, silver coloured anodised
1 two-door track set, left or right, silver coloured anodised

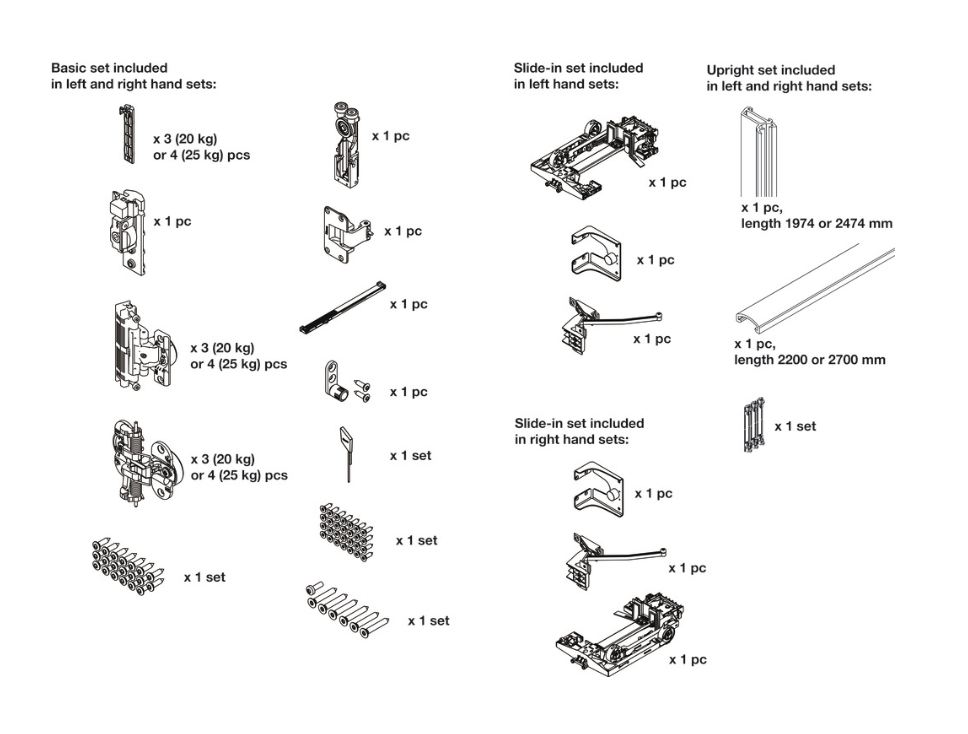

Supplied with
Hawa Folding Concepta III Pull basic set, 20 or 25 kg:
A Slot nuts for hinge attachment, black plastic, 3 (20 kg) or 4 (25 kg) pcs
B Mounting plate for hinge with height-adjustment, nickel plated steel, 1 pc
C Concealed hinge with soft closing mechanism and closing spring, nickel plated steel, 3 (20 kg) or 4 (25 kg) pcs
D Centre concealed hinge, not spring loaded, matt nickel plated steel, 3 (20 kg) or 4 (25 kg) pcs
E Screw for concealed hinges and centre concealed hinges, 4x16 mm, set of 20 pieces, 1 set
F Folding running gear, nickel plated, 1 pc
G Folding running gear hinge, 1 pc
H Soft closing mechanism with end stop, 1 pc
I Stop buffer adjustable, anthracite plastic, 1 pc
J Adjusting tools set, 1 set
K Countersunk head screw, 4.5x16 mm, zinc-plated steel, set of 28 pieces, 1 set
L Screw set for double running track and connector attachment at the bottom, 1 set
Hawa Folding Concepta III Pull slide-in set, left or right handed:
O Slide-in unit Hawa Folding Concepta III 20/25 Pull, left
P Pull end stop bracket, zinc-plated steel
Q Slide-in securing mechanism, black plastic
R Slide-in unit Hawa Folding Concepta III 20/25 Pull, right
Hawa Folding Concepta III upright set, 20 or 25 kg:
U Upright profile, length 1974 for door height 1200–2200 mm (20 kg), or 2474 mm for door height 1900-2700 mm (25 kg), anodised aluminium
V Cover panel for door joint, length 2200 mm or 2700 mm, for door height 1200–2200 or 1900-2700 mm, anodised aluminium
W Retaining clip for cover panel, black plastic, set of 6 pieces

Planofit door straightening system must be used with HAWA-Concepta to add rigidity to wooden doors; must be ordered separately.
Track set for 2, 3 or 4 must be order separately
