Hawa Folding Concepta III Slide Door System 20/25 Push

Hawa Folding Concepta III Slide Door System 20/25 Push

Pivoting doors, sliding them in at the side and parking them in the smallest of spaces – Hawa Folding Concepta III extends the design possibilities by another dimension, which is folding the doors beforehand. This leaves room for structures with a particularly large area, since two pairs of doors make it possible to have cabinet fronts measuring up to 3000 mm wide and 2700 mm high
Folding and pivot sliding system for bi-folding pockets doors. Flush cabinet fronts can be fully opened from end to end to give complete access to cabinet contents but are also completely concealed once doors are opened.

Based on the HAWA-Concepta the system is for bi-folding pocket doors
Two pairs of folding doors enable cabinet fronts to be stored in the cabinet, fully flush with the external side
Opened: Free access to the entire cabinet front
Closed: Flush with the adjacent areas
Application: Inset or Overlay

Set for one bi-folding door pair, with door handles, includes all the hardware components, scissor and top track
Sets are handed left and right and available for door heights of 1200-2200 mm (20 kg) and also 1900-2700 mm (25 kg)

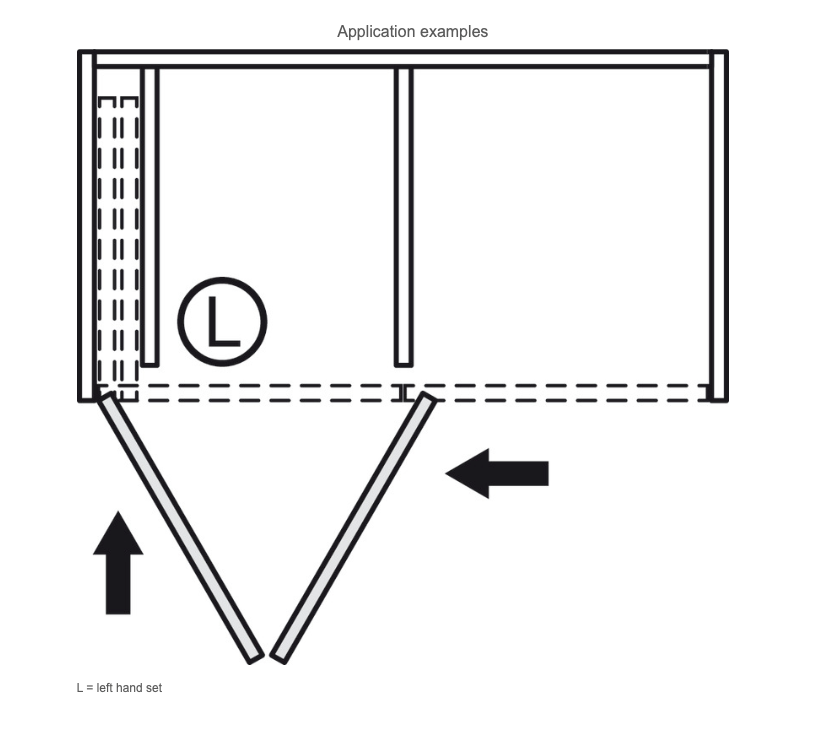

Left and right hand sets available

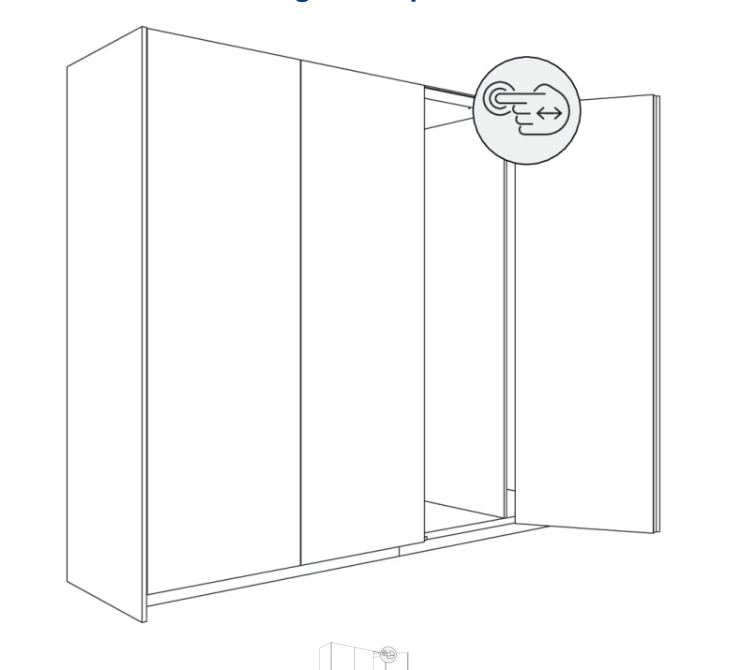

With push-to-open for front panels without handles
Top track and bottom profile are fitted easily from the front

For door material: Wood
Set: Set without tracks
Number of door leaves per set: 1.00
For door width: 440 – 750 mm
Note on door height and weight:
≤20 kg: 1,200–2,200 mm,
≤25 kg: 1,900–2,700 mm
Version: Left hand and right hand sets available With Push-to-Open for front panels without handles
Colour/finish: Silver coloured, Anodised
For door thickness: 18 – 26 mm
Material/finish: Silver coloured, Anodised
Running gear version: 2 rollers

Running gear guided by
Ball bearing
Order 2-door applications:
1 Hawa Folding Concepta III 20/25 Push set, left or right, black or silver coloured anodised
1 two-door track set, left or right, silver coloured anodised

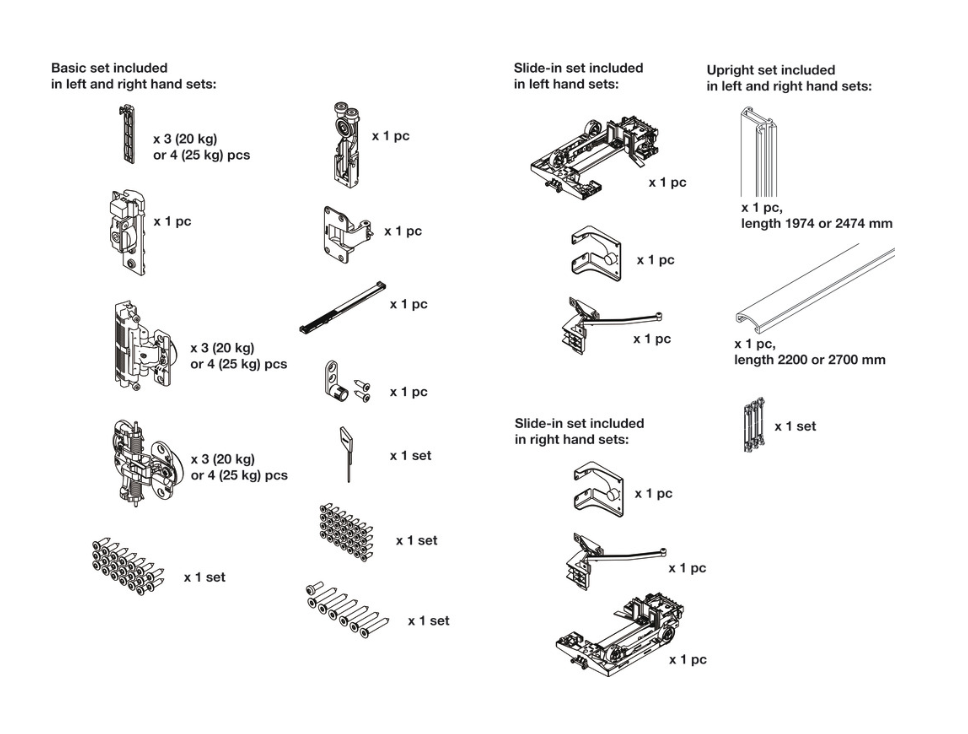

Supplied with
Hawa Folding Concepta III Push basic set, 20 or 25 kg:
A Slot nuts for hinge attachment, black plastic, 3 (20 kg) or 4 (25 kg) pcs
B Mounting plate for hinge with height-adjustment, nickel plated steel, 1 pc
C Concealed hinge without soft closing mechanism and closing spring, nickel plated steel , 3 (20 kg) or 4 (25 kg) pcs
D Center concealed hinge, spring loaded, matt nickel plated steel, 3 (20 kg) or 4 (25 kg) pcs
E Screw for concealed hinges and centre concealed hinges, 4x16 mm, set of 20 pieces, 1 set
F Folding running gear, nickel plated, 1 pc
G Folding running gear hinge, 1 pc
H Screw set for Push-to-open and folding door soft closing mechanism, 1 set
I Folding door soft closing mechanism, 1 pc
J Push-to-open for folding door, 1 pc
K Counterplate for Push-to-open folding door, black plastic
L Adjusting tools set, 1 set
M Countersunk head screw, 4.5x16 mm, zinc-plated steel, set of 28 pieces, 1 set
N Screw set for double running track and connector attachment at the bottom, 1 set
Hawa Folding Concepta III Push slide-in set, 20 or 25 kg, left or right handed:
O Slide-in unit Hawa Folding Concepta III 20 or 25 Push, left, 1 pc
P End stop bracket for Push ejector, zinc-plated steel, 1 pc
Q Push ejector, black plastic, 1 pc
R Slide-in securing mechanism, black plastic, 1 pc
S Adhesive plate for Push-to-open folding door, with double-sided adhesive tape, silver-grey, 2 pcs
T Slide-in unit Hawa Folding Concepta III 20 or 25 Push, right, 1 pc
Hawa Folding Concepta III upright set, 20 or 25 kg:
U Upright profile, length 1974 for door height 1200–2200 mm (20 kg), or 2474 mm for door height 1900-2700 mm (25 kg), anodised aluminium
V Cover panel for door joint, length 2200 mm or 2700 mm, for door height 1200–2200 or 1900-2700 mm, anodised aluminium
W Retaining clip for cover panel, black plastic, set of 6 pieces

Planofit door straightening system must be used with HAWA-Concepta to add rigidity to wooden doors, must be ordered separately.
Tracke Set for 2, 3 or 4 must be ordered separately.
