LED Door Sensor Switch Adjustable Modular for Loox LED Lights

LED Door Sensor Switch Adjustable Modular for Loox LED Lights.

These Ø 12 mm switches can be recessed or surface mounted
Function as dimmer sensor switch or door sensor switch can be changed via integrated microswitch

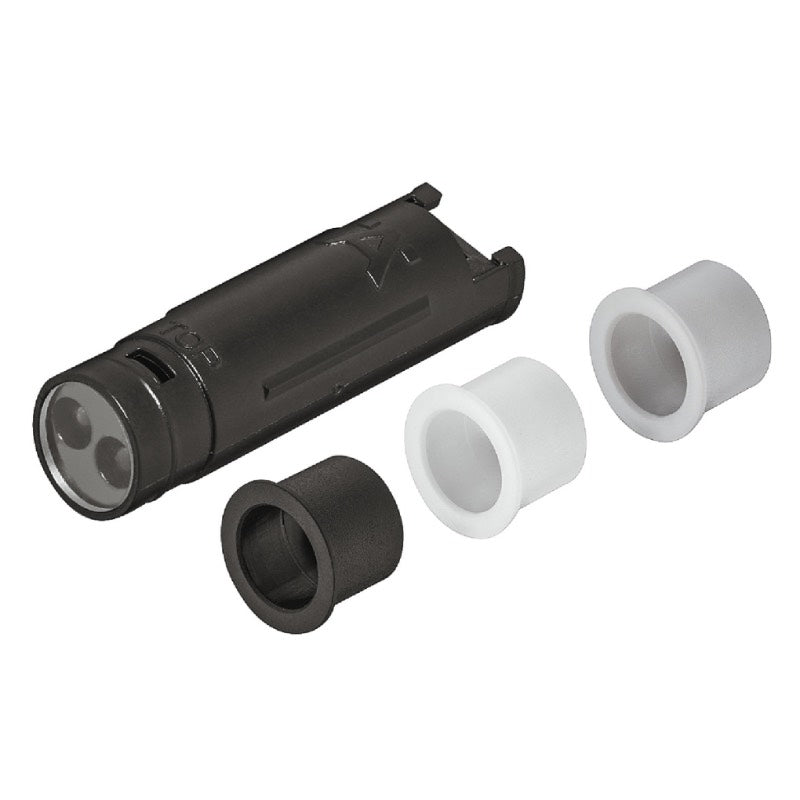

Colour adjustment with supplied cover sleeves

Version:adjustable as dimmer sensor switch (50-100%) or as door sensor switch (dimming value remains stored)

Switching contact: Touchless
Control output ports: 1 x, Loox switch
Colour/finish: Black
Switching function

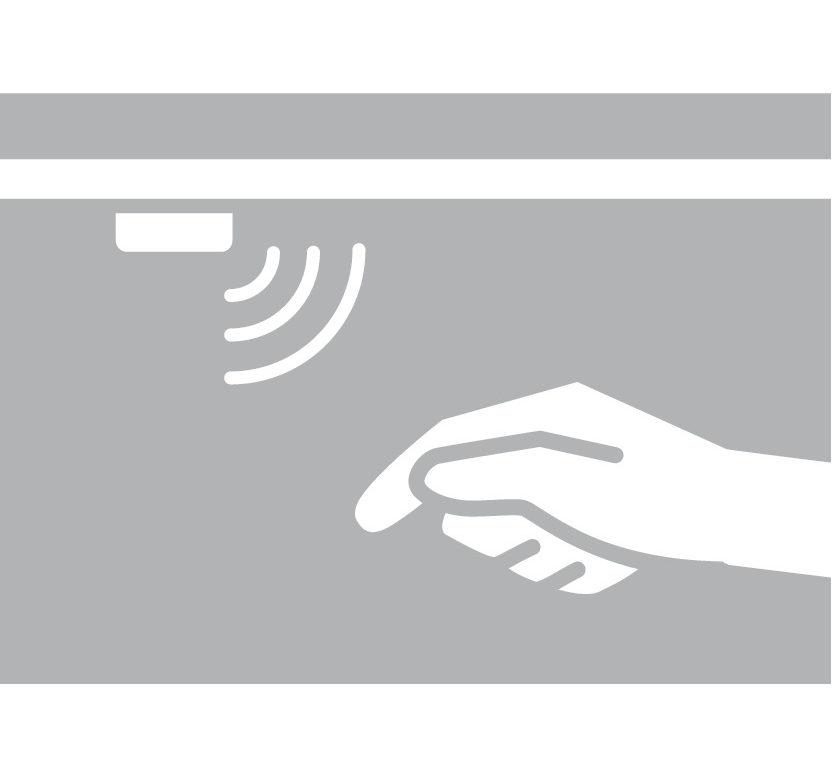

On/off soft, touchless, Door open = light on, door closed = light off, Dimming
Memory function: Yes (also in currentless condition)
Drill hole Ø : 12.00 mm
Length: 44.50 mm
Sensor range: 0 – 75 mm
Material: Plastic

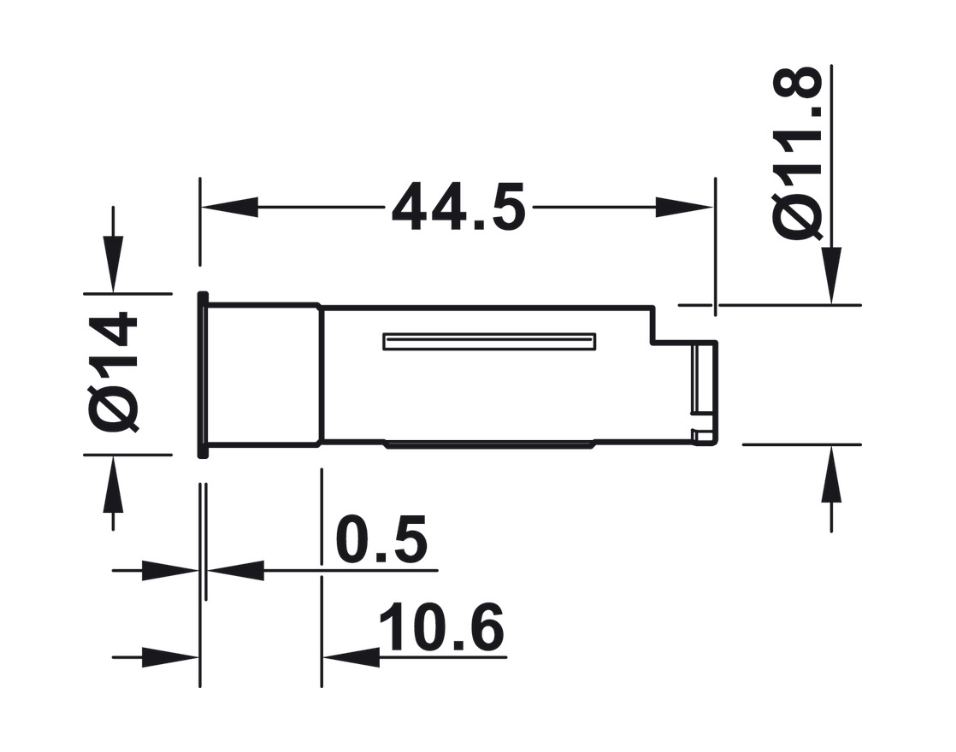

Dim. (Ø x L): 11.8 x 44.5 mm
Power consumption: 0.30 W
Degree of protection: IP20
Installation: For mounting in drilled hole, or for plug fitting into housing
Finish: Coloured cover sleeve suitable for drill hole in furniture and housing

Please order lead with snap-in connector for modular switches separately. Length 2 m: Cat. No. 833.89.142
