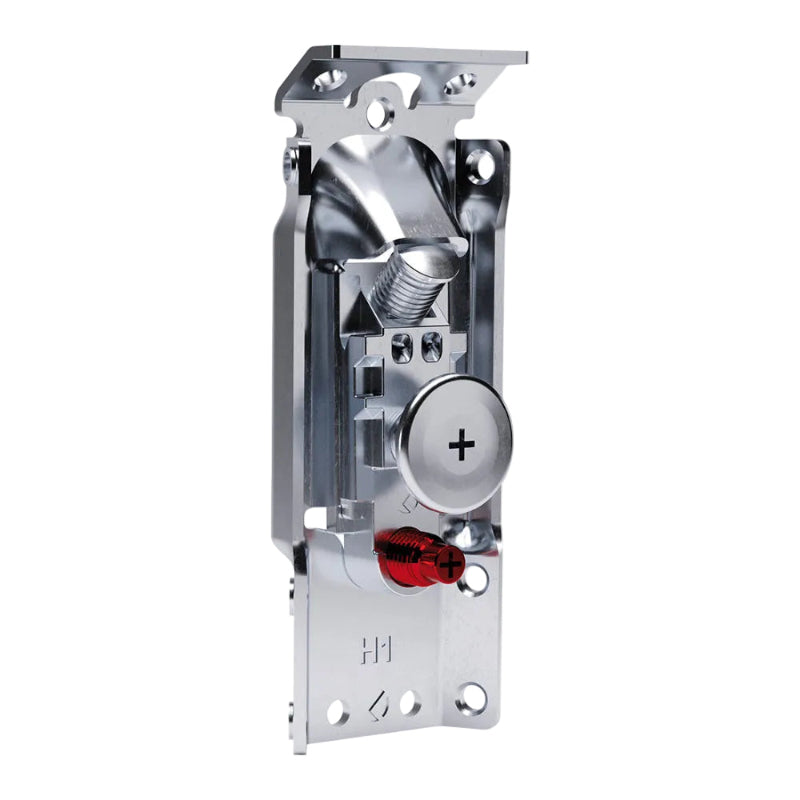

Libra Concealed Cabinet Hanger H1 Unhanded Fixing

Libra Concealed Cabinet Hanger Mounting H1 Unhanded Fixing

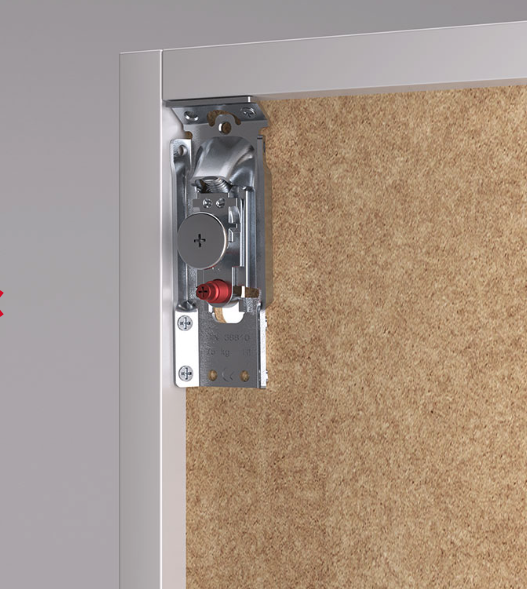

Cabinet hanger concealed behind rear panel, only cover cap is visible inside the cabinet
Features an innovative anti-turnover device with vertical and horizontal adjustment.
Application: For Hanging Wall Units
Load bearing on two hangers: 130Kg
Fixing: Screws
Length: 100 mm
Depth: 15 mm
Width: 37 mm
Material: Steel
Finish: Zinc Plated
Load bearing: 130 kg per pair (Load carrying capacity applies to 2 cabinet hangers bearing an evenly distributed load)
Adjustment: Two-way adjustment: Vertical: 13mm, Horizontal: 12mm

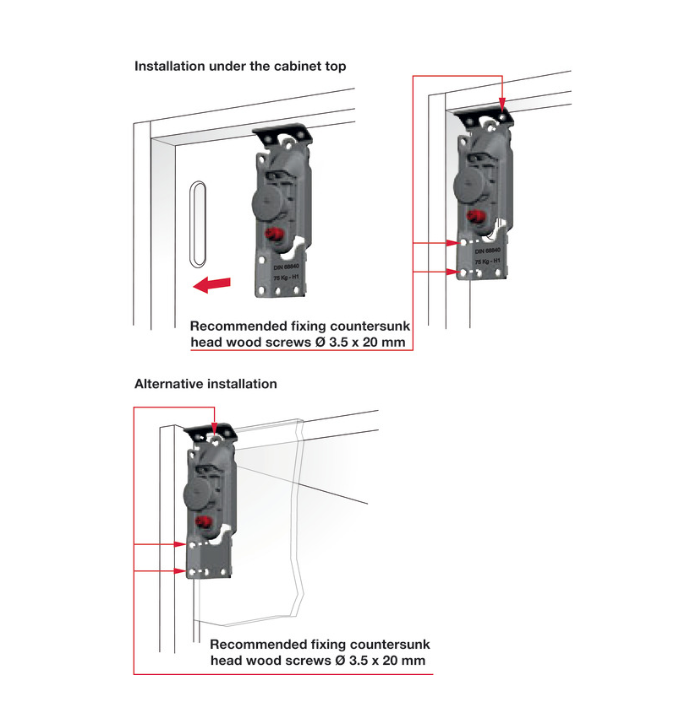

Installation: Dowels/Screw mounting:

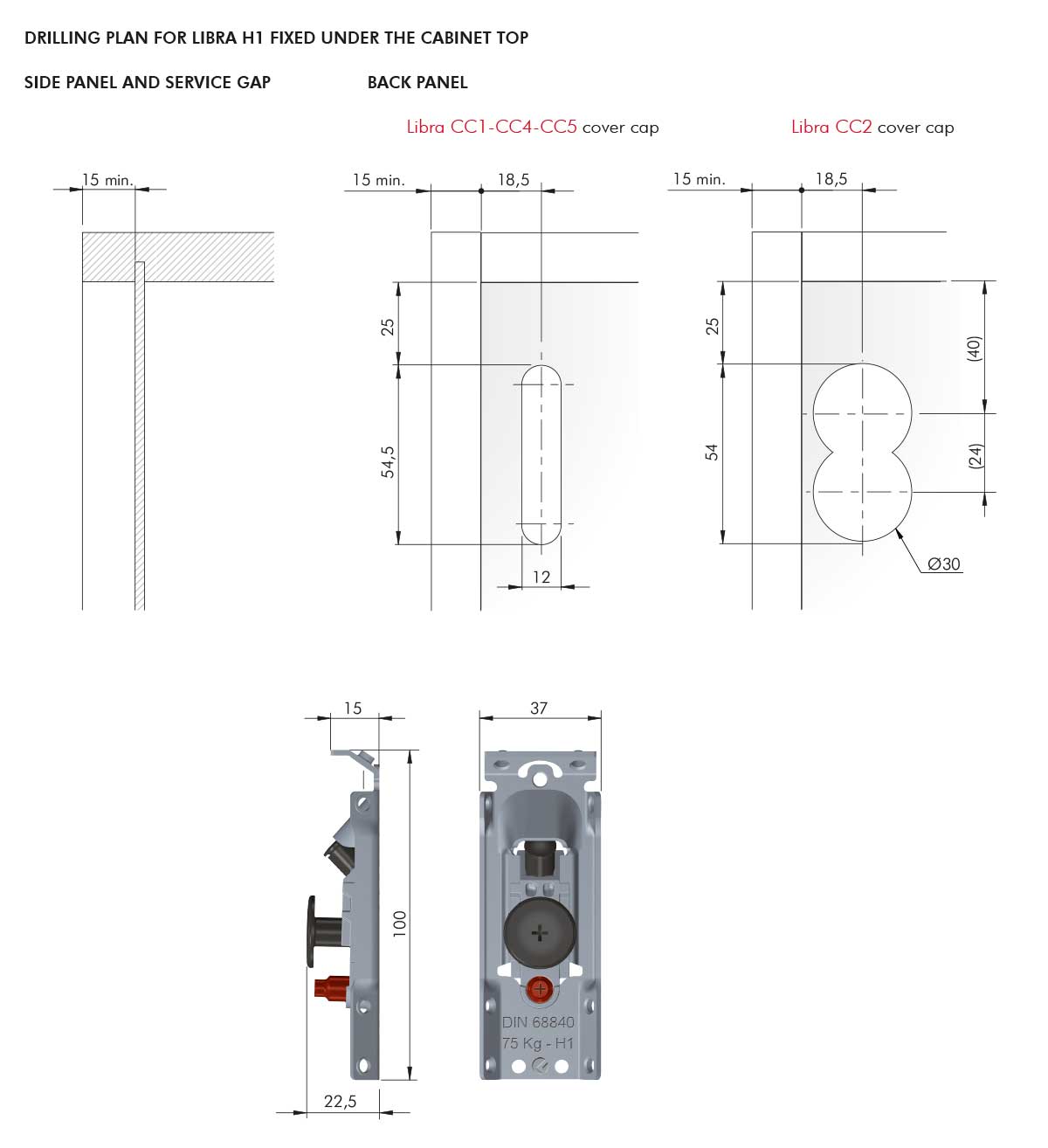

Slots into side cabinet by making four face borings and secured in position by rotating the locking pin with ridges 180°

Sold as a single item
Order separately: Double wall Plate or Cover Caps
