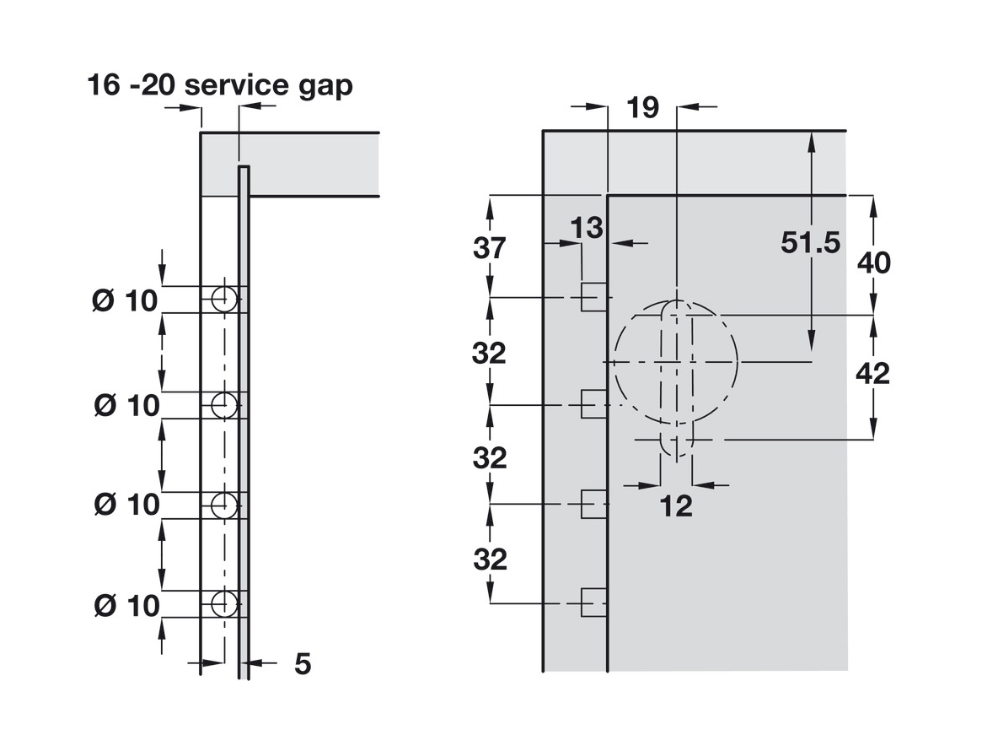

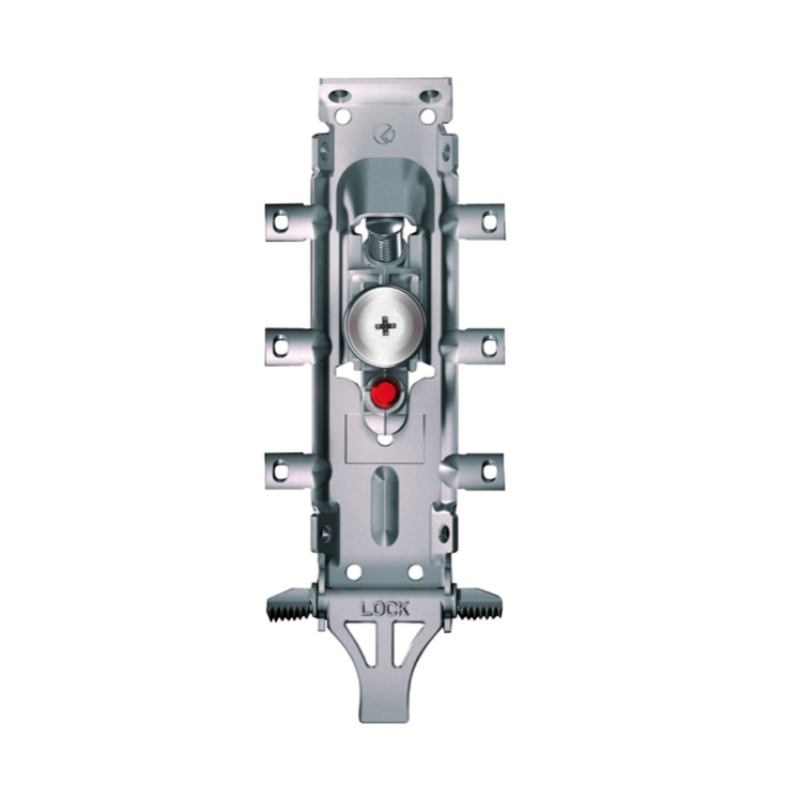

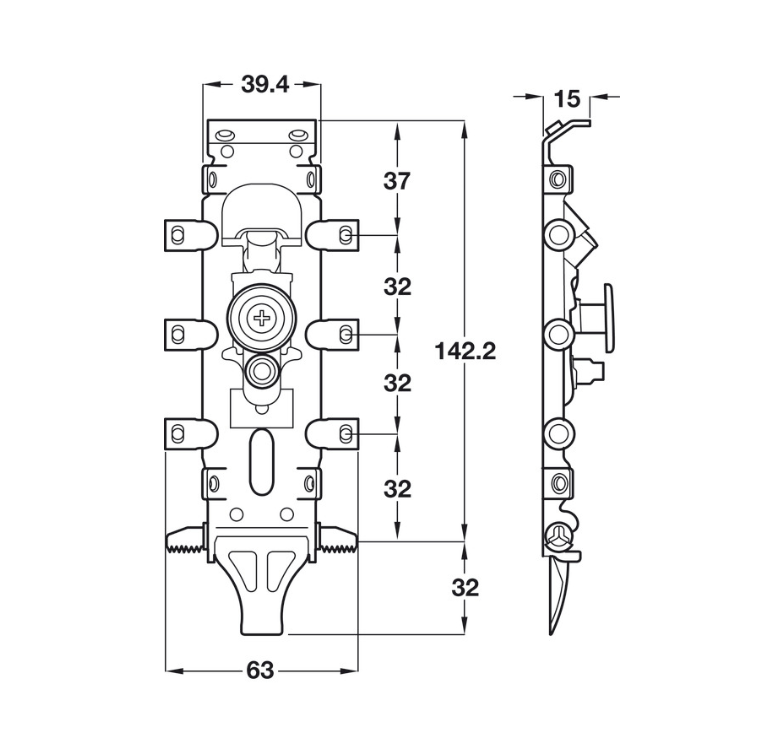

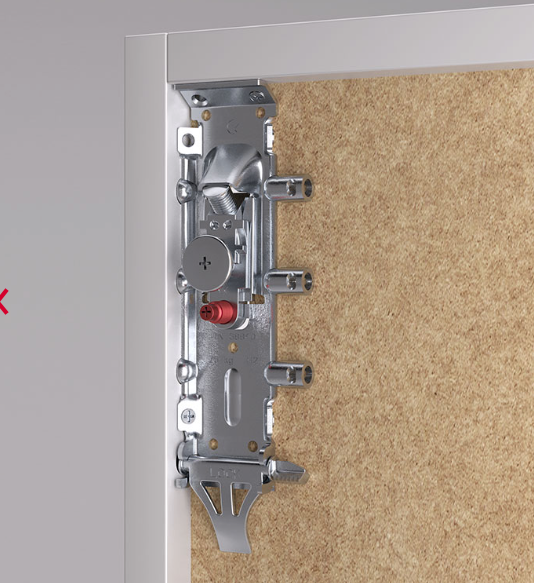

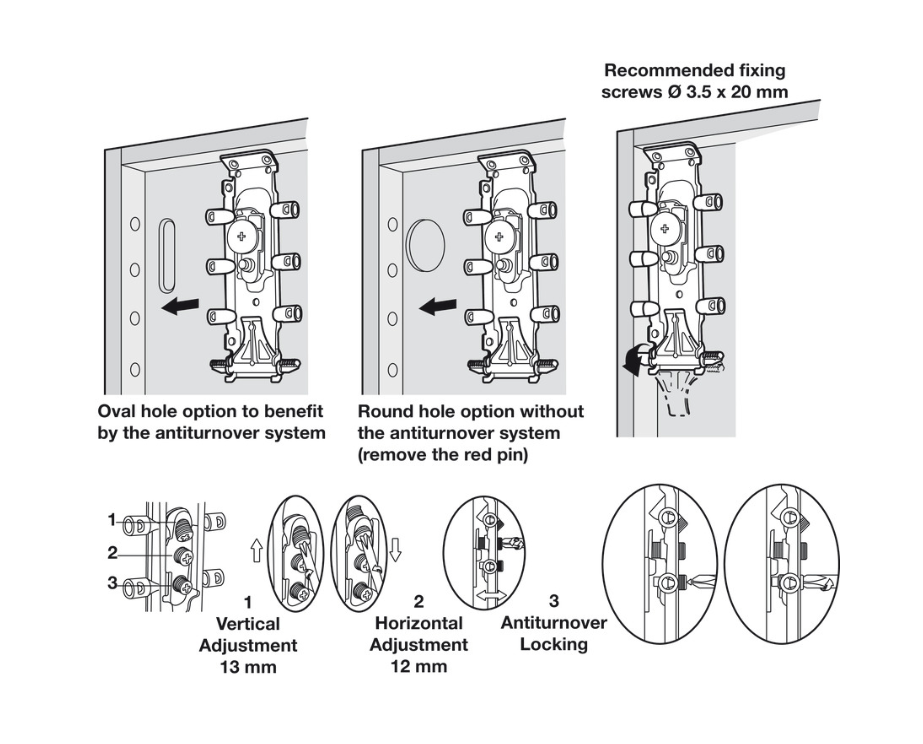

Cabinet hanger concealed behind rear panel, only cover cap is visible inside the cabinet Features an innovative anti-turnover device with vertical and horizontal adjustment. Application: For Hanging Wall Units Load bearing on two hangers: 150Kg Fixing: Screws Length: 142 mm Depth: 15 mm Width: 63 mm Material: Steel Finish: Zinc Plated Load bearing: 150 kg per pair (Load carrying capacity applies to 2 cabinet hangers bearing an evenly distributed load) Adjustment: Two-way adjustment: Vertical: 13mm, Horizontal: 12mm Installation: Dowels/Screw mounting: Slots into side cabinet by making four face borings and secured in position by rotating the locking pin with ridges 180° Sold as a single item Order separately: Double wall Plate or Cover Caps
