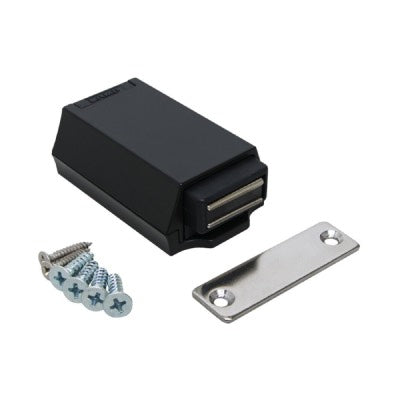

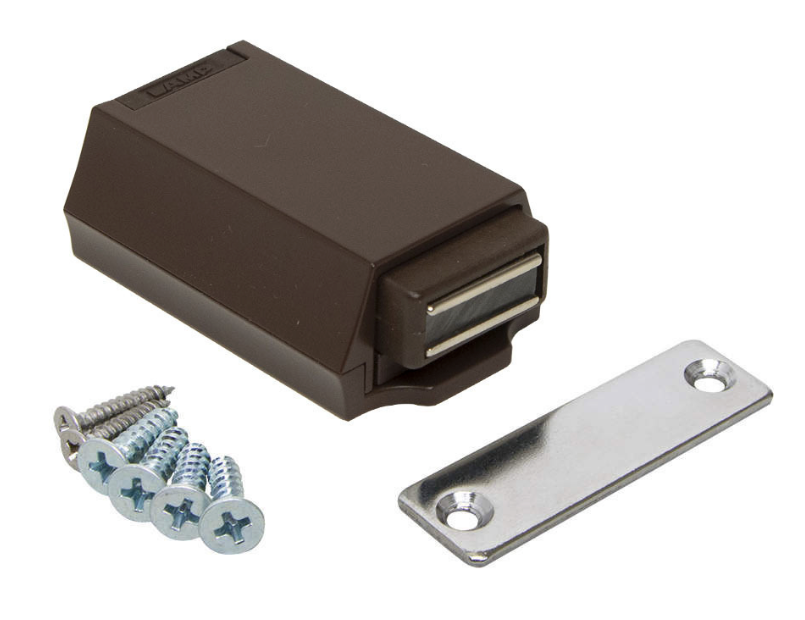

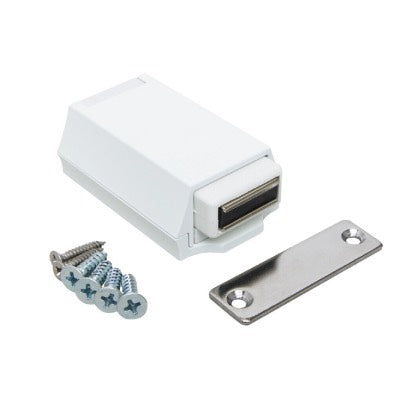

Magnetic Touch Latch Heavy Duty ML-ZN80 Sugatsune
The body is made of metal for high durability
Designed for use on large doors due to its strong push force,
The plastic part is flame resistant and compliant with the UL94V-0 standard
The magnet part has an allowance of 1.5° on each side to catch the strike plate correctly
This helps the magnet to adjust even if there is a slight misalignment
The screws for the mounting plate are designed to be hidden from view

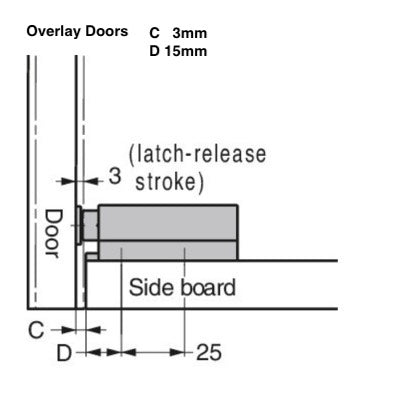

For overlay doors, please make sure there is correct clearance between the door and side board
The magnetic force may vary, please confirm with actual products before use

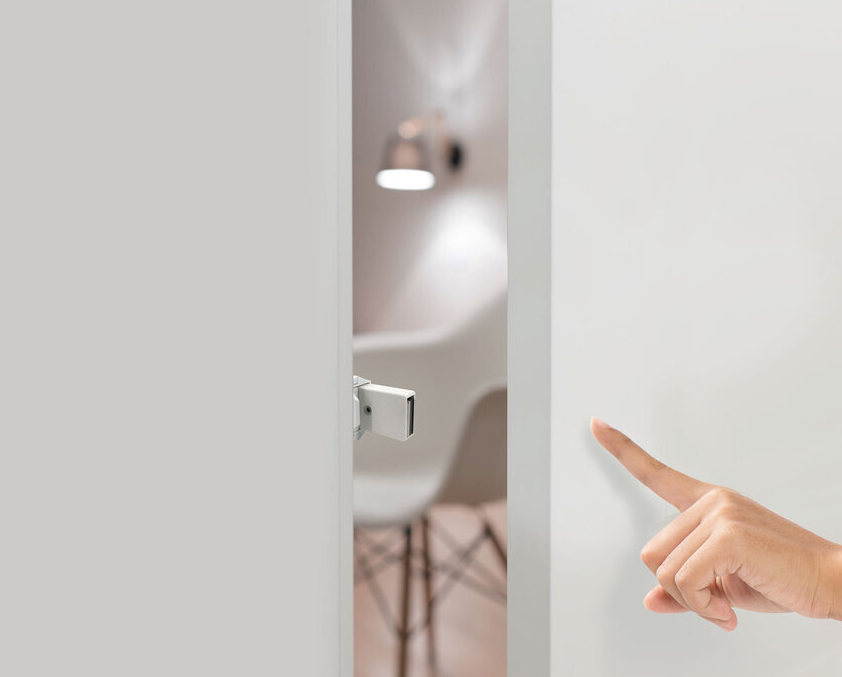

Install the body at the height where people are supposed to push
Use hinges which do not have catch functions like J95.

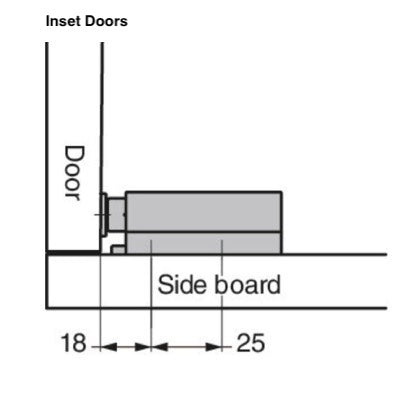

Suitable for: Inset and Overlay Doors

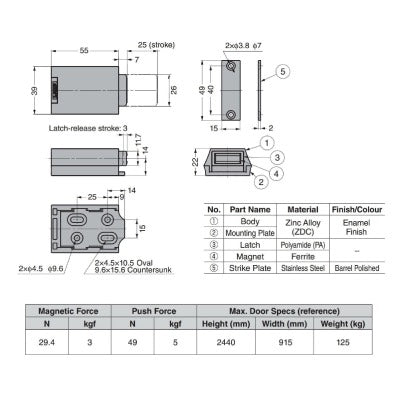

Body Material: ZnAl

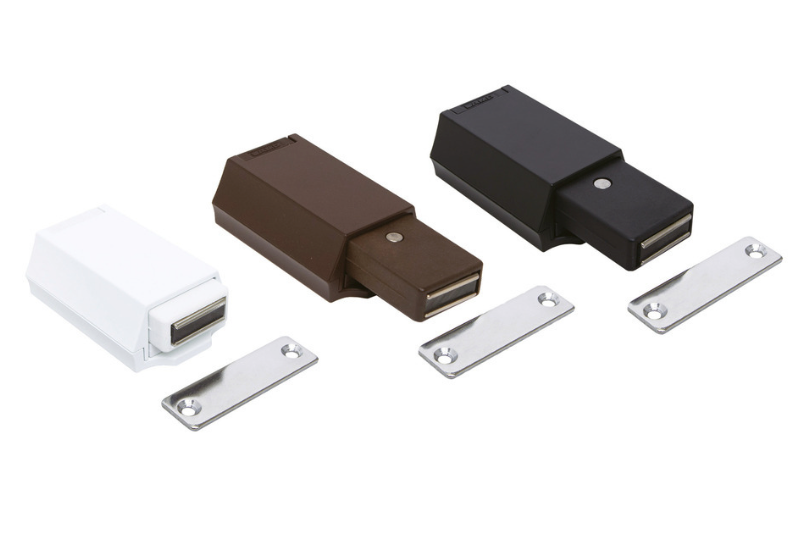

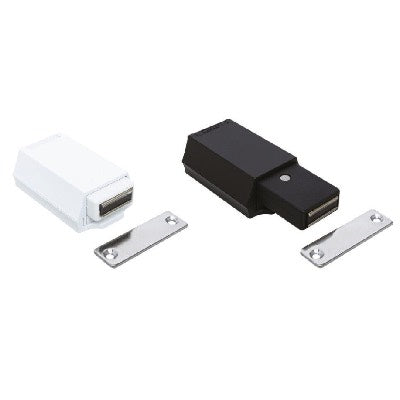

Finish: Black or White
Size: 55x39x22mm
Latch it will extend 25mm
